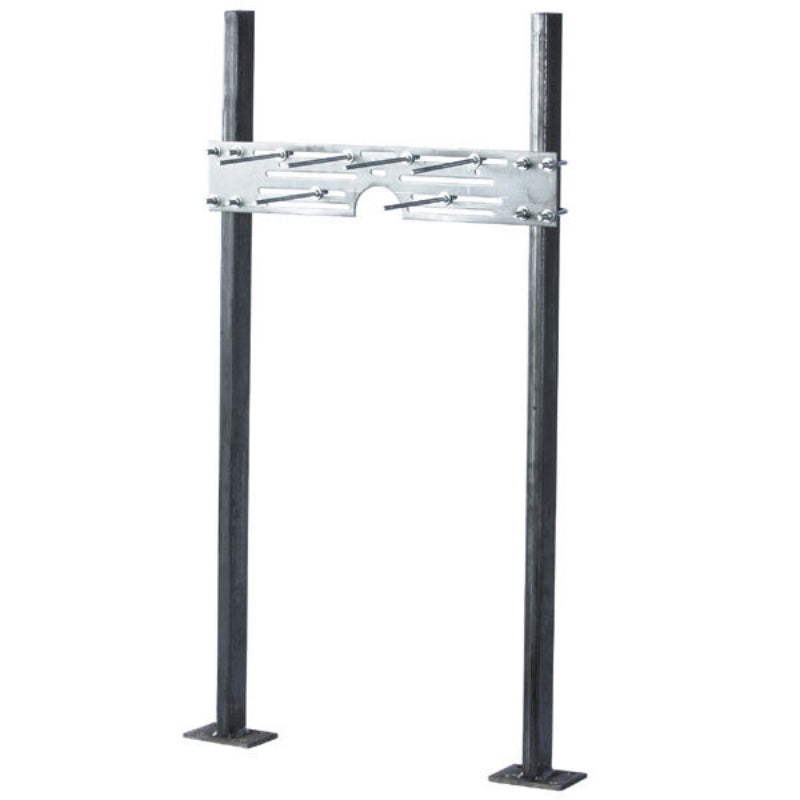

MIFAB MC-32 Double Plate Type Carrier System with 2 Uprights

MIFAB MC-32 Double Plate Type Urinal / Lavatory Carrier System with 2 Uprights.

Features & Benefits:

UNIVERSAL PLATE ASSEMBLY SECURED TO UPRIGHTS WITH “U” BOLTS TO PROVIDE EASE OF ROUGH-IN ADJUSTMENT
1/4” - 20 x 8” ALL THREADED PLATED RODS (6 PIECES) W / HARDWARE
BEARING PLATE WITH STUDS

*RECOMMENDED WITH MOST URINAL INSTALLATIONS

EXTRA HEAVY DUTY RECTANGULAR STEEL STRUCTURAL UPRIGHTS (2” x 1” x 1/8” WALL THICKNESS
HEAVY DUTY WELDED FEET THAT FIT WITHIN STANDARD STUD WALL CONSTRUCTION

Product Function:

Used to support wall-hung fixtures such as urinals and water coolers that are independent of the wall. Bottom bearing plate provides extra support for the fixture. Designed for use in conjunction with the fixture hangar plate supplied by the fixture manufacturer.

Product Specification:

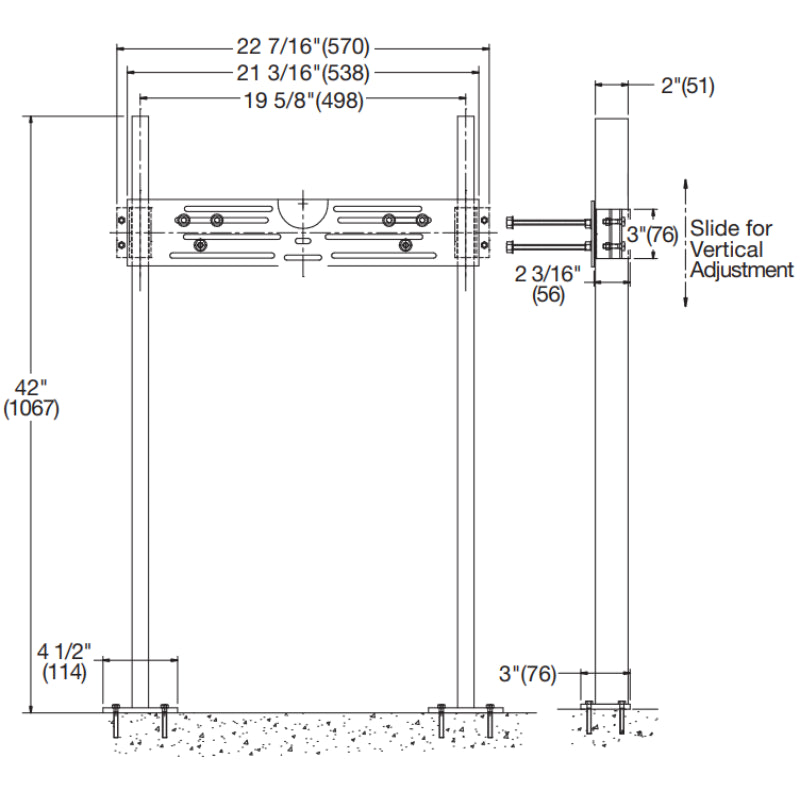

MIFAB® Series MC-32 hanger plate carrier with universal, adjustable, top support plate and bottom bearing plate. Complete with lacquered 2” x 1” x 1/8” thick structural steel uprights with 3” x 4 ½” welded steel feet and mounting hardware.

Product Notes:

FOOT SUPPORTS SHOULD BE SECURELY ANCHORED TO FLOOR WITH 1/2” (13) BOLTS AND ANCHORS BY OTHERS.

Technical Downloads:

MIFAB MC-32: Specification Submittal
MIFAB MC-32: Features & Benefits

Cross Reference:

JR SMITH: 0615 | 0617 | 0622 | 0624 | 0628 | 0635 | 0637 | 0642 | 0644 | 0648 | 0805 | 0830 | 0831 | 0834
WADE: 400-AM11 | 420-AM11 |
WATTS: CA-321 | CA-321-1 | CA-421-2 | CA-501-2 |
ZURN: Z1222 | Z1225
