MIFAB MC-32 Double Plate Type Urinal / Lavatory Carrier System with 2 Uprights.
Features & Benefits:
- UNIVERSAL PLATE ASSEMBLY SECURED TO UPRIGHTS WITH “U” BOLTS TO PROVIDE EASE OF ROUGH-IN ADJUSTMENT
- 1/4” - 20 x 8” ALL THREADED PLATED RODS (6 PIECES) W / HARDWARE
- BEARING PLATE WITH STUDS
- *RECOMMENDED WITH MOST URINAL INSTALLATIONS
- EXTRA HEAVY DUTY RECTANGULAR STEEL STRUCTURAL UPRIGHTS (2” x 1” x 1/8” WALL THICKNESS
- HEAVY DUTY WELDED FEET THAT FIT WITHIN STANDARD STUD WALL CONSTRUCTION
Product Function:
Used to support wall-hung fixtures such as urinals and water coolers that are independent of the wall. Bottom bearing plate provides extra support for the fixture. Designed for use in conjunction with the fixture hangar plate supplied by the fixture manufacturer.
Product Specification:

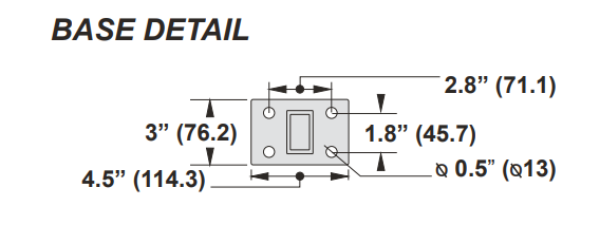

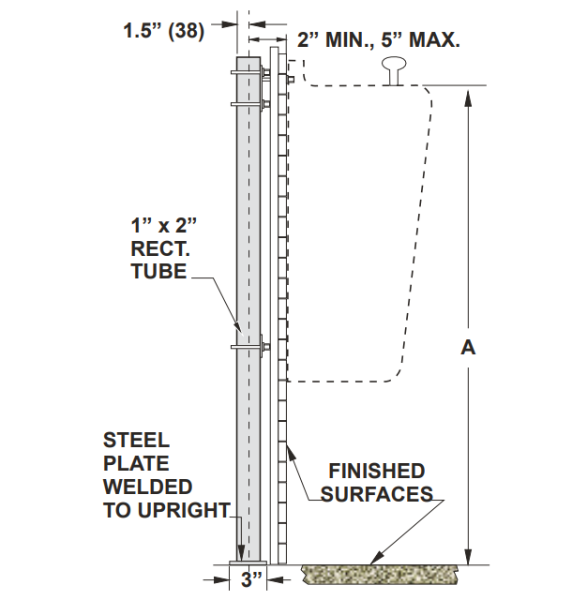

MIFAB® Series MC-32 hanger plate carrier with universal, adjustable, top support plate and bottom bearing plate. Complete with lacquered 2” x 1” x 1/8” thick structural steel uprights with 3” x 4 ½” welded steel feet and mounting hardware.
Product Notes:
- FOOT SUPPORTS SHOULD BE SECURELY ANCHORED TO FLOOR WITH 1/2” (13) BOLTS AND ANCHORS BY OTHERS.
Technical Downloads:
- MIFAB MC-32: Specification Submittal
- MIFAB MC-32: Features & Benefits
Cross Reference:
- JR SMITH: 0615 | 0617 | 0622 | 0624 | 0628 | 0635 | 0637 | 0642 | 0644 | 0648 | 0805 | 0830 | 0831 | 0834
- WADE: 400-AM11 | 420-AM11 |
- WATTS: CA-321 | CA-321-1 | CA-421-2 | CA-501-2 |
- ZURN: Z1222 | Z1225
