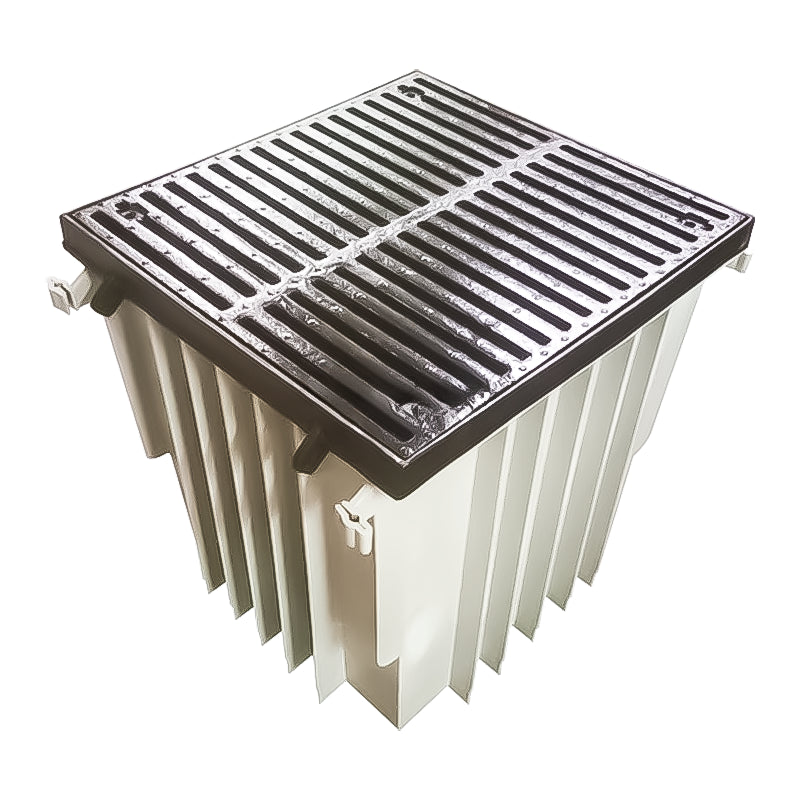

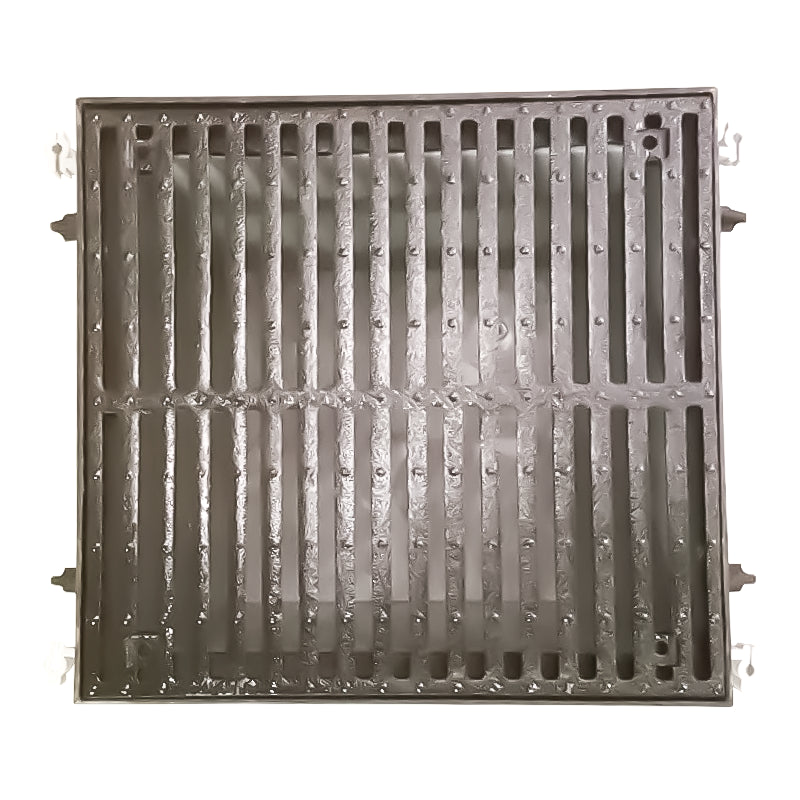

Zurn Z887-24-HD 24" x 24" x 24" Catch Basin w/ Heavy-Duty Frame

Zurn Z887-24-HD 24" x 24" x 24" Catch Basin w/ Heavy-Duty Frame.

Features & Benefits:

Saves labor up to 75% – lightweight durable polyethylene construction
Integral rebar clips for elevation set
Easily attached to trench system, or use individually
Heavy-duty frame
Multiple grate styles and load ratings
Easily add multiple inlets and/or outlets.

Engineering Specification:

Zurn Z887-24-HD Catch Basin shall be 23-1/4" [591mm] wide reveal x 24-5/8" [625mm] long and 24" [610mm] deep. Catch basin shall be made of 0% water absorbent High Density Polyethylene (HDPE). Shall mechanically lock into the concrete surround. Basin shall weigh less than 20.0 lbs. [9.1 kg]. Catch basin shall have rebar clips standard to secure basin in its final location. Shall be provided with standard DGC grates that lock down to frame. Zurn 22-1/4" [565mm] wide reveal Ductile Iron Slotted Grate conforming to ASTM specification A536-84, Grade 80-55-06. Ductile Iron grate is rated class C per the DIN EN1433 top load classifications. Supplied in 24" [608mm] nominal lengths with 11/16" [17]mm wide slots, and 2-1/2" [64mm] bearing depth. Grate has an open area of 164.00 sq. in per ft. The 1/4" [6mm] thick Heavy-Duty Frame Assembly conforms to either ASTM specification A36 or A536-84, with 4 - 4" [102mm] long concrete anchors per basin. The frame is supplied with a powder coated finish. All welds must be performed by a certified welder per ASTM standard AWS D1.1. Frames Shall be produced in the U.S.A.

Technical Documentation:

Zurn Z887-24-HD Catch Basin Specification Submittal: Click Here.

Zurn Z887-24-HD Catch Basin Installation Instructions: Click Here.

Zurn Z887-24-HD Catch Basin DWG Drawing: Click Here.

Zurn Z887-24-HD Catch Basin into Z886 Fabrication Instructions: Click Here.

Zurn Z887-24-HD Catch Basin Grating Load Classifications: Click Here.
