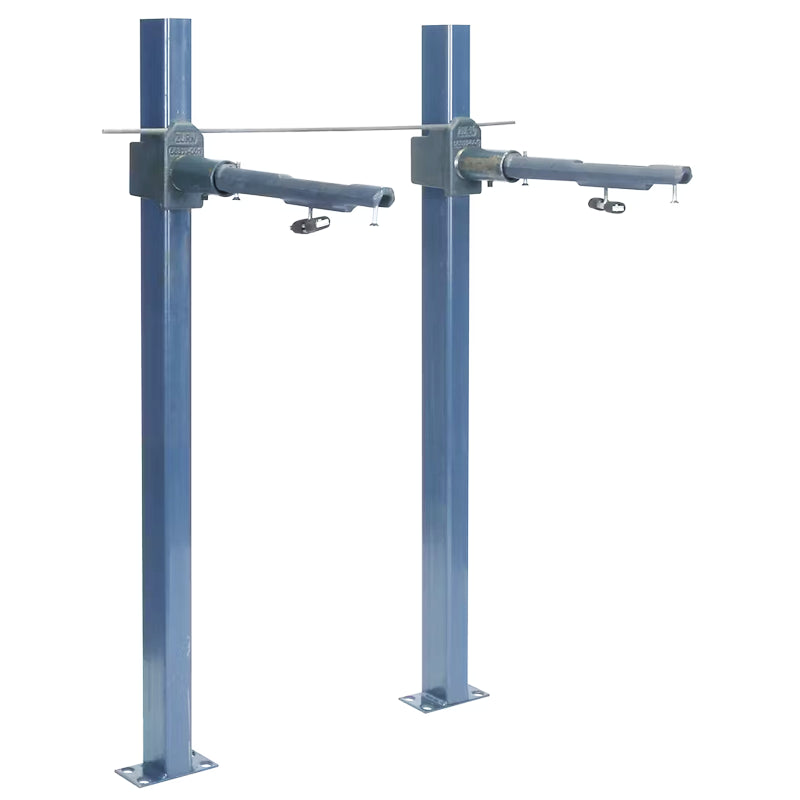

Zurn Z1231 Concealed Arm Carrier for Wall Mount Lavatories Engineering Specification: ZURN Z1231 Lavatory support system with concealed arms. Complete with Dura-Coated rectangular steel uprights with welded feet, cast iron adjustable headers, concealed arms, steel sleeves, alignment truss, and mounting fasteners.

Special Note:

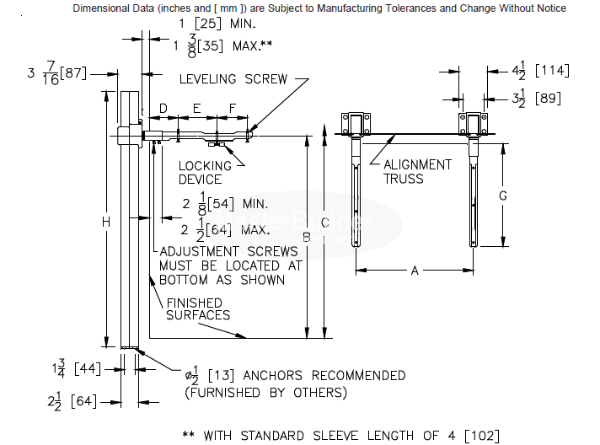

Dimensional data for letter dimensions depends upon fixture type and manufacturer. Different fixtures require different arm styles. See Zurn Carrier/Fixture Rough-In information at www.zurn.com for specific rough-in dimensions.

Features & Benefits:

Concealed arm carrier system	Uses floor-mounted upright
For wall hung lavatories	250 lb. load capacity

Technical Documentation:

Zurn Z1231 Concealed Arm Carrier for Wall Mount Lavatories Specification Submittal: Click Here.

Zurn Z1231 Concealed Arm Carrier for Wall Mount Lavatories Suffix Option Specification Submittal Sheets: Click Here.

Zurn Z1231 Concealed Arm Carrier for Wall Mount Lavatories Installation Instructions: Click Here.

Zurn Z1231-1 Concealed Arm Carrier for Wall Mount Lavatories Typical Installation: Click Here.

Zurn Z1231-79 Concealed Arm Carrier for Wall Mount Lavatories Typical Installation: Click Here.

Zurn Z1231-80 Concealed Arm Carrier for Wall Mount Lavatories Typical Installation: Click Here.

Zurn Z1231-81 Concealed Arm Carrier for Wall Mount Lavatories Typical Installation: Click Here.

Zurn Z1231 Concealed Arm Carrier for Wall Mount Lavatories DWG Drawing File: Click Here.

Zurn Z1231 Concealed Arm Carrier for Wall Mount Lavatories Repair Parts: Click Here.

Zurn Z1231 Concealed Arm Carrier for Wall Mount Lavatories Truss Rod Assembly Instructions: Click Here.

Zurn Z1231 Concealed Arm Carrier for Wall Mount Lavatories Engineering Guide: Click Here.

Zurn Z1231 Concealed Arm Carrier for Wall Mount Lavatories ECMC Case Study: Click Here.

Cross Reference:

Zurn Z1231 Concealed Arm Carrier for Wall Mount Lavatories Crosses:

Ancon / Watts CA-411, CA-411-WC.
JR Smith 0700, 700, 0700-27-M31.
Mifab MC-42.
