MIFAB MC-41 Lavatory Fixture Carrier with Adjustable Concealed Arms

MifabSKU: MIF-MC-41

Price:
Sale Price$971.99 CAD
Description

MIFAB MC-41 Lavatory Fixture Carrier with Adjustable Concealed Arms.

Function:

Used to support off-the-floor fixtures so that the vertical load bearing components are concealed within the wall. The fixture carrier has no contact with the finished floor inside of the room.

Product Specification:

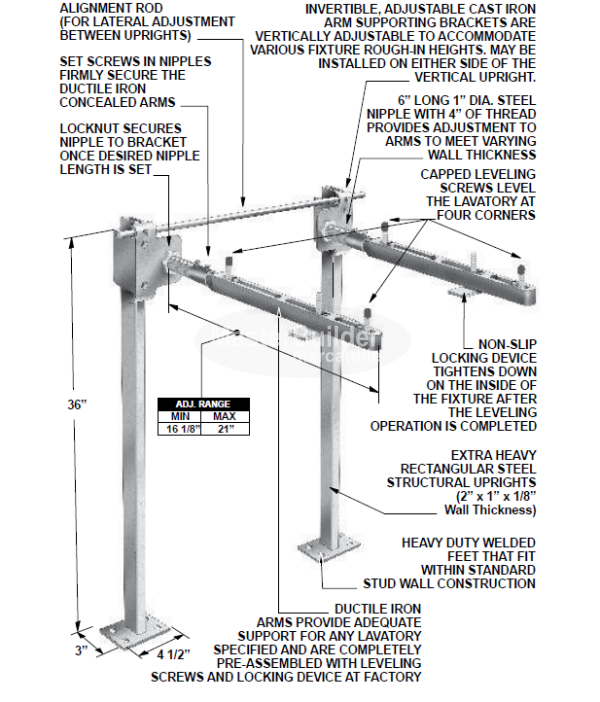

MIFAB® Series MC-41 floor mounted concealed arm lavatory carrier with lacquered, adjustable, ductile iron concealed support arms. Complete with lacquered cast iron invertible and adjustable arm supporting brackets, adjustable steel nipples with locknut and set screws, alignment rod, two lacquered 2” x 1” x 1/8” thick structural steel uprights with 3” x 4 ½” welded steel feet and fixture leveling and locking hardware.

Product Notes:

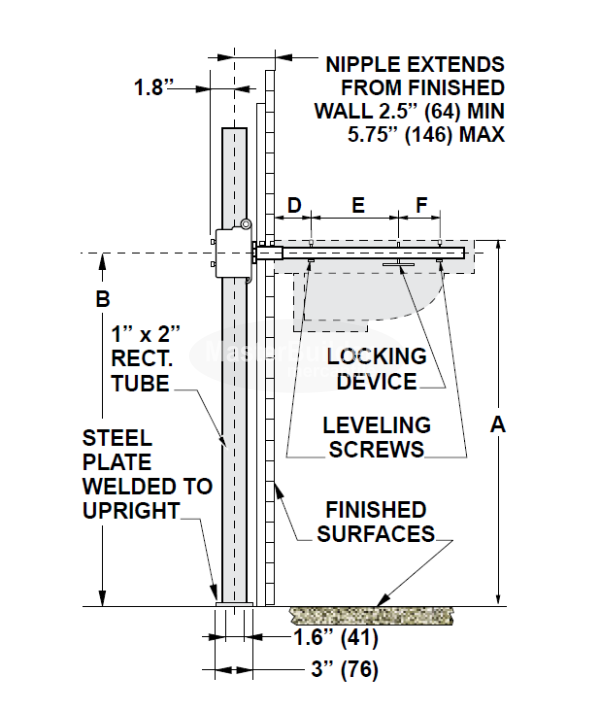

  • Adjustment Range: 16-1/8" Min. to 21" Max.
  • Meets ANSI/ASME fixture carrier standard A112.6.1M-97

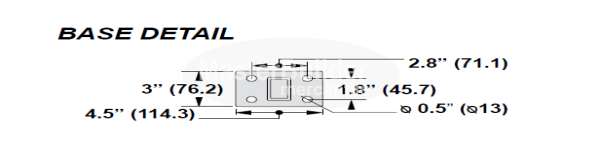

  • FOOT SUPPORTS SHOULD BE SECURELY ANCHORED TO FLOOR WITH 1/2” (13) BOLTS AND ANCHORS BY OTHERS

Technical Downloads:
