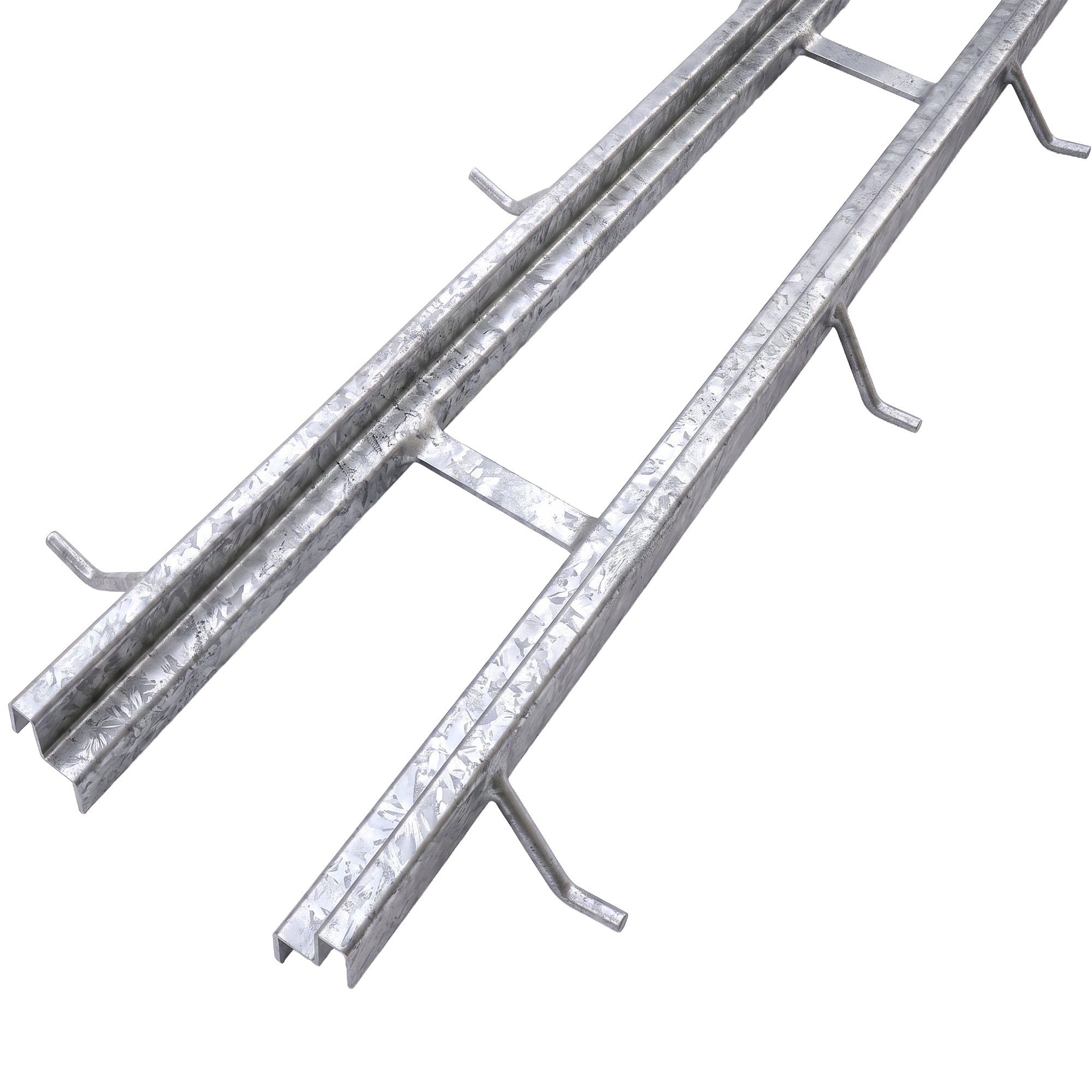

Zurn Z886-HDG Heavy-Duty Galvanized Steel Frame for Zurn Z886 Presloped Trench Drain

ZurnSKU: ZUR-P886-HDG

Price:
Sale Price$830.99 CAD
Stock:
Contact for Availability
Description

Zurn Z886‑HDG | Heavy‑Duty Galvanized Steel Frame for Z886 Trench Drain

Product Overview

The Zurn Z886-HDG is a heavy-duty galvanized steel frame designed for Zurn Z886 pre-sloped trench drain systems. Constructed from 0.105″ (2.66 mm) thick ASTM A36 steel (galvanizing per ASTM A123), with integral grate lockdown bars and supplied with ten 4″ concrete anchors per 80″ section, this U.S.-made frame ensures strength, stability, and secure installation.


Key Features & Benefits

  • Industrial-Grade Metalwork
    Built to ASTM A36 and A123 specifications with certified AWS D1.1/D1.6 welds, delivering high strength and corrosion resistance via hot-dip galvanizing.

  • Secure Grate Lockdown
    Integrates grate lockdown bars into the frame to prevent displacement under heavy loads or thermal movement.

  • Easy Installation
    Comes with concrete anchors and mechanical interlocking design for precise alignment and fast installation with minimal rework.

  • Made in the USA
    Fabricated domestically with certified welders, offering consistent quality and reliable sourcing.


Technical Specifications

Specification Details
Material Galvanized steel, conforming to ASTM A36/A123
Frame Thickness 0.105″ (2.66 mm)
Anchors Ten 4″ concrete anchors per 80″ section
Weld Standards Certified welds per AWS D1.1/D1.6
Grate Bars Integral lockdown bars to secure grates
Manufactured In United States
Includes Frame only (channel and grates sold separately)

Why Choose the Z886‑HDG Frame

  • Built for Heavy Use: Galvanized steel resists corrosion and stands up to heavy-duty loads.

  • Safe & Stable: Grate lockdown ensures walking surfaces remain secure—essential for pedestrian and light traffic zones.

  • Installation-Ready: Anchors and interlocking systems simplify setup and maintain proper channel alignment.

  • U.S.-Made Quality: Manufactured to strict standards with domestic materials and certifiable processes.


Frequently Asked Questions

Q: Does this include trench channel or grates?
A: No. This listing is for the galvanized frame assembly only; channels and grates are sold separately.

Q: Are anchoring components included?
A: Yes—each 80″ frame section includes ten 4″ concrete anchors as specified.

Q: What welding standards apply?
A: All welds are performed by certified welders under AWS D1.1 and D1.6 standards for structural integrity.
