Zurn Z882-HD-8209N 12" Wide Non-Sloped Trench Drain w/ Steel Frame, #9N Section

  • $943.00
  • Save $105


Zurn Z882-HD-8209N 12" Wide Non-Sloped Trench Drain w/ Steel Frame, #9N Section

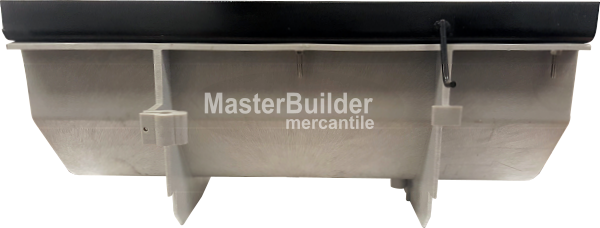

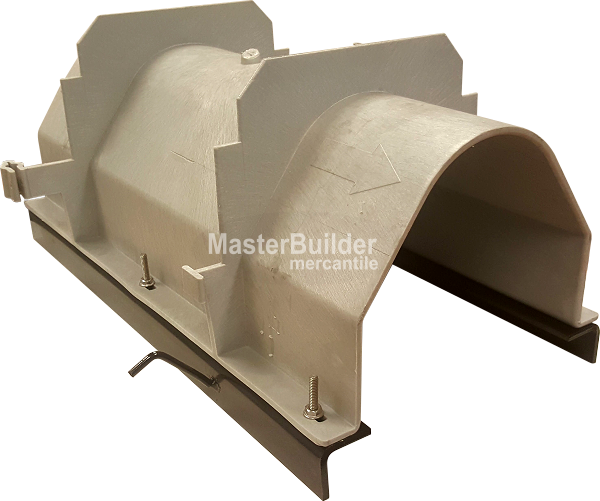

Zurn Z882-HD-8209N 12" Wide Non-Sloped (Neutral) Trench Drain w/ Steel Frame, #9N Section.

Features & Benefits:

  • Saves labor up to 75%.
  • Lightweight for easier installation.
  • Integral rebar clips for easy elevation setting.
  • 4-corner grate lock down for dynamic loading situations.
  • Mechanical interlocking connections.
  • USA configurable.
  • Various grating options available.
  • Non-porous HDPE material.
  • Easily cut and modified to suit site layout requirements.

Engineering Specification:

Zurn Z882 Channels shall be 96" [2438mm] long, 12" [305mm] wide reveal and have a 9-1/4" [235mm] throat. Modular channel sections shall be made of 0% water absorbent High Density Polyethylene (HDPE). Shall have a positive mechanical connection between channel sections that will not separate during the installation and shall mechanically lock into the concrete surround every 12" [305mm]. Channels shall weigh less than 5.05 lbs. [2.29kg] per linear foot, have a smooth, 3" [76mm] radiused self cleaning bottom with a Manning’s coefficient of 0.009 and 1.04% or neutral 0% built in slope. Channels shall have rebar clips standard to secure trench in its final location. The 1/4" [6mm] thick Heavy-Duty Carbon Steel Frame Assembly conforms to ASTM specification A36 with 10 - 4" [102mm] long concrete anchors per 96" [2438mm]. Grate lockdown bars are to be integral to the frame. The frame is supplied with a powder coated finish. All welds must be performed by a certified welder per ASTM standard AWS D1.1. Frames Shall be produced in the U.S.A.

Notes:

  • Grating, outlets, connectors and accessories all sold separately.

Technical Documentation:

Zurn Z882 Specification Submittal
Zurn Z882 Installation Instructions
Zurn Z882 Sales Sheet
Zurn Z882 Flyer
Zurn Z882 Grates PDF
Zurn Z882 End/Bottom Outlet Details
Zurn Z882 Joint Connector Detail
