Zurn Z742-2SP 8" Light-Duty Top Drain w/ Integral Double Wall Trap, Side Outlet, Backwater Valve

  • $220.00
  • Save $467


Zurn Z742-2SP 8" Light-Duty Top Drain w/ Integral Double Wall Trap, Side Outlet, Backwater Valve

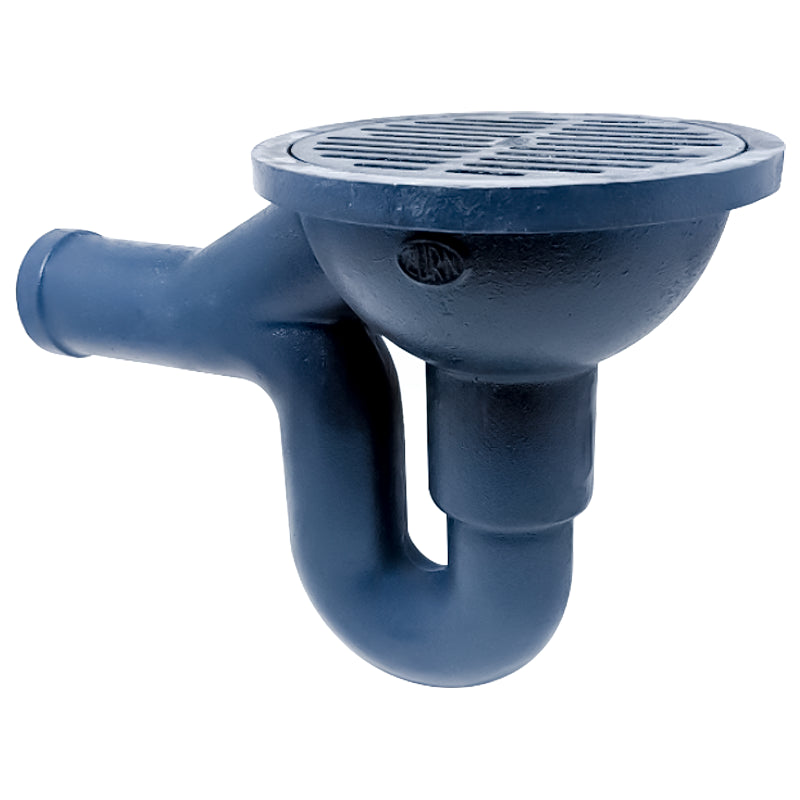

Zurn Z742-2SP 8-1/4" Light-Duty Top Drain w/ Integral Double Wall Trap, 2" Spigot Side Outlet, Ball Float-Type Backwater Valve

Features & Benefits:

  • 2" [51mm] Spigot Connect Size / Type.
  • 8-1/4" [210mm] Diameter.
  • Dura-Coated cast iron body with cast iron, polished bronze, or polished nickel bronze top available.
  • Light-Duty.
  • Integral double wall trap.
  • Side outlet.
  • Integral ball float type backwater valve.

Engineering Specification:

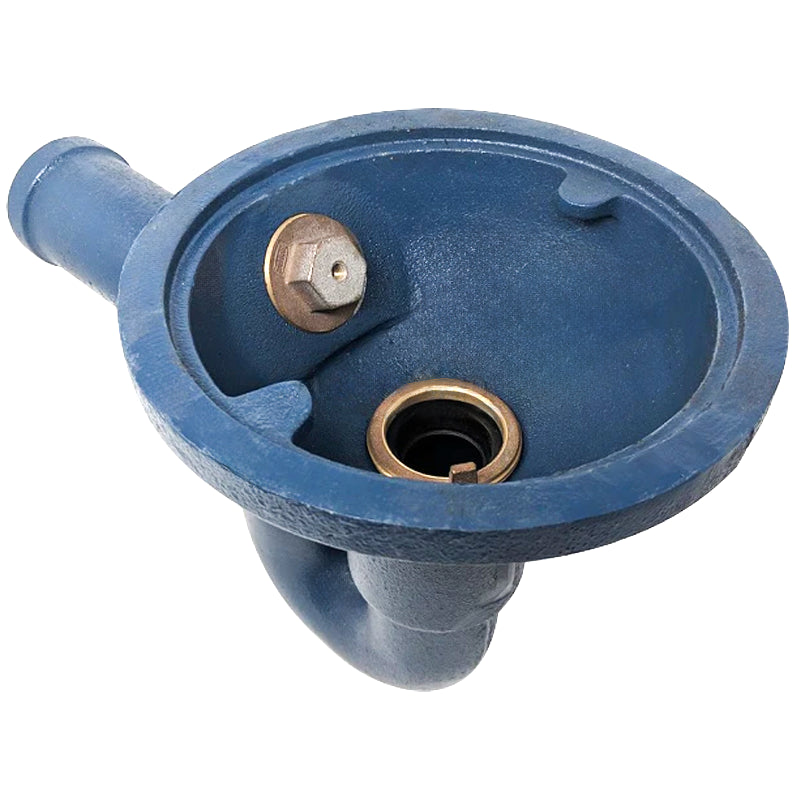

  •  ZURN Z742 8-1/4" [210mm] Diameter top drain, Dura-Coated cast iron body with integral double wall trap and side outlet, with ball float type backwater valve, internal bronze cleanout and light-duty loose slotted grate.
    • Z742 = D.C.C.I. Body and Top
    • ZB742 = D.C.C.I Body w/ Polished Bronze Top
    • ZN742 = D.C.C.I Body w/ Polished Nickel Bronze Top

Technical Documentation:

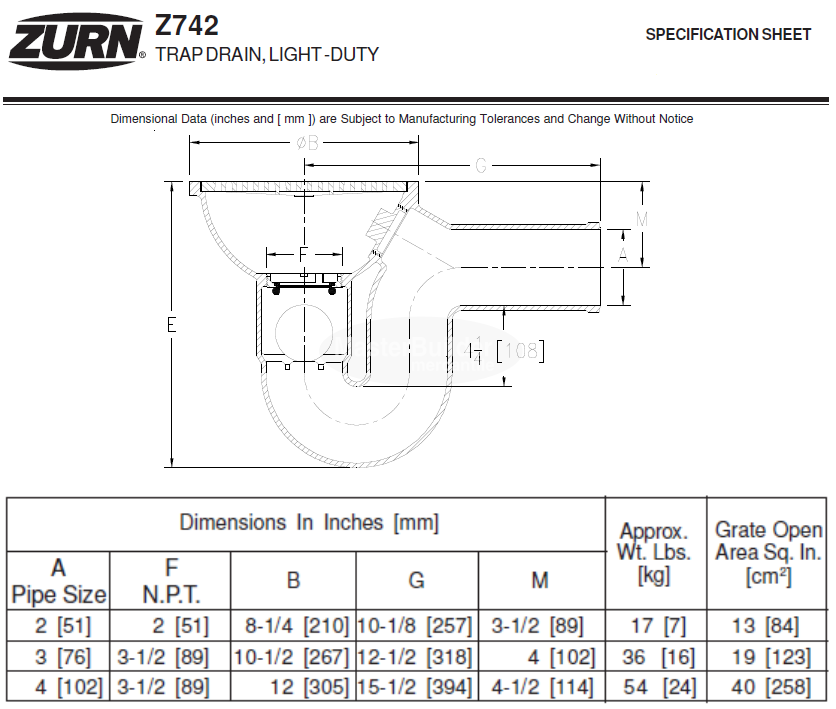

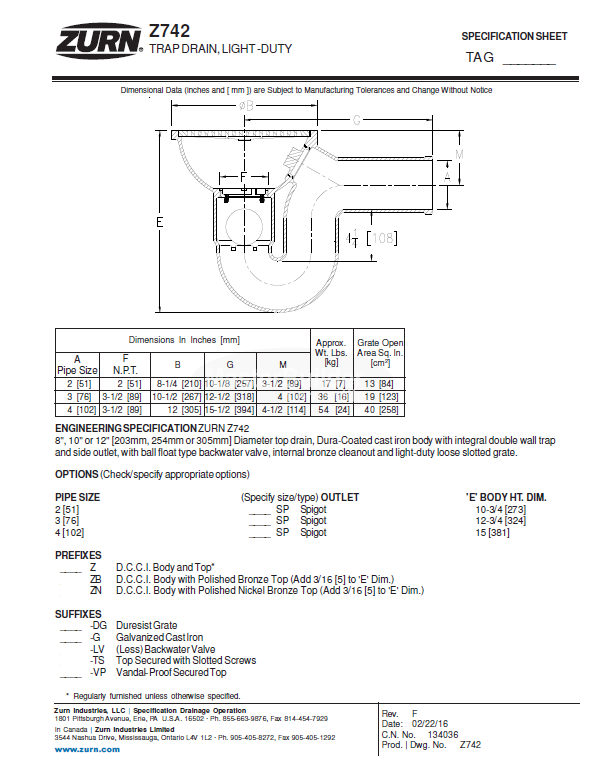

Zurn Z742-2SP 8" Light-Duty Top Drain Specification Submittal: Click Here.

Zurn Z742-2SP 8" Light-Duty Top Drain DXF Drawing File: Click Here.
