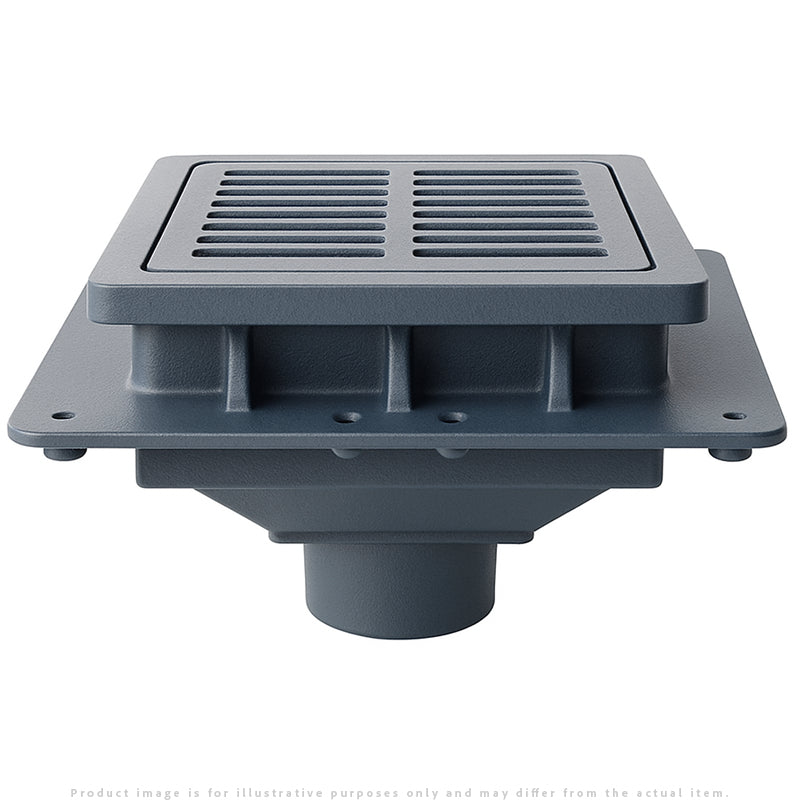

Zurn Z675 13" Extra-Heavy-Duty Drain with Suspended Sediment Bucket.

Product Overview

The Zurn Z675 13" Extra-Heavy-Duty Floor Drain is engineered for demanding commercial, industrial, and institutional environments. Built with a Dura-Coated cast iron body and a Duresist extra-heavy-duty slotted grate, it provides superior load performance, long-term durability, and efficient debris capture with its integrated suspended sediment bucket.

Features & Benefits

• Duresist extra-heavy-duty slotted grate for extreme load handling
• Dura-Coated cast iron body for enhanced corrosion resistance
• Suspended sediment bucket for effective debris capture and easy cleaning
• Four-position vertically adjustable frame for precise installation
• Multiple outlet configurations available to match piping requirements

Specifications

• Model: Zurn Z675
• Top Size: 13" (330 mm) square
• Grate Open Area: 72 sq. in. (465 cm²)
• Body Material: Dura-Coated Cast Iron
• Sediment Bucket: Included, suspended design
• Outlet Types: Inside Caulk, Inside Gasket, Threaded, No-Hub, Neo-Loc
• Body Heights: 7-1/8" (IC/IG/IP), 7-5/8" (NL)
• Pipe Sizes: 3", 4", 6"
• Approx. Weight: 110 lb (50 kg)

Installation Tips

• Use the adjustable frame to achieve a level finish with floor surfaces.
• Confirm waterproofing membrane compatibility when applicable.
• Follow coupling torque requirements for no-hub connections.
• Clean the sediment bucket regularly to maintain proper flow.

FAQs

Q1: What applications is the Z675 designed for?
It is ideal for heavy-duty commercial and industrial environments requiring extreme load resistance.

Q2: Is a sediment bucket included?
Yes, the Z675 includes a suspended sediment bucket for debris capture.

Q3: What outlet types are available?
The drain can be configured for Inside Caulk, Inside Gasket, Threaded, No-Hub, or Neo-Loc outlets.

Q4: Can the drain height be adjusted?
Yes. The four-position frame allows precise vertical adjustment.

Q5: What is the grate material?
The grate is a Duresist extra-heavy-duty slotted grate built for extreme service loads.
