Zurn Z665 12" Wide Linear Cast Iron Modular Trench Drain.
Features & Benefits:
- Dura-Coated cast iron construction
- Cast iron, polished bronze, or polished nickel bronze tops available
- Stack multiple section for long run lengths
Engineering Specification:
ZURN Z665 12” [305mm] Wide top modular trench drain, Dura-Coated cast iron deep sump body with bottom outlet. Both 12” [305mm] long outlet module and extension modules are complete with integral seepage pan and heavy-duty loose slotted grate.
Finish Options (Prefixes):
- Z665 (D.C.C.I. Body and Top*)
- ZB665 (D.C.C.I Body w/ Polished Bronze Top (Add 1/8 [3] to ‘E’ and 2 [51] Dim.))

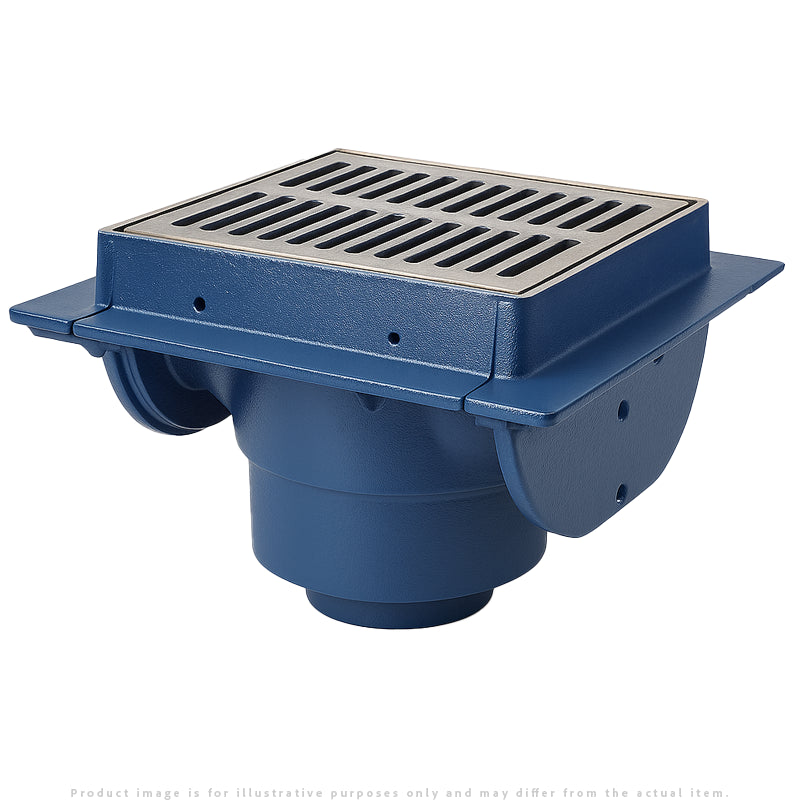

- ZN665 (D.C.C.I Body w/ Polished Stainless Steel Top (Add 1/8 [3] to ‘E’ and 2 [51] Dim.))
Technical Downloads:
- Zurn Z665: Specification Submittal
- Zurn Z665: Installation Instructions
- Zurn Z665: Repair Parts
