Zurn Z611 / ZB611 / ZN611 | 9″ Square Medium‑Duty Floor Drain
Product Overview

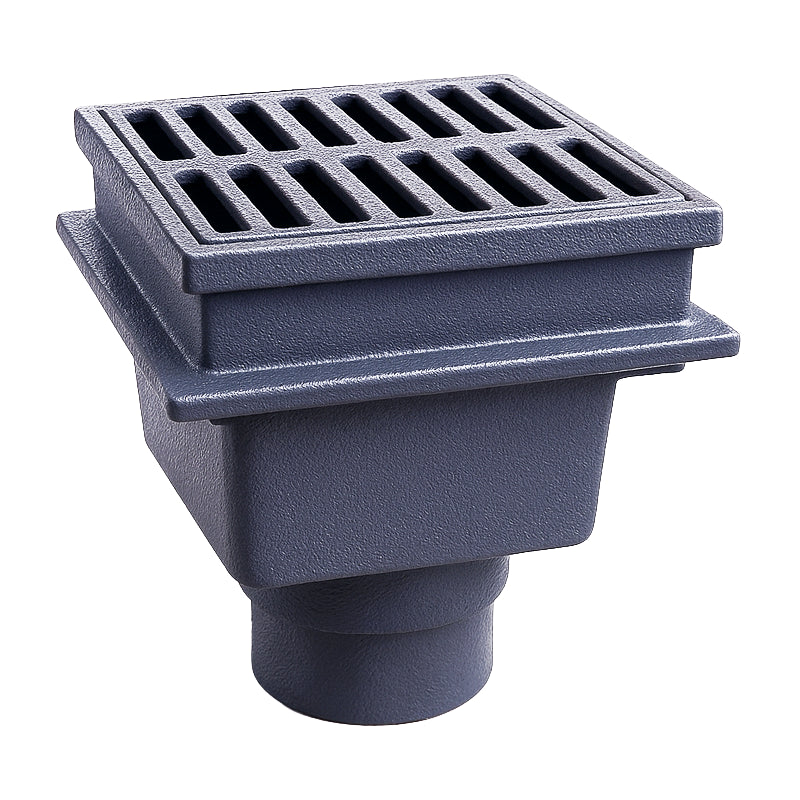

The Zurn Z611 series offers a versatile, durable medium‑duty square floor drain designed for commercial and light industrial applications. Available in three finish options—Z611 (cast iron), ZB611 (polished bronze), and ZN611 (polished nickel bronzed)—the drain features a Dura‑coated cast‑iron body, bottom outlet, seepage pan, and a convenient combination membrane flashing clamp and frame. A suspended polypropylene sediment bucket ensures easy maintenance and reliable debris capture.
Key Features & Benefits
-
Premium Body & Top Options
Includes a durable, corrosion‑resistant Dura‑coated cast‑iron body; choose from matching cast-iron top, polished bronze, or polished nickel bronze finishes. -
Efficient Seepage Management
Built-in seepage pan gathers stray moisture below the floor surface, preventing sub-surface damage. -
Integrated Membrane Clamp & Frame
Simplifies installation and retrofit by securing both the drain and waterproofing membrane in one step. -
Easy Access Sediment Bucket
Suspended polypropylene bucket captures debris and allows hassle‑free removal and cleaning. -
Contractor‑Friendly Design
Zurn’s patented solutions reduce installation time and eliminate rework by streamlining assembly steps.
Technical Specifications
| Feature | Specification |
|---|---|
| Drain Size | 9″ (229 mm) square opening |
| Body Material | Dura‑coated cast iron |
| Top Finish Options | Cast iron, polished bronze, nickel bronze |
| Outlet | Bottom outlet |
| Seepage Pan | Integral |
| Frame & Clamp | Combination frame for slotted grate & membrane |
| Sediment Bucket | Suspended polypropylene |
| Grate Type | Medium‑duty slotted cast‑iron grate |
Why Choose the Z611 Series?
-
Durability & Style: Dura-coated body plus optional high-end finishes enhance both performance and aesthetics.
-
Reduced Labor & Time: Integrated clamp/frame design streamlines installation and cuts down on roofing or flooring rework.
-
Simplified Maintenance: The accessible sediment bucket allows easy cleanout to maintain optimal drain flow.
-
Reliable Sealing: Seepage pan and membrane clamp ensure secure waterproofing and reduce leakage risk.
Frequently Asked Questions
Q: Can the bronze tops be used for visible indoor drains?
A: Yes. Polished bronze and nickel bronze tops offer a refined look suitable for lobbies and upscale commercial interiors.
Q: How is debris removed?
A: Lift out the suspended polypropylene sediment bucket for quick cleaning—no tools needed.
Q: Will it work with thinner flooring or membranes?
A: The adjustable membrane clamp and frame make the drain compatible with a variety of flooring types.
