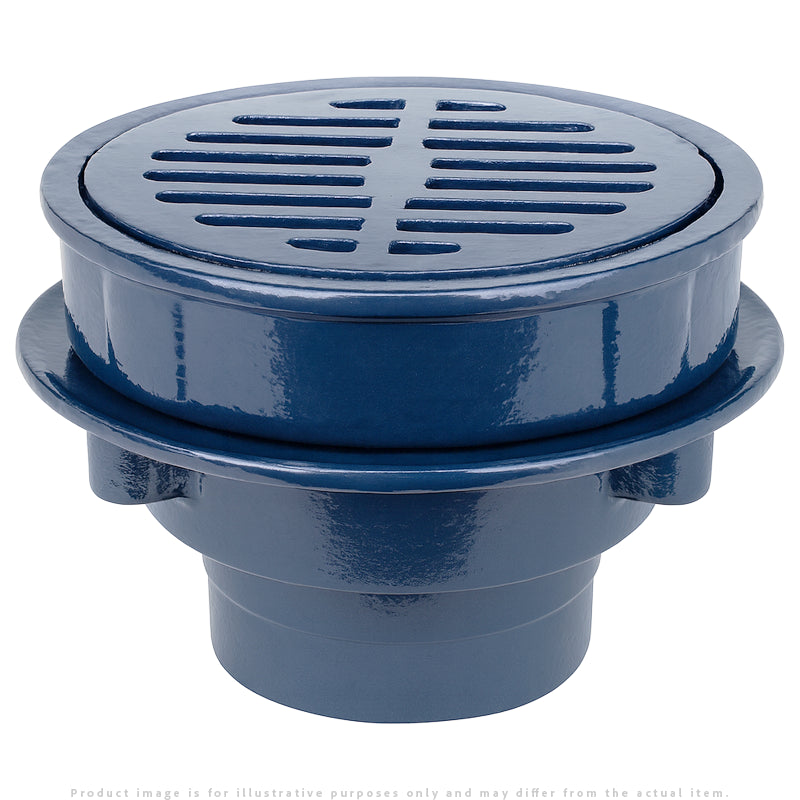

Zurn Z555 8" Heavy-Duty Floor Drain with Deep Anti-Tilt Grate

Product Overview

The Zurn Z555 Heavy-Duty 8-inch Floor Drain is engineered for commercial, industrial, and institutional environments requiring long-lasting durability. With a Dura-Coated cast iron body, seepage pan, membrane flashing clamp, and a deep anti-tilt cast iron grate, this drain delivers exceptional strength and dependable performance. Ideal for concrete floors, mechanical rooms, parking decks, and high-impact areas.

Features & Benefits

• Heavy-duty construction for demanding environments
• Deep anti-tilt cast iron grate for superior stability
• Dura-Coated cast iron body for corrosion resistance
• Integrated membrane flashing clamp for waterproofing protection
• Available in cast iron or polished nickel bronze (ZN555)
• Compatible with 2", 3", 4", and 6" outlet sizes

Specifications

• Model: Zurn Z555
• Diameter: 8" (203 mm)
• Body: Dura-Coated Cast Iron
• Grate: Cast Iron or Polished Nickel Bronze (ZN555)
• Outlet Options: 2", 3", 4", 6"
• Open Area: 11 sq. in.
• Weight: 17 lbs
• Connection Types: Inside Caulk, Inside Gasket, Threaded, No-Hub, Neo-Loc

Installation Tips

• Confirm outlet type compatibility prior to installation.
• Ensure membrane flashing is properly clamped to prevent leakage.
• Maintain correct floor slope toward the drain for optimal flow.
• Routinely remove debris to preserve drainage performance.
• Verify grate seating and secure fastening in high-traffic areas.

Frequently Asked Questions

Q: What environments is the Z555 best suited for?
A: Heavy-duty industrial, commercial, and mechanical spaces including warehouses and parking structures.

Q: Is this grate anti-tilt?
A: Yes. The Z555 includes a deep anti-tilt grate designed for heavy-load environments.

Q: Are 6" outlets available?
A: Yes. Specify the 6" No-Hub outlet option when ordering.

Q: Can I upgrade to a nickel bronze top?
A: Yes. The ZN555 variant features a polished nickel bronze top.

Q: What maintenance is required?
A: Regular cleaning and debris removal are recommended to maintain performance.
