Description

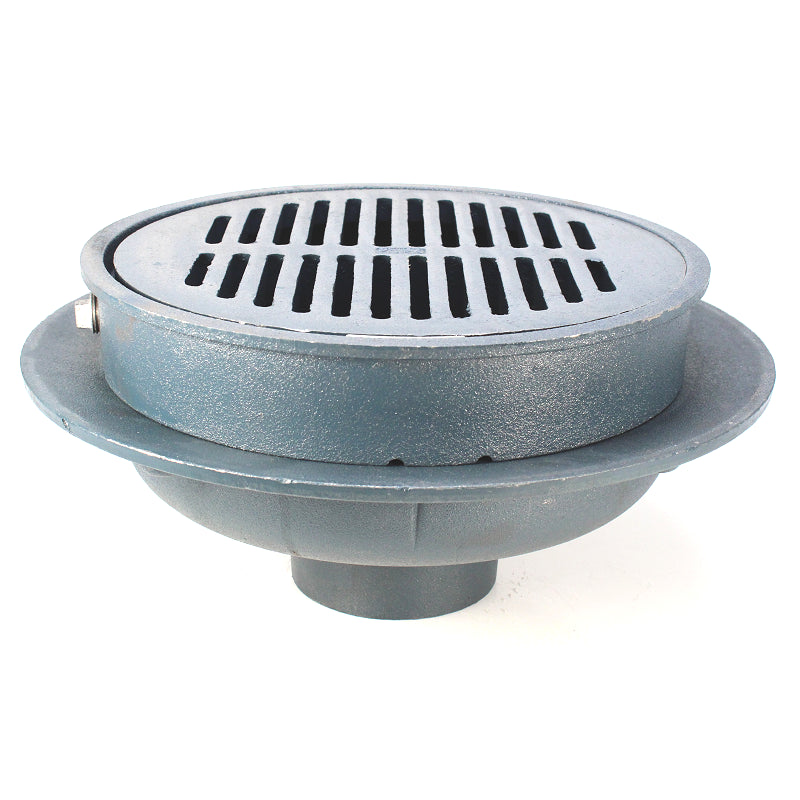

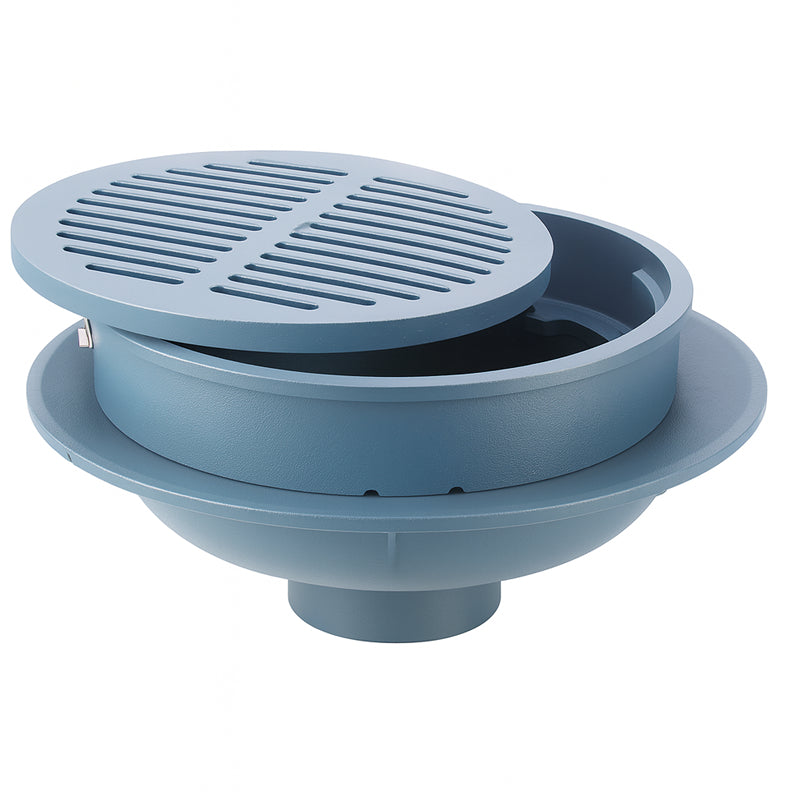

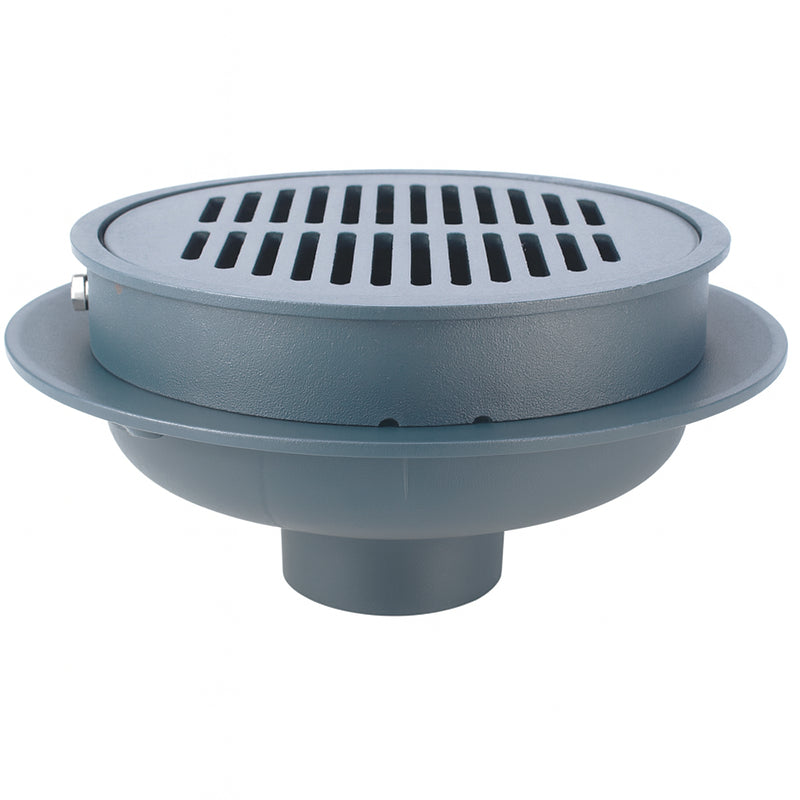

Zurn Z541 12" Heavy-Duty Area Drain
Product Overview

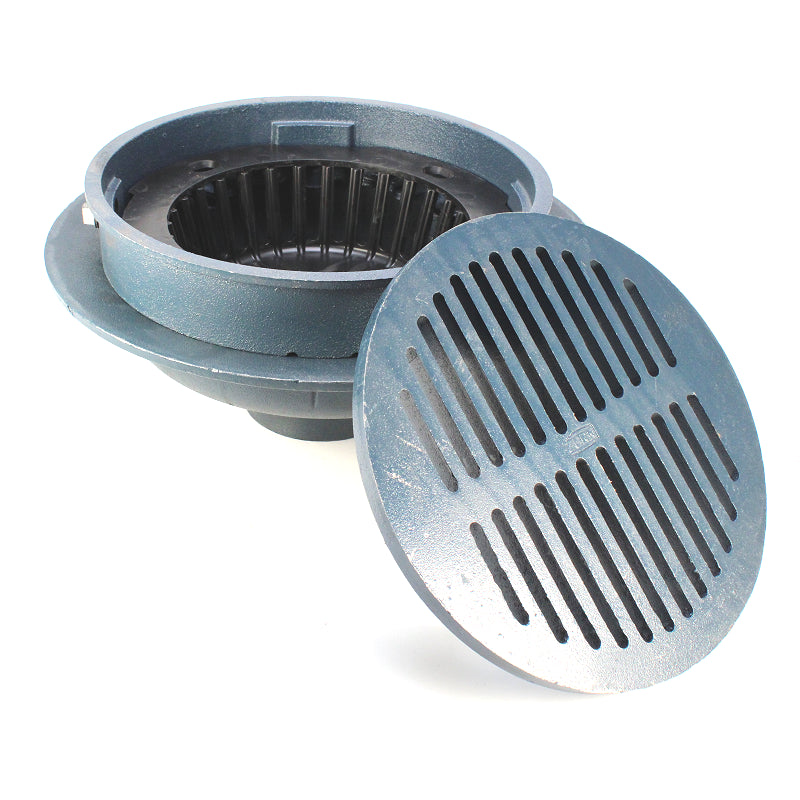

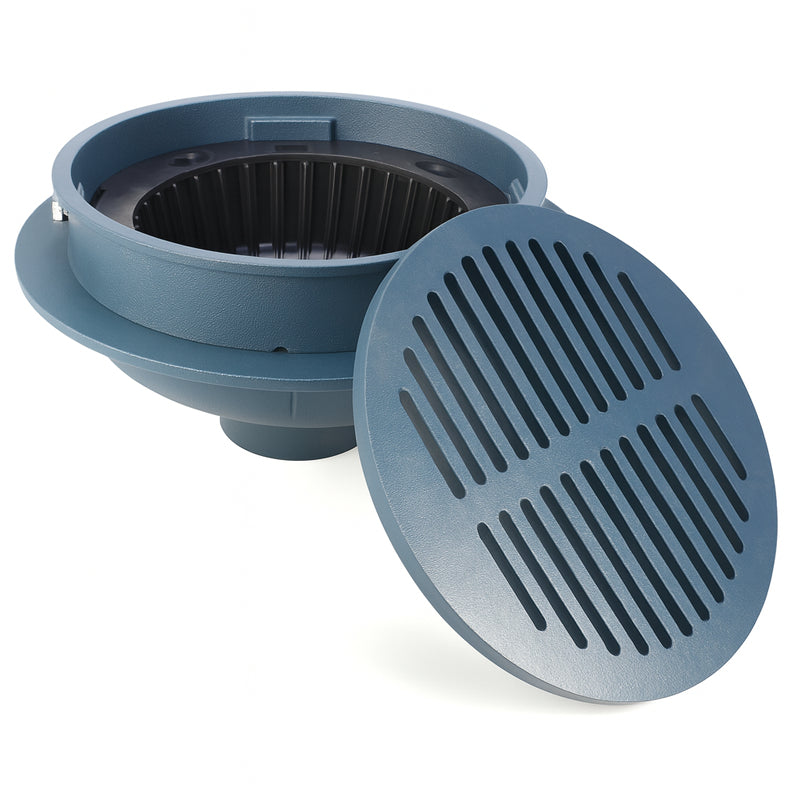

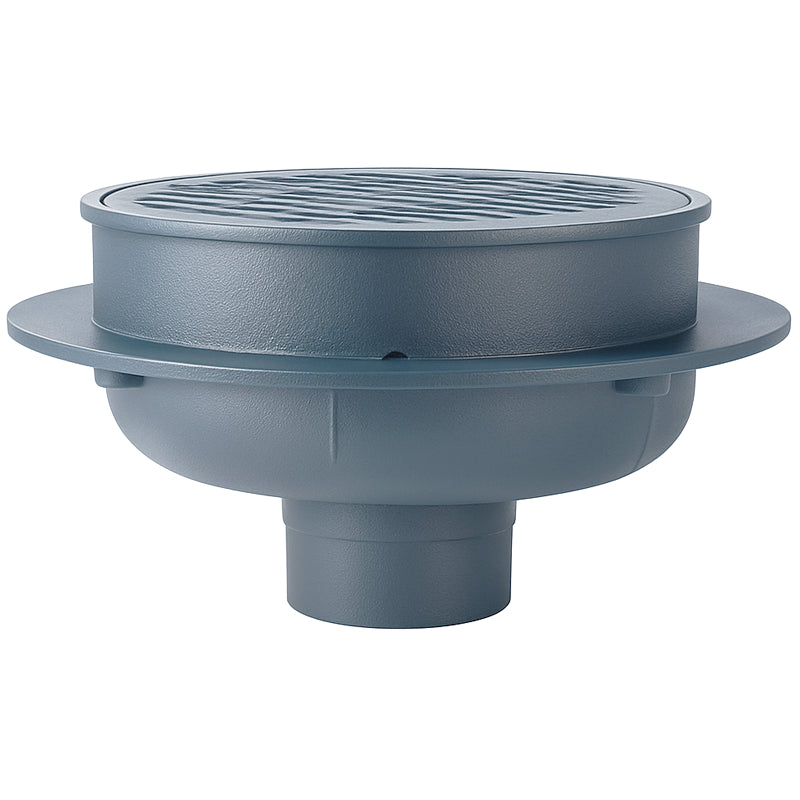

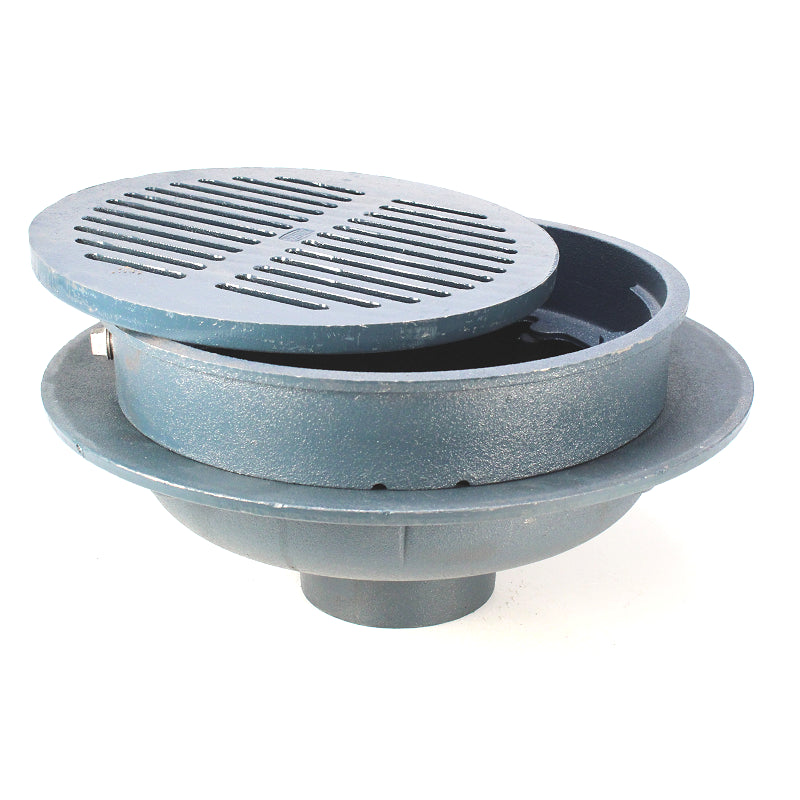

The Zurn Z541 Heavy-Duty Area Drain is designed for demanding commercial and industrial applications where durability and long-term performance are essential. With a 12-1/4" diameter top, this system includes a Dura-Coated cast iron body, bottom outlet, seepage pan, membrane flashing clamp, and heavy-duty anti-tilt slotted Duresist grate. An integrated trap primer connection and optional suspended polypropylene sediment bucket further enhance system reliability.
Features & Benefits
- Dura-Coated cast iron body for strength and corrosion resistance

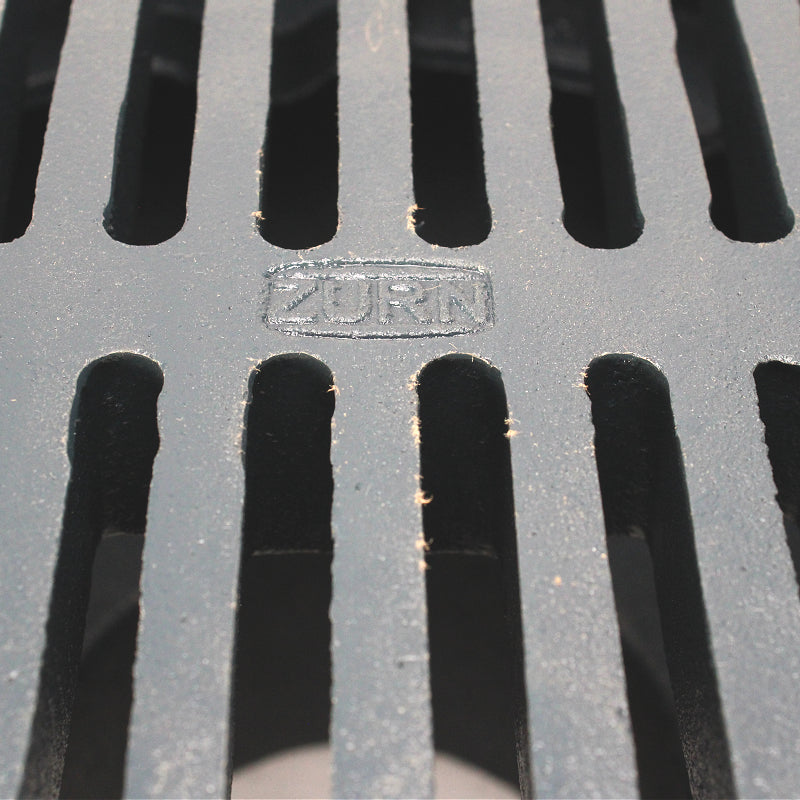

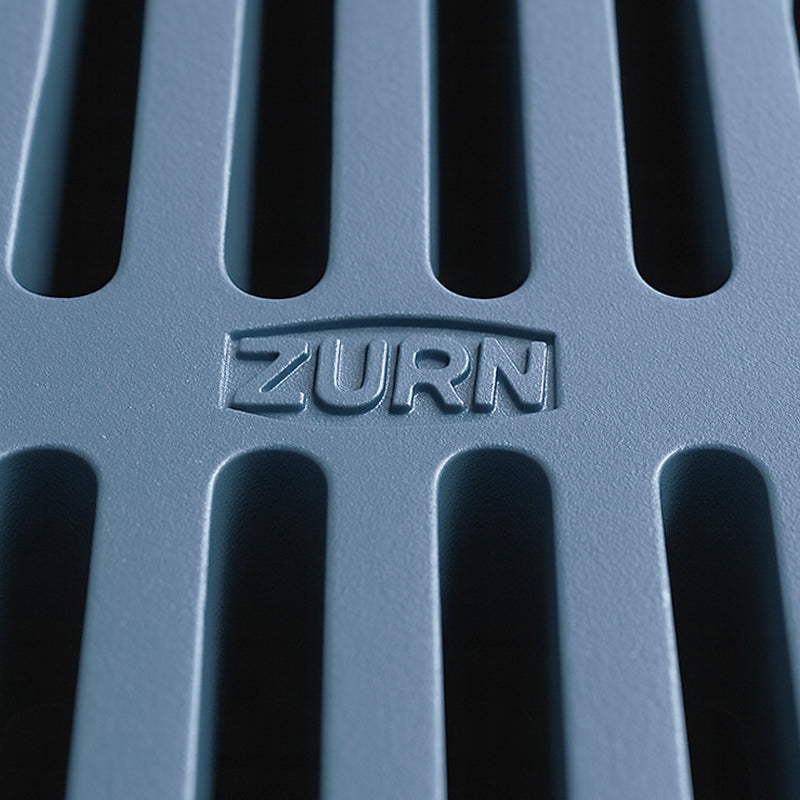

- Heavy-duty anti-tilt slotted Duresist grate
- Integrated trap primer connection

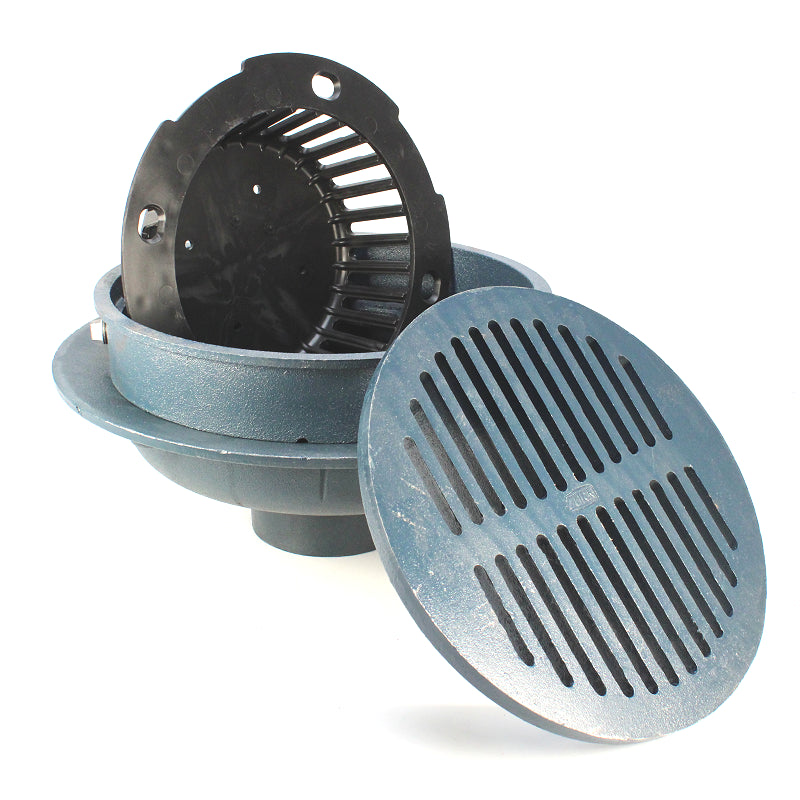

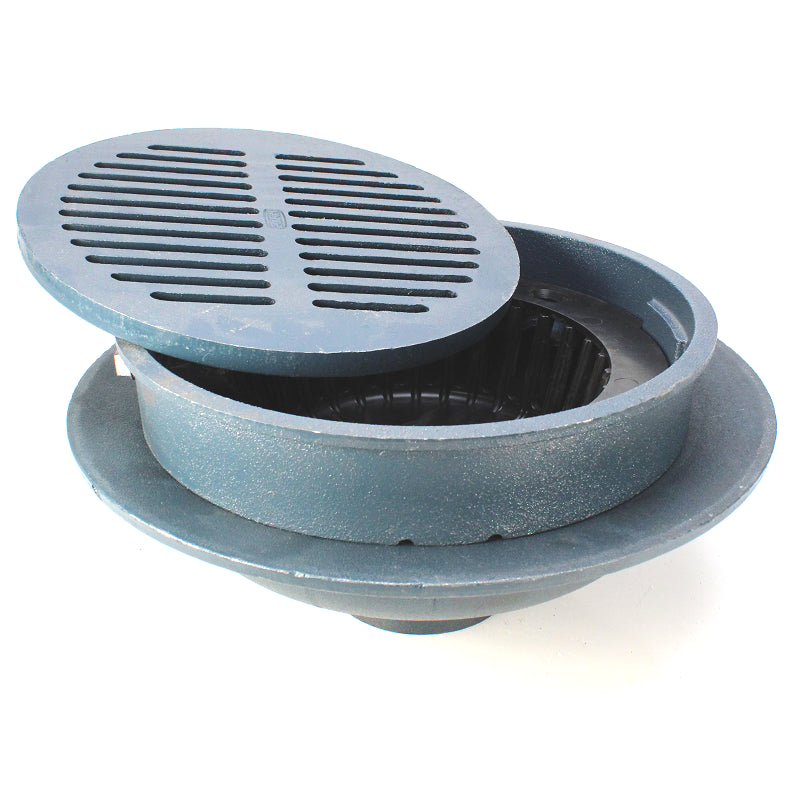

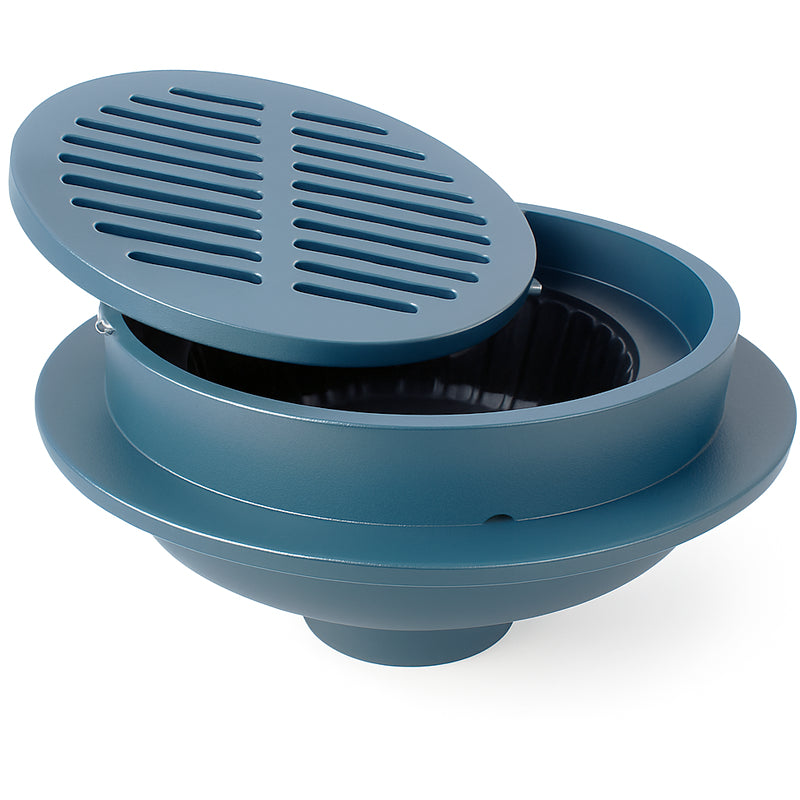

- Optional suspended polypropylene sediment bucket
- Standard outlet type: NH No-Hub

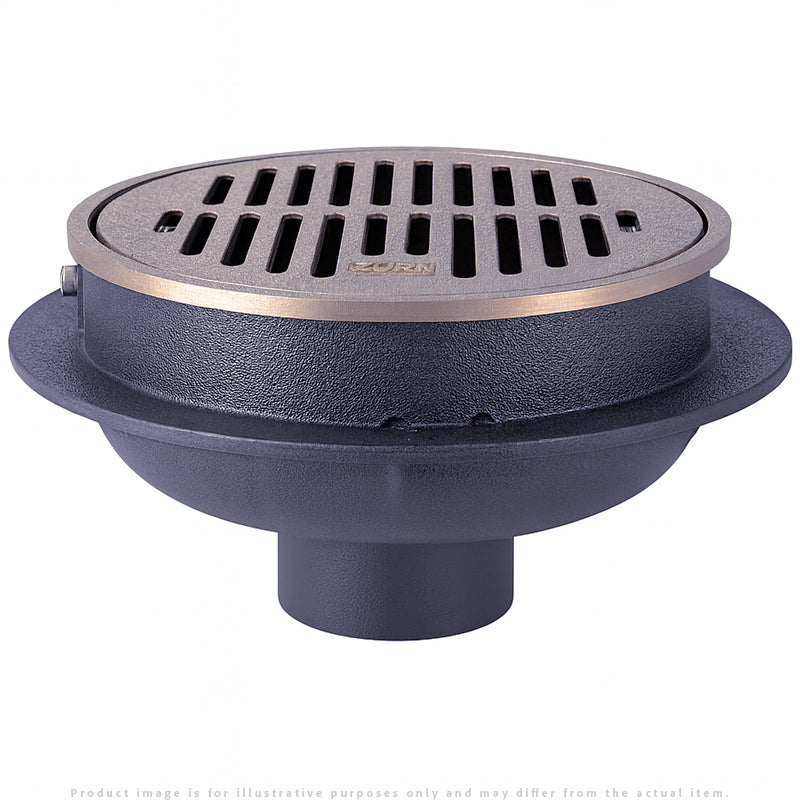

- Finish options: Cast iron (Z541) or polished nickel bronze veneer (ZN541)
Specifications
- Model: Zurn Z541
- Top Diameter: 12-1/4" (311 mm)
- Grate Type: Heavy-duty anti-tilt slotted
- Body Material: Dura-Coated cast iron
- Grate Open Area: 30 sq. in. (194 cm²)
- Outlet Sizes: 2", 3", 4", 6", 8"
- Outlet Types: IC, IG, IP, NH, NL
- Finish Options: Z541 (cast iron), ZN541 (nickel bronze veneer)
Installation Tips
- Confirm outlet size and type before installation.
- Ensure proper sealing of waterproofing membrane under the flashing clamp.
- Install trap primer according to local codes.
- Verify sediment bucket (if used) is properly seated.
FAQs
Q: Does the Z541 include a sediment bucket?
A: A suspended polypropylene sediment bucket is optional.
Q: What is the grate open area?
A: Approximately 30 sq. in. (194 cm²).
Q: Does it include a trap primer connection?
A: Yes, an integrated trap primer connection is standard.
