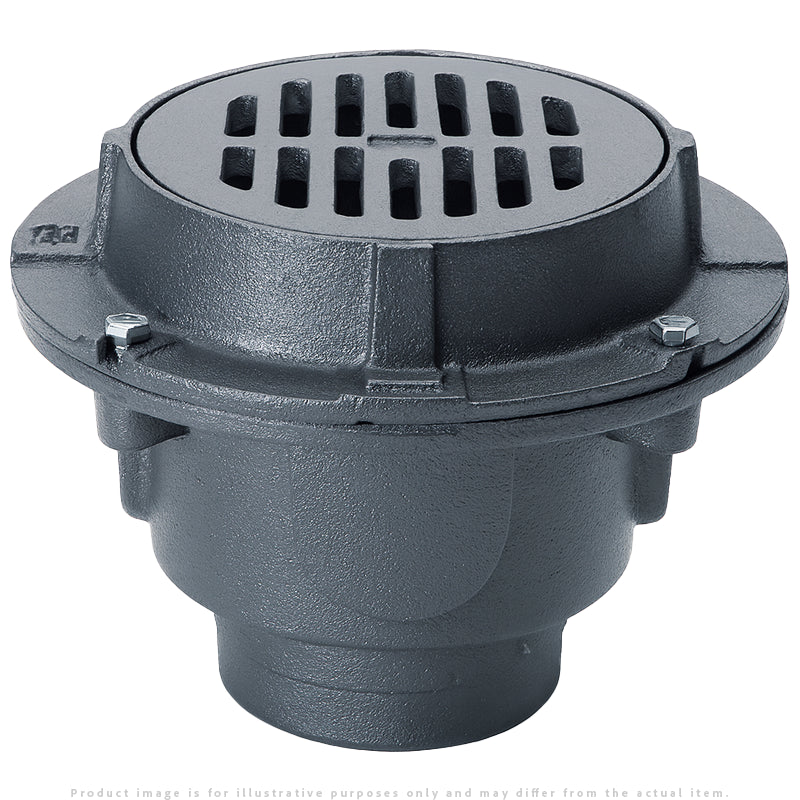

Zurn Z511 9" Heavy-Duty Floor Drain
Product Overview
The Zurn Z511 heavy-duty 9-inch floor drain is engineered for demanding commercial and industrial applications. Its Dura-Coated cast iron deep-sump body, integrated seepage pan, and secure membrane flashing clamp provide reliable performance and durability. Available with cast iron or polished nickel bronze top options, the Z511 series is ideal for high-traffic and high-load environments.
Features & Benefits
- Dura-Coated cast iron body for long service life.
- Heavy-duty deep sump design for increased drainage capacity.
- Available with cast iron or polished nickel bronze tops.
- Compatible with IC, IG, IP threaded, and Neo-Loc outlets.
- Includes seepage pan and membrane flashing clamp for waterproofing.
Specifications
- Top Diameter: 9" (229 mm)
- Body Height: IC/IG/IP 7-5/8" (194 mm), Neo-Loc 6-7/8" (175 mm)
- Outlet Sizes: 2", 3", 4" (depending on connection type)
- Material: Dura-Coated Cast Iron Body; Cast Iron or Nickel Bronze Top
- Weight: Approx. 40 lbs (18 kg)
- Grate Open Area: 18 sq. in. (116 cm²)
Installation Tips
- Select outlet type based on local code requirements.
- Ensure proper tightening of membrane flashing clamp.
- Use Neo-Loc test caps for leak testing.
- Confirm load rating compatibility for traffic areas.
FAQs
What is the difference between Z511 and ZN511?

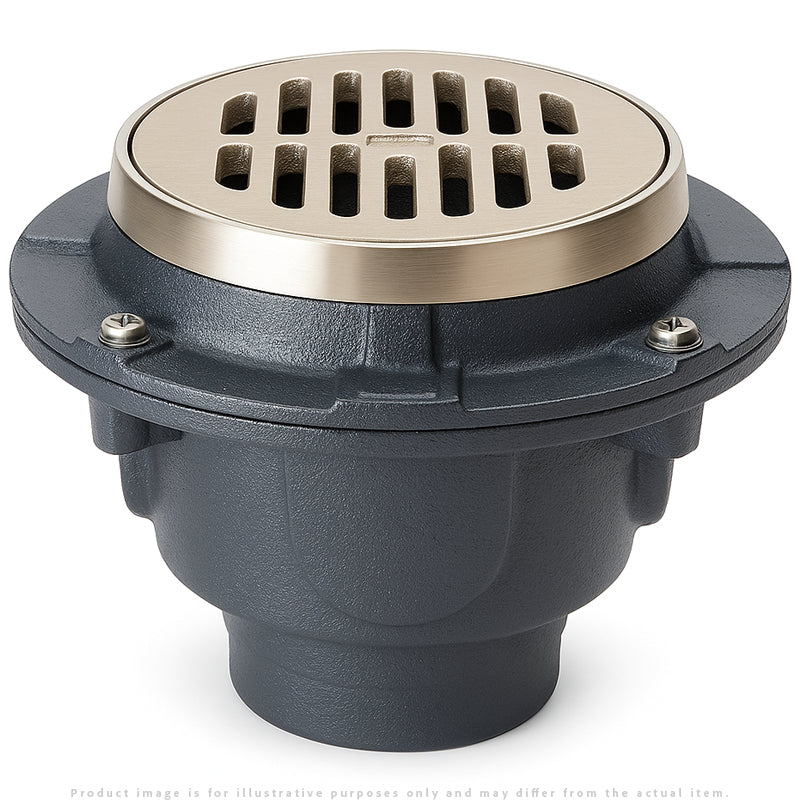

Z511 has a cast iron top; ZN511 includes a polished nickel bronze top and added height dimensions.
Can the Z511 include a sediment bucket?
Yes—order with suffix –Y.
Does it support trap primer connection?
Yes—order with suffix –P.
Is a vandal-proof top available?
Yes—select suffix –VP.
