Zurn Z154 12" Square Top Promenade Deck Drain

Zurn Z154 12" Square Top Promenade Deck Drain with Heel-Proof Grate

Product Overview

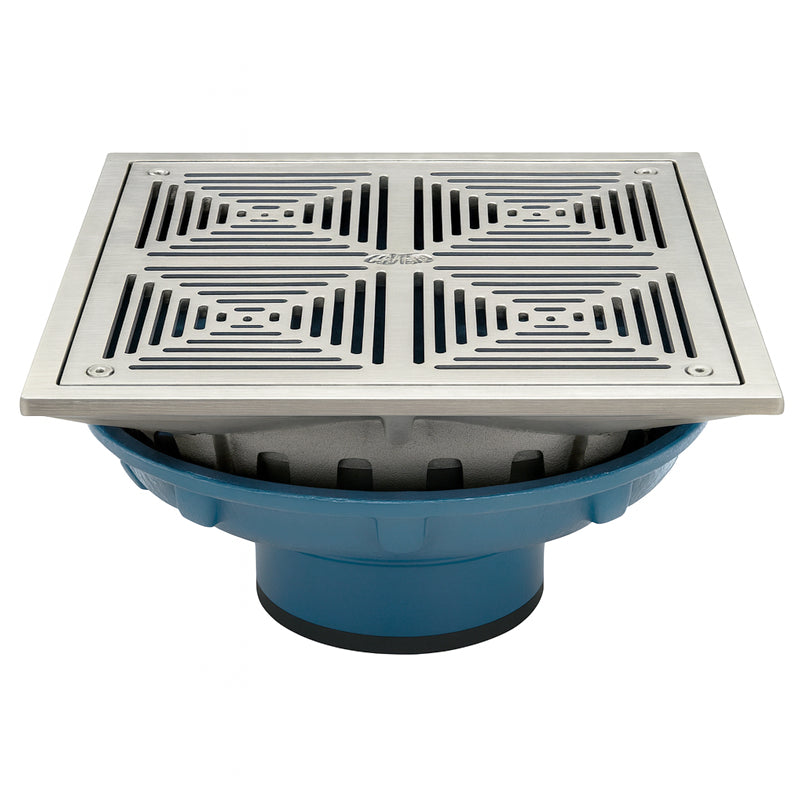

The Zurn Z154 Promenade Deck Drain is engineered for reliability, durability, and safety in commercial and institutional applications. Featuring a 12-inch square heel-proof grate and a rotatable light-duty frame, it offers secure drainage while accommodating design flexibility for paver systems and deck layouts. Constructed with a Dura-Coated cast iron body, the Z154 ensures long-term resistance to wear and corrosion.

Available in cast iron, bronze, and nickel bronze tops, this drain provides compatibility with 2", 3", 4", and 6" pipe connections, making it a versatile solution for commercial decks, promenades, plazas, and public walkways.

Features & Benefits

• 12" Square Top Design – Provides reliable drainage in commercial decks and walkways.

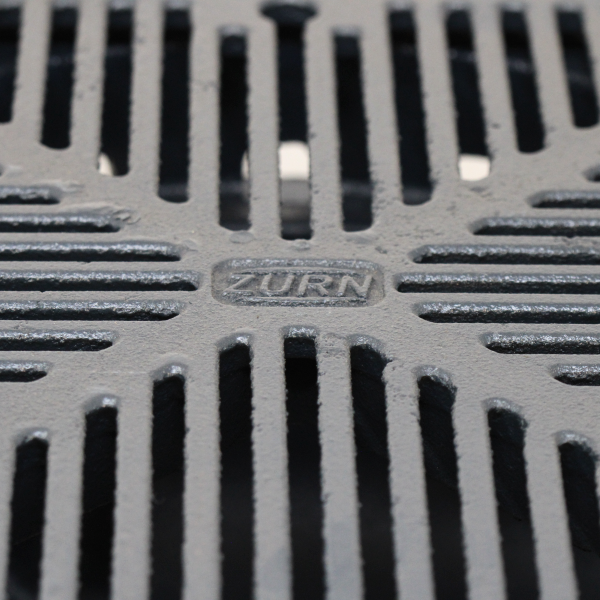

• Heel-Proof Grate – Enhances pedestrian safety by preventing heels or small objects from catching.

• Rotatable Frame – Allows alignment with paver joints and simplifies installation.

• Durable Build – Dura-Coated cast iron body resists corrosion and extends service life.

• Flexible Options – Available with polished bronze or nickel bronze tops for architectural finishes.

• Multiple Outlets – Compatible with inside caulk, threaded, no-hub, and Neo-Loc outlets.

Specifications

• Model: Z154

• Grate Size: 12" x 12" square

• Grate Open Area: 34 sq. in. (219 cm²)

• Material: Dura-Coated Cast Iron (optional bronze or nickel bronze top)

• Outlet Sizes: 2", 3", 4", or 6"

• Outlet Types: Inside caulk, threaded, no-hub, Neo-Loc

• Approximate Weight: 29 lbs (13 kg)

• Options Available: Acid-resistant epoxy, vandal-proof top, sediment bucket, secondary strainers, decorative finishes, side outlets

Installation Tips

• Select the proper outlet type (IC, IP, NH, or NL) for your piping system.

• Use the rotatable frame to align with paver joints for a seamless finish.

• Consider optional accessories like underdeck clamps or sediment buckets for enhanced performance.

• Ensure correct pipe sizing before installation to prevent misfitting.

• Follow Zurn’s engineering specifications for compliance with building codes.

FAQs

Q: What makes the Z154 a promenade drain?
A: Its design includes a square heel-proof grate and rotatable frame, making it ideal for pedestrian-heavy areas like plazas and decks.

Q: Can this drain be used outdoors?
A: Yes, the cast iron body and optional finishes make it suitable for commercial outdoor installations.

Q: Does it work with paver systems?
A: Yes, the rotatable frame allows precise alignment with paver joints.

Q: What sizes of piping are compatible?
A: The Z154 works with 2", 3", 4", and 6" pipe outlets.
