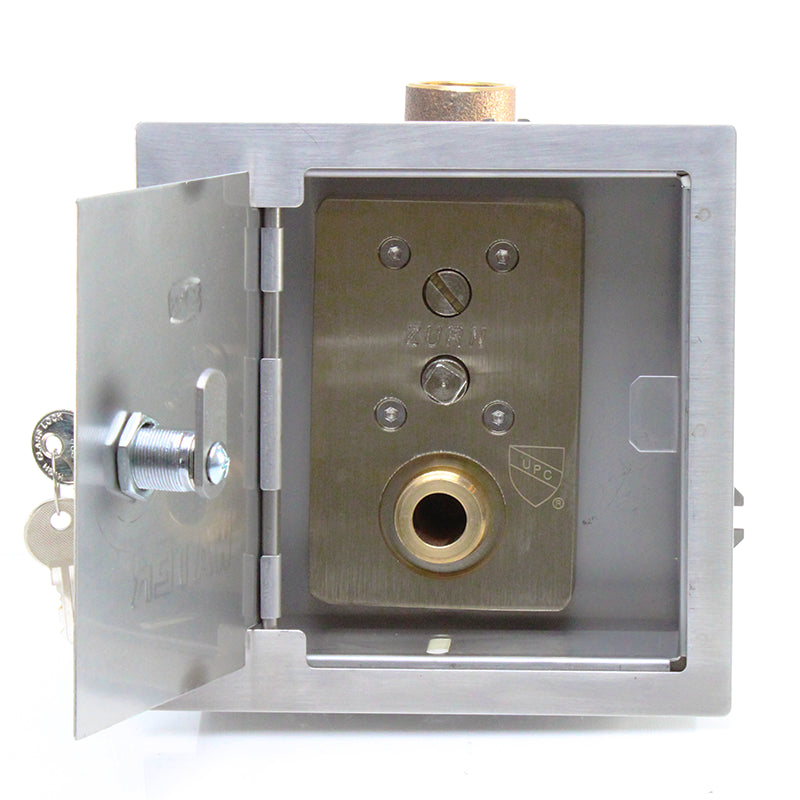

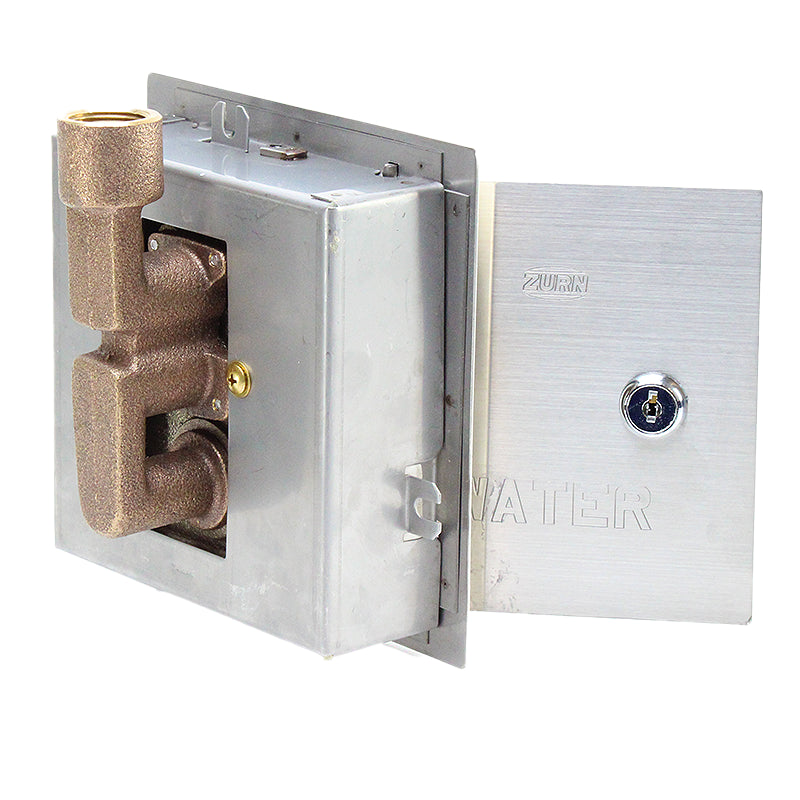

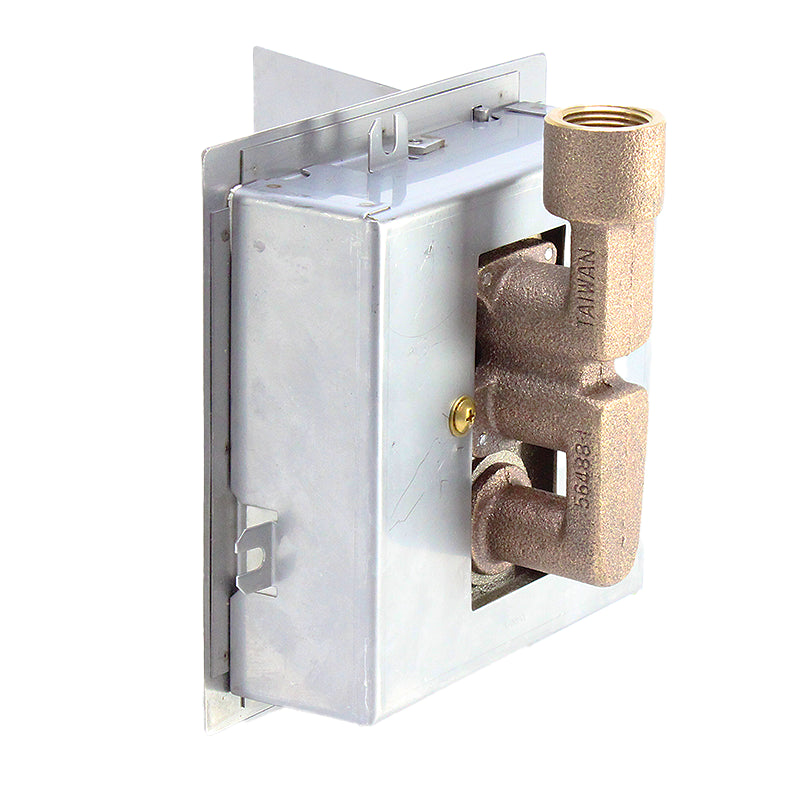

Zurn Z1350 Encased Narrow Wall Moderate Climate Wall Hydrant.
Features & Benefits:
- 3/4" Hose Connection
- Stainless steel enclosure box
- Moderate climate
- Narrow wall applications
- Screwdriver and key operated stop valve control
- 4" minimum wall thickness required
Product Specifications:
ZURN Z1350 Encased moderate climate wall hydrant for narrow wall installation. Complete with bronze body, all bronze interior parts, replaceable seat washer, screwdriver operated stop valve in supply, key operated control valve, and 3/4 [19] IP female inlet and 3/4 [19] male hose connection standard. Adjustable stainless steel box furnished with hinged cover, cylinder lock and "WATER" stamped on cover.
Product Notes:
The adjustable sleeve on the stainless steel box is provided with a gasket as standard, but additional caulking of all inside joints is required (by others) after the hydrant box has been properly set. Caulking should be performed on all open seams, including the seams where the gasket is present.
Technical Downloads:
- Zurn Z1350: Specification Submittal
