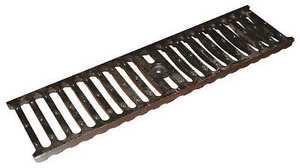

Zurn P6-DGC 6" Wide Ductile Iron Slotted Grate Class C

ZurnSKU: ZUR-P6-DGC

Price:
Sale Price$118.99 CAD
Stock:
In Stock
Description

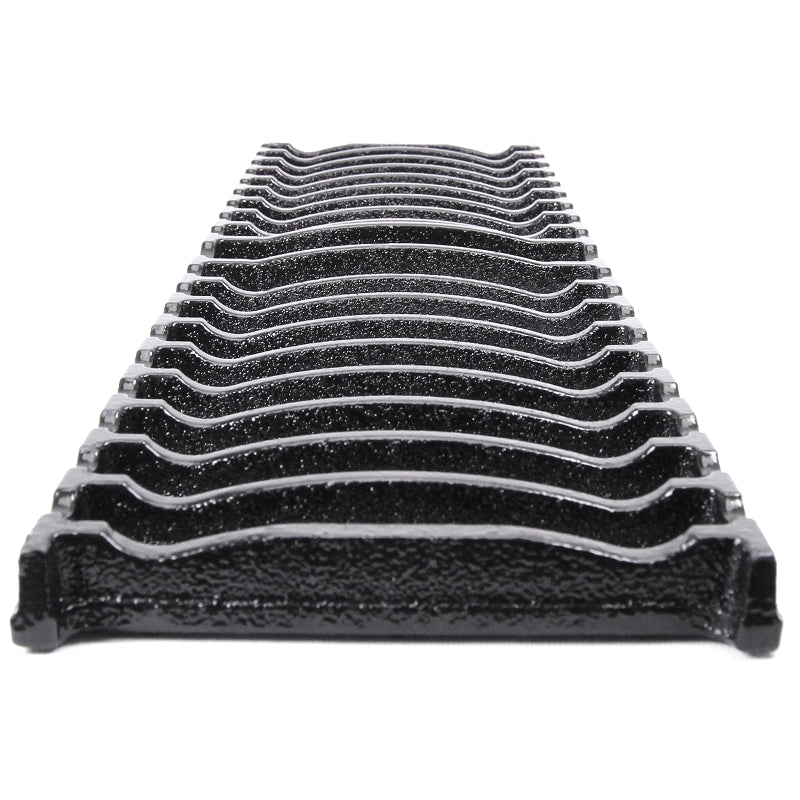

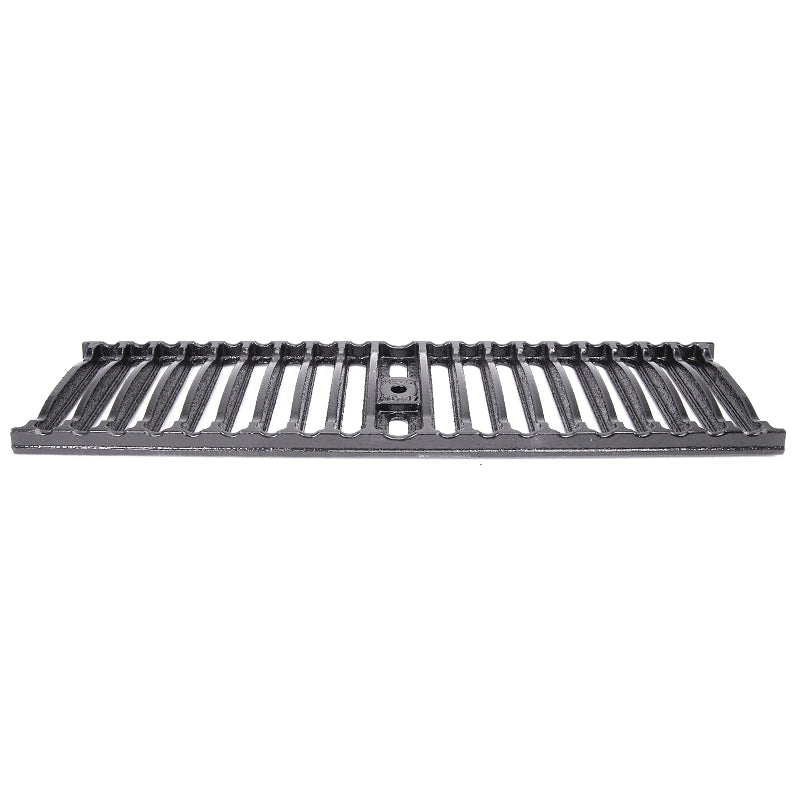

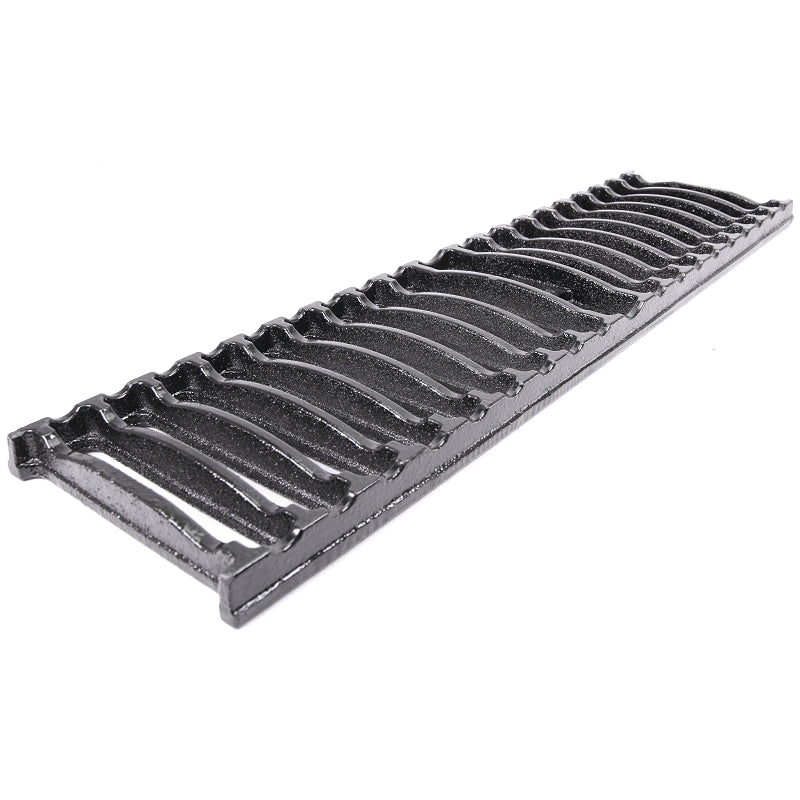

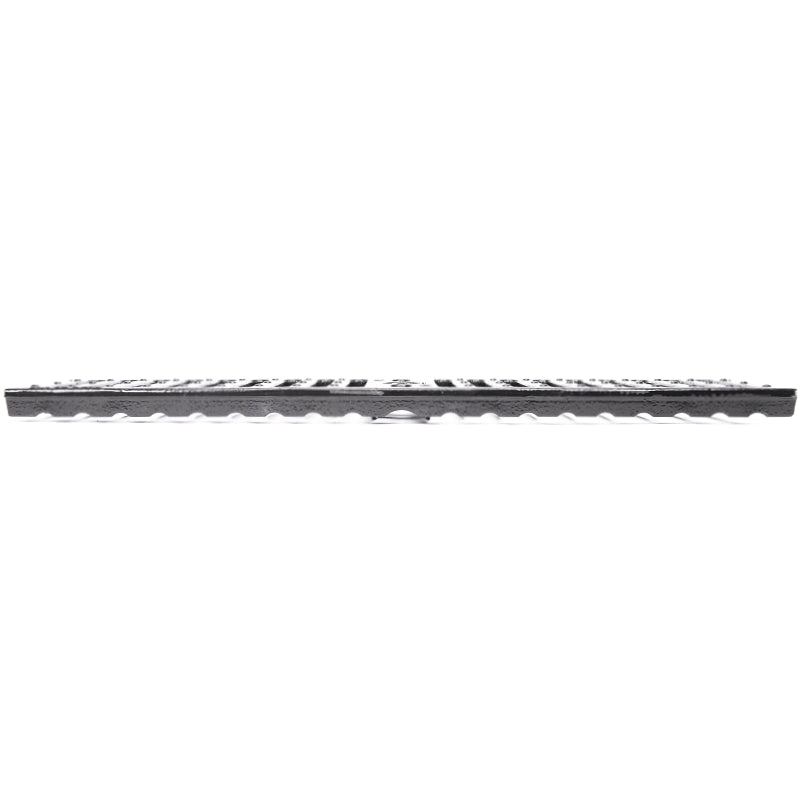

Zurn P6-DGC 6" Wide Ductile Iron Slotted Trench Drain Grate – Class C Load Rated

Product Overview

The Zurn P6-DGC 6" Wide Ductile Iron Slotted Trench Drain Grate is a heavy-duty drainage solution engineered for applications requiring durability and strength under vehicular traffic. Built from ductile iron, this grate delivers long-lasting performance in commercial and industrial settings.

With a Class C DIN rating and ANSI Heavy-Duty rating, the P6-DGC is H-20 load rated, making it suitable for environments exposed to consistent traffic loads, including parking lots, service areas, and roadways. The slotted design provides an open area of 28.1 square inches per linear foot, ensuring effective water flow while maintaining structural integrity.

Designed for compatibility with Zurn trench drain systems, the P6-DGC fits Z886 (4 per channel) and Z883 (2 per channel) installations.

Features & Benefits

  • Heavy-Duty Ductile Iron Construction – Provides superior strength and durability.

  • Class C & H-20 Load Rated – Suitable for areas exposed to heavy vehicle traffic.

  • Optimized Drainage – Slotted design with 28.1 in² open area per foot maximizes water intake.

  • Wide Compatibility – Fits Zurn Z886 (4 per channel) and Z883 (2 per channel) trench drain systems.

  • Compact & Reliable – 5-3/8" wide by 20" long, weighing only 7.4 lbs per grate for easier handling.

  • Safety Compliance – ANSI Heavy-Duty rated; ADA and FAA compliance not applicable.

Specifications

  • Model: P6-DGC

  • Width: 5-3/8" (6" nominal grate)

  • Length: 20"

  • Material: Ductile Iron

  • Weight: 4.5 lbs/linear ft. (7.4 lbs per grate)

  • Open Area: 28.1 in² per linear ft.

  • Slot Width: 1/2"

  • DIN Rating: Class C

  • ANSI Rating: Heavy-Duty

  • H-20 Load Rated: Yes

  • ADA Compliant: No

  • FAA Compliant: No

  • Application: Vehicle traffic, commercial, and industrial drainage systems

  • Fits Systems: Zurn Z886 (4 per channel) and Z883 (2 per channel)

Installation Tips

  • Verify compatibility with Zurn Z886 or Z883 trench drain systems before installation.

  • Install grates securely to ensure load rating compliance under vehicle traffic.

  • Allow for regular inspection and cleaning to maintain maximum water flow efficiency.

  • Ensure slot orientation is correct for optimal drainage performance.

FAQs

Q: What trench drain systems does the P6-DGC fit?
A: It is designed to fit Zurn Z886 (4 per channel) and Z883 (2 per channel) trench drain systems.

Q: Is this grate suitable for heavy vehicle traffic?
A: Yes, with a Class C DIN rating and H-20 load rating, it is built for commercial and industrial vehicle applications.

Q: Is this grate ADA compliant?
A: No, this model is not ADA compliant due to 1/2" slot width.

Q: What is the weight of each grate?
A: Each 20" grate weighs approximately 7.4 lbs.
