Zurn P4-HPP-TEA&CREAM 4-1/8" Wide Heel-Proof Slotted Grate Tea & Cream

ZurnSKU: ZUR-P4-HPP-TEA&CREAM

Price:
Sale Price$78.99 CAD
Stock:
In Stock
Description

Zurn P4-HPP-TEA&CREAM 4-1/8" Wide Heel-Proof Slotted Grate, Tea & Cream, for Z884 Trench Drain.

Engineering Specifications:

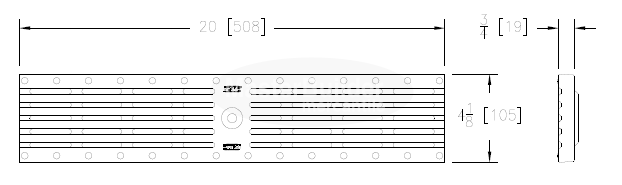

ZURN P4-HPP-TEA&CREAM 20” [508mm] X 4-1/8” [105mm] High Density Polyethylene (HDPE) Heel-Proof Grate weighing 0.78 lbs. per linear foot [1.2 kg/m]. The grate has an open area of 10.3 square inches per linear foot [218 cm2/m] DIN Rating of Class A, ANSI rating of Light-Duty, ADA compliant.

  • Material: HDPE
  • Color: Tea & Cream
  • DIN Rating: Class A
  • Weight: 0.78 lbs/ft. [1.2 kg/m]
  • Open Area: 10.3 in2 /ft. [218 cm2 /m]
  • ANSI Rating: Light-Duty
  • Application: Pedestrian, Chemicals, Swimming Pool
  • Slot Width/Hole Size: 0.25" [6.4mm]
  • ADA: Yes
  • H-20: No
  • FAA: No

Note:

2 GRATES REQUIRED PER Z884 40" SECTION.

COLORS OF ACTUAL PRODUCT MAY VARY DUE TO SCREEN RESOLUTION, AND MANUFACTURING VARIATIONS.

Technical Documentation:

Zurn P4-HPP-TEA&CREAM 4-1/8" Wide Heel-Proof Slotted Grate Tea & Cream Specification Submittal: Click Here.

Zurn P4-HPP-TEA&CREAM 4-1/8" Wide Heel-Proof Slotted Grate Tea & Cream Installation Instructions: Click Here.

Zurn P4-HPP-TEA&CREAM 4-1/8" Wide Heel-Proof Slotted Grate Tea & Cream Spec-Dec Brochure: Click Here.

Zurn P4-HPP-TEA&CREAM 4-1/8" Wide Heel-Proof Slotted Grate Tea & Cream Specified Decorative Systems Brochure: Click Here.
