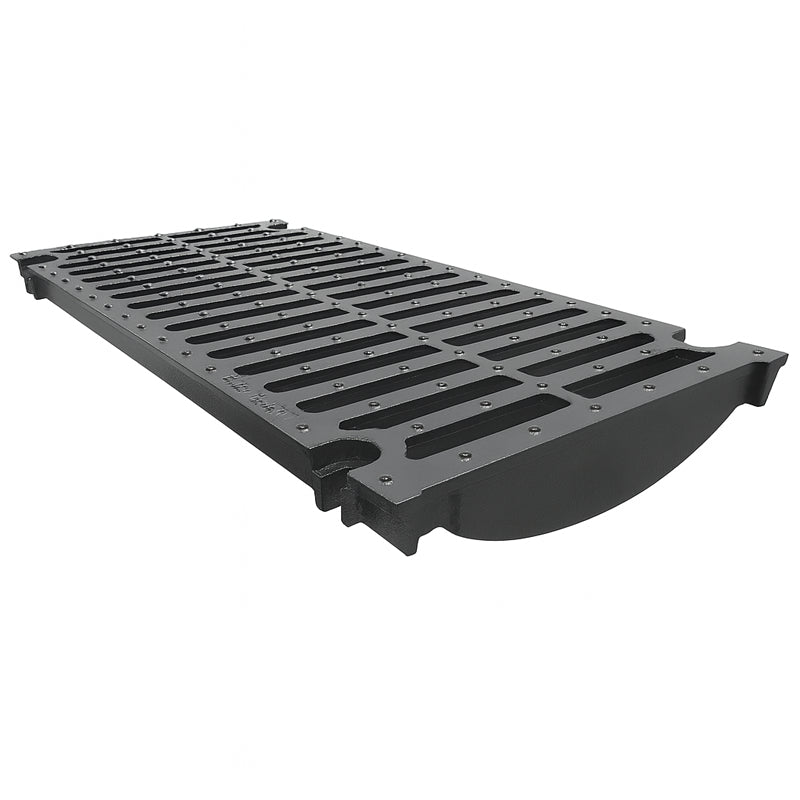

Zurn P12-DGE 12" Wide x 24" Long Ductile Iron Slotted Grate, Class E, Special-Duty

Zurn P12-DGE 12" Wide Ductile Iron Slotted Grate – Class E Special-Duty

Product Overview

The Zurn P12-DGE Slotted Grate is a ductile iron trench grate built for the most demanding environments, including industrial facilities, truck yards, airports, and heavy-traffic areas. With its Class E DIN and Special-Duty ANSI rating, this grate is engineered to withstand hard wheel loads and high-impact traffic.

Its wide slotted design delivers efficient water flow while meeting H-20 and FAA load requirements, making it ideal for projects requiring durability, safety, and reliable drainage performance.

Features & Benefits

• Heavy-Duty Construction: Made from ductile iron for long-lasting strength.

• Superior Drainage: Provides 60.3 in² of open area per linear foot for fast water removal.

• Traffic-Rated: Designed for hard wheel and truck traffic.

• Certified Performance: DIN Class E, ANSI Special-Duty, H-20 and FAA load-rated.

• Optimal Design: 49/64" slot width balances drainage capacity and strength.

Specifications

• Part Number: P12-DGE

• Material: Ductile Iron

• Width: 11-1/4" (nominal 12")

• Length: 24"

• Weight: 19.8 lbs per linear foot

• Open Area: 60.3 in² per foot

• Slot Width: 49/64"

• DIN Rating: Class E

• ANSI Rating: Special-Duty

• Load Rated: H-20 and FAA

• ADA Compliant: No

Installation Tips

• Confirm compatibility with Zurn trench drain frames before installation.

• Use appropriate lockdown hardware for secure placement.

• Install flush with surrounding pavement for load safety.

• Ensure alignment for maximum water flow efficiency.

• For heavy-duty installations (airports, truck yards), follow local engineering codes.

FAQs

Q: What applications is the P12-DGE grate best suited for?
It is designed for industrial, commercial, aviation, and heavy truck traffic environments.

Q: Is this grate ADA-compliant?
No, the slot width (49/64") does not meet ADA standards.

Q: What makes ductile iron better than cast iron?
Ductile iron provides greater strength and impact resistance, making it ideal for heavy-duty use.

Q: Can it handle heavy truck traffic?
Yes, it meets H-20 and FAA load requirements, ensuring performance under truck and hard wheel loads.

Q: What is the open area per foot?
The grate has 60.3 in² of open area per linear foot, ensuring efficient drainage.
