Description

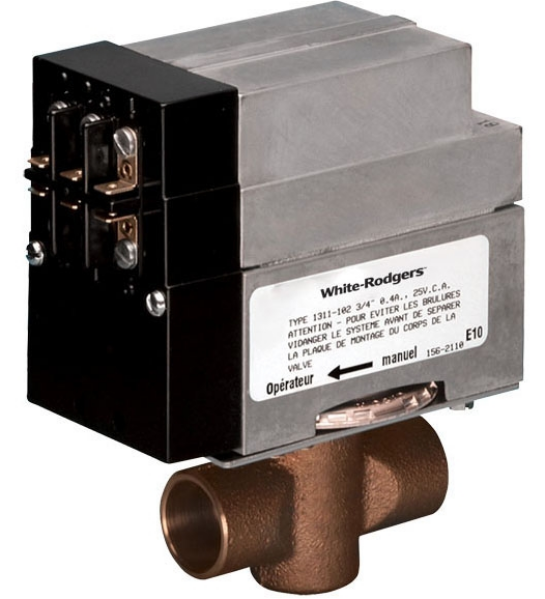

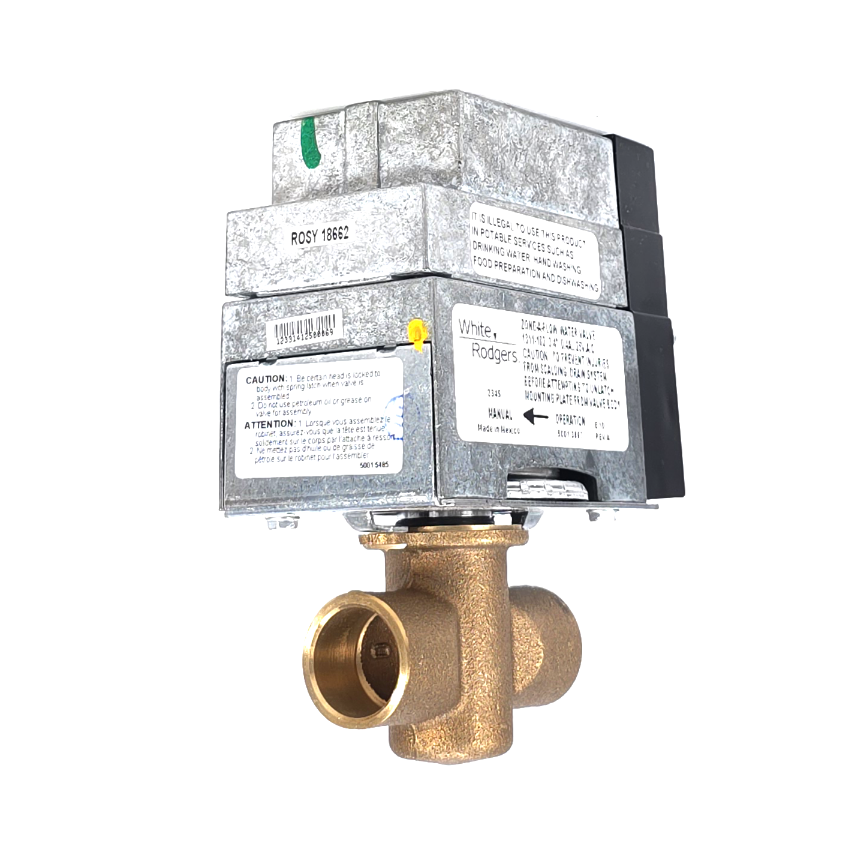

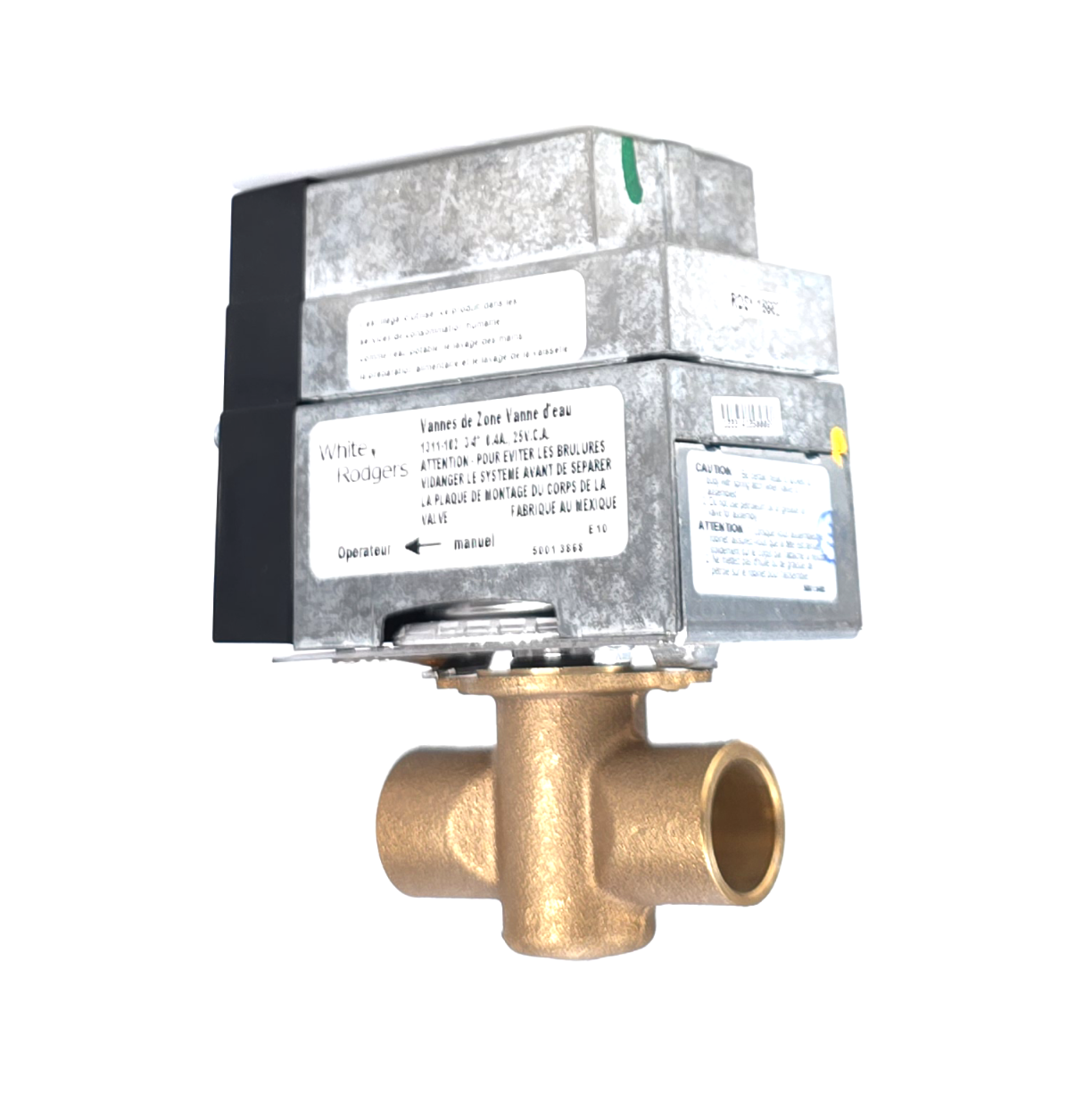

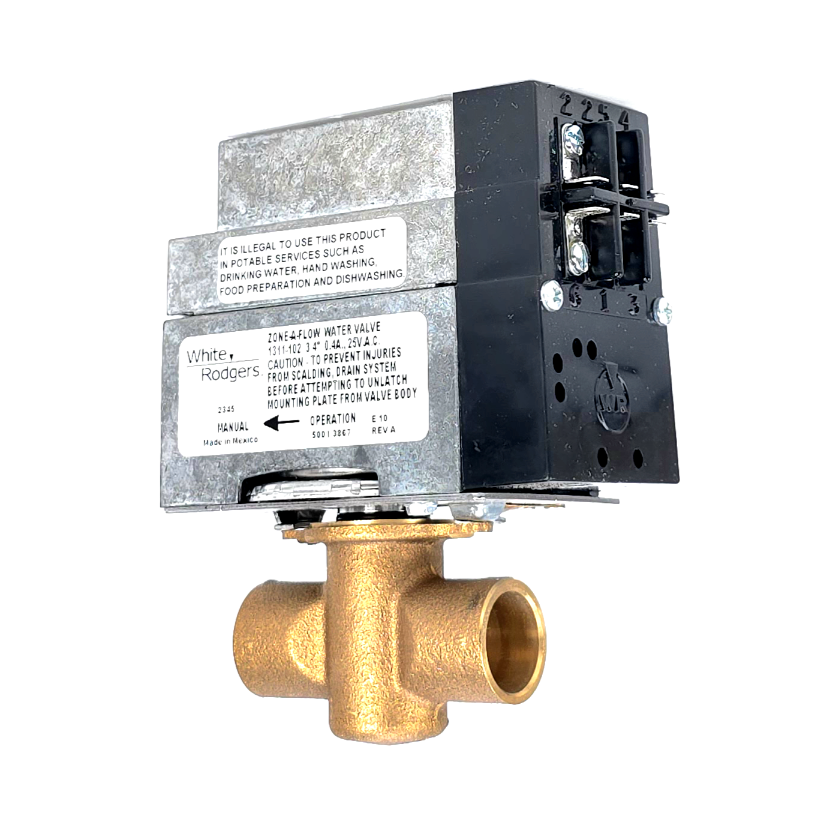

White Rodgers 1311-102 3/4" Sweat Zone Valves, Three Wire With End Switch
Features:
- Quiet Operation
- Automatic Recycling Manual Operator Shows Valve Position at All Times
- Built-In Auxiliary Contacts to Control Burner or Circulator Relay
- Motor Can be Removed from Valve Assembly without Draining System
Specifications:
- Hydronic Zone Valve
- Type 3-Wire
- Nominal Size 3/4 Inch
- Body Material Corrosion Resistant Stainless Steel
- Valve Timing 45 Second (Open/Close)
- Input Supply Rating 24 Volt AC 0.4 Amp
- Temperature Rating 240 Deg F
- Pressure Rating 50 PSI
- Media Handled Water
- Inclusions/Features Screw Terminal Wiring Panel, 24 Volt AC 2 Amp Auxiliary Switch
- Application Hydronic System
- Overall Dimension 4-5/8 Inch Width x 2-3/4 Inch Depth
- End to End Distance 2-7/8 Inch
- Flow Rate 23.5 Cv
