Tekmar 743 Actuating Motor Floating Action

TekmarSKU: TEK-743

Price:
Sale price$842.99 CAD

Description

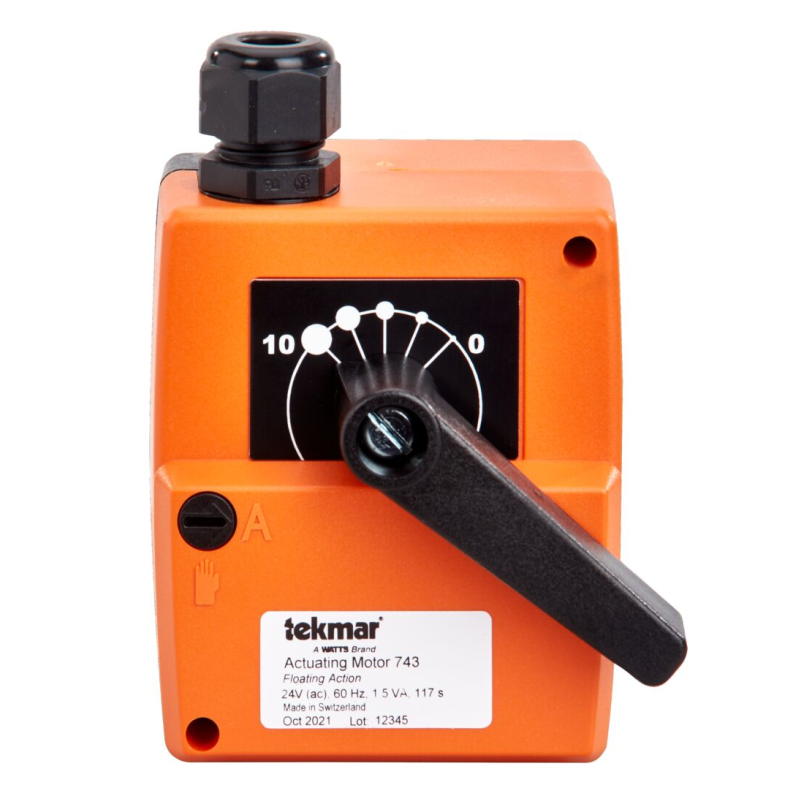

Tekmar 743 Actuating Motor Floating Action

Tekmar 743 Actuating Motor Floating Action.

    The Actuating Motor 743 uses a floating action signal to adjust the position of a mixing valve.  It is compatible with tekmar brass mixing valves 710 to 724. It provides 88 in•lbs (10 N•m) of torque over a 90° rotation.

    Specifications:

    • Packaged Weight - 1.1lb
    • Dimensions - 3-5/8" H x 3-1/8" W x 3-9/16" D (93 x 80 x 90 mm)
    • Enclosure - Polycarbonate plastic, NEMA type 1
    • Ambient Conditions - Indoor use only, 32 to 122°F (0 to 50°C), 95% RH noncondensing
    • Power Supply - 24 V (ac) ± 10%, 60 Hz, 1.5 VA, Class 2
    • Control Signal - 24 V (ac), floating action
    • Angle of Rotation - Electrically limited to 90° shaft rotation
    • Motor Speed - 117 seconds at 60 Hz
    • Rated Torque - 88 in•lbs (10 N•m)
    • Warranty - Limited 3 Year Warranty

    Installation Manual

    Specification Sheet
