Description

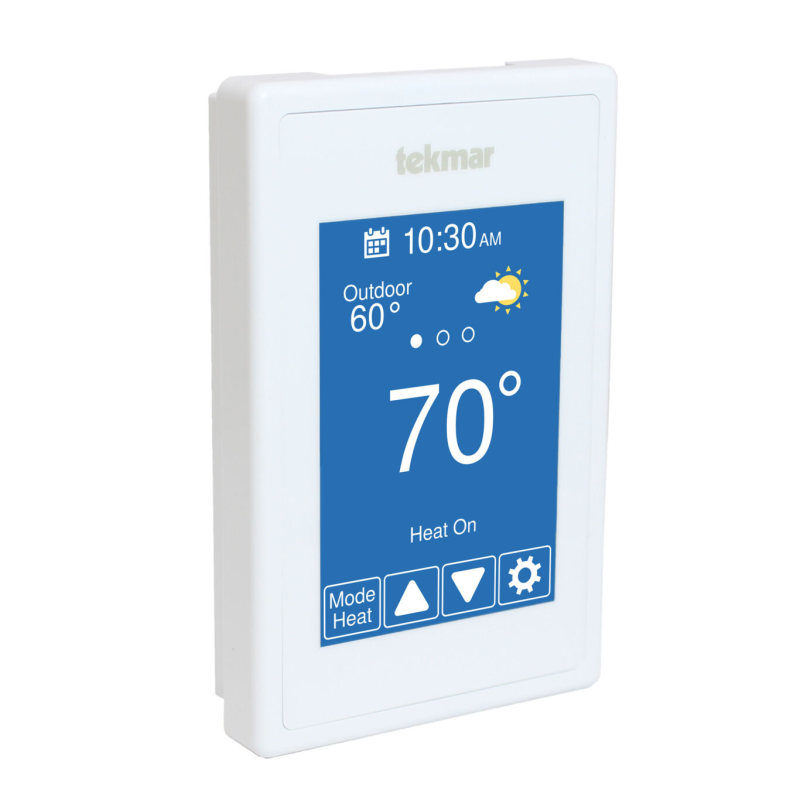

Tekmar 563 Thermostat - Conventional 2H/2C or Heat Pump 4H/2C
Features:
- Supports dual fuel systems
 - Email error and warning notifications, automatic time clock
 - Accessory options: humidifier, dehumidifier, HRV/ERV ventilator, water-source heat pump loop valve
 - Energy monitoring, multiple background colors
 - Optional remote floor, room, outdoor and relative humidity sensors, local outdoor temperature and weather
 - Humidifier window frost protection, conventional systems: 2-stage heating, 2-stage cooling, fan and 2 accessories
 - 7 day programmable schedule, early start
 - Mobile and web app for remote control, away energy savings mode
 - Heat pump systems: 4-stage heating, 2-stage cooling, fan, reversing valve and 1 accessory

Specifications:
| Agency Approvals | Meets Class B: ICES & FCC Part 15 |
| Ambient Conditions | Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), RH less than or equal to 90 percent non-condensing |
| Communications | WiFi 802.11n, 2.4 GHz, WPA2 encryption |
| Control Type | Microprocessor control, this is not a safety (limit) control |
| Dimensions | 4-5/8" H x 3" W x 15/16" D (118 x 76 x 24 mm) |
| Display | 3.5" color touchscreen |
| Enclosure Material | White PVC plastic |
| Enclosure NEMA Rating | NEMA 1 |
| Environmental Notice | Do not use in presence of ammonia (animal barns). |
| Humidity Sensor | 0 to 90 percent plus / minus 4 percent RH |
| Languages | English/Français/Español |
| Power Supply | 15 to 30 V (ac/dc), 2 VA, Class 2 |
| Relay | 30 V (ac/dc), 2 A, Class 2 circuits |
| Temperature Sensor | NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892 |
| Zoning - Thermostat Type | WiFi Thermostat |
Technical Downloads:
- Tekmar 563 Thermostat: Installation Manual
