Description

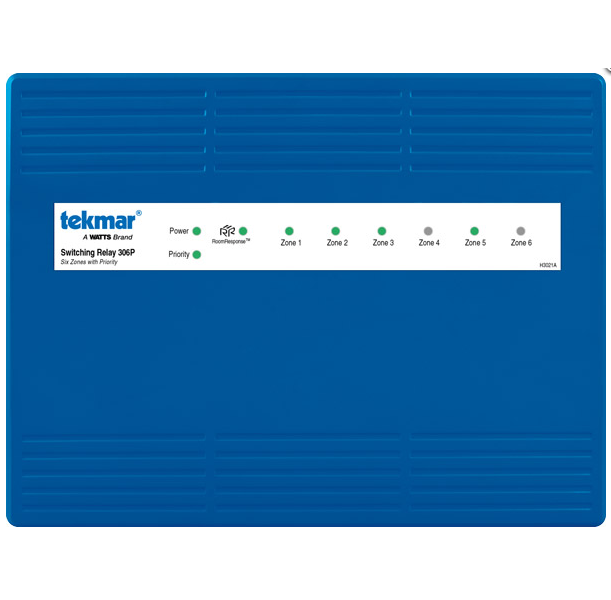

Tekmar 306P Relay Switching Six Zones With Priority
Features:
-
Away signal shared between tekmar thermostats
 -
CSA approved
 -
Compatible with all low voltage thermostats
 -
Four ground screws
 -
Fuses protect transformers and pumps

-
LED for each zone, priority, end switch and RoomResponse™
 -
Post purge
 -
Priority override
 -
Pump exercising
 -
RoomResponse™ signal

-
Top, bottom and back conduit knockouts
 -
Two spare fuses included
 -
Unlimited zone expansion
 -
Zone priority

Specifications:
- Packaged Weight - 5lb
 - Control - Microprocessor control. This is not a safety (limit) control
 - Dimensions - 8-3/16" H x 10-11/16" W x 2-3/8" D (208 x 271 x 60 mm)
 - Enclosure - Cover: ABS plastic, Base: galvanized steel, NEMA type 1
 - Approvals - CSA C US
 - Ambient Conditions - Indoor use only, 32 to 122°F (0 to 50°C), RH ≤90% non-condensing
 - Power Supply - 115 V (ac) ±10%, 60 Hz, 17.3 A
 - Transformer - 40 VA at 24 V (ac), expandable to 80 VA with additional transformer M3069 (sold separately)
 - Fuses - T5A 250 V slow blow 5 x 20 mm glass fuse, two spare fuses included
 - Control Load - 7 VA at 24 V (ac)
 - Pump Relay - 115 V (ac), 5 A, 1/3 hp, 17.3 A combined
 - Boiler XX End Switch - 24 V (ac), 5 A
 - DHW End Switch - 24 V (ac), 5 A
 -
Mod Boiler Output - 0-10 V (dc) 500 Ω min load impedance, 4-20 mA 1 kΩ max load impedance
 - Warranty - Limited 3 Year Warranty

Installation Manual
