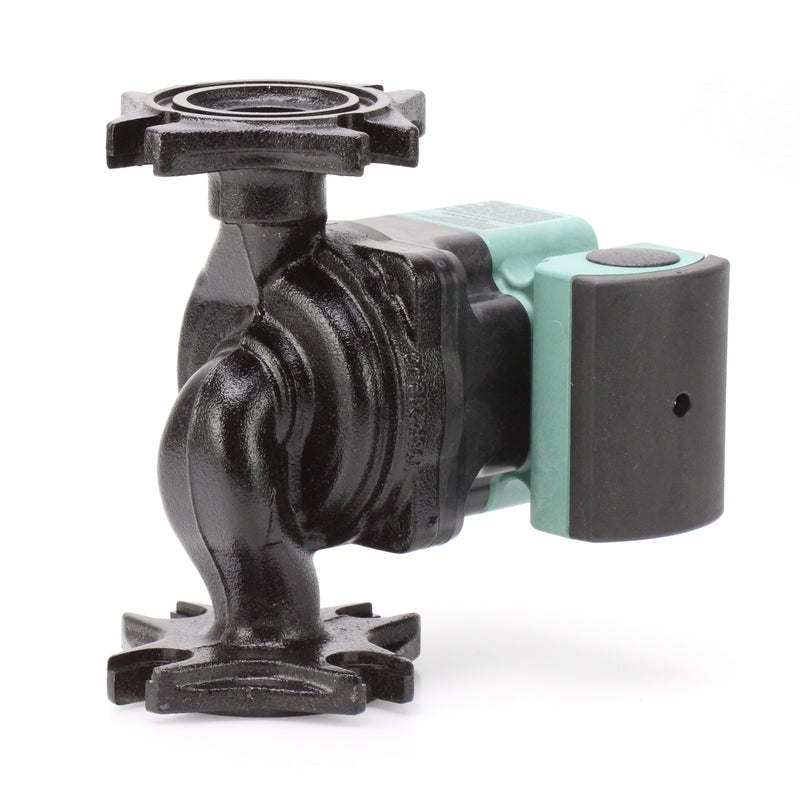

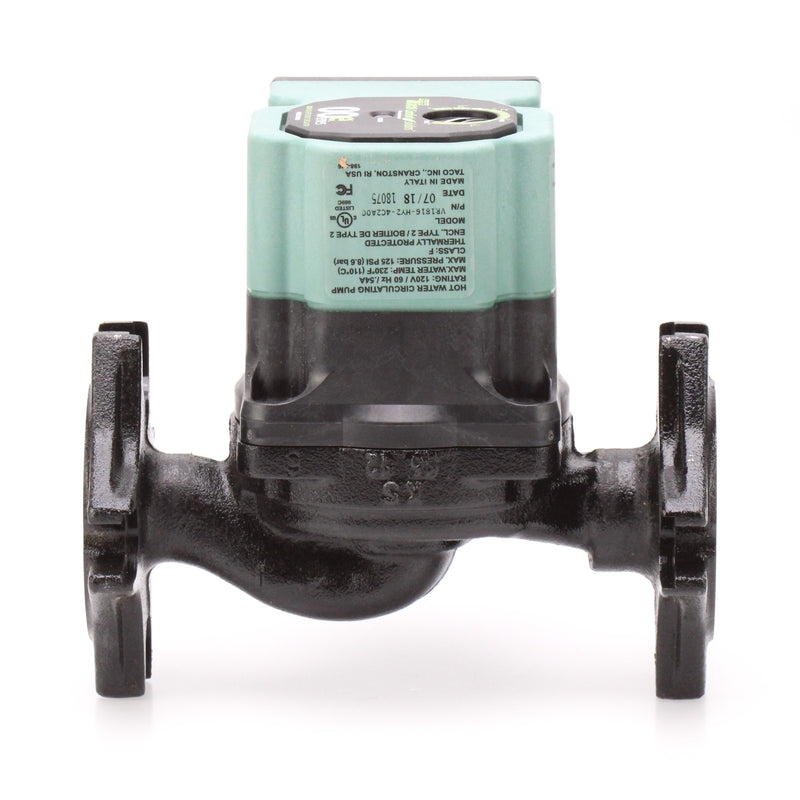

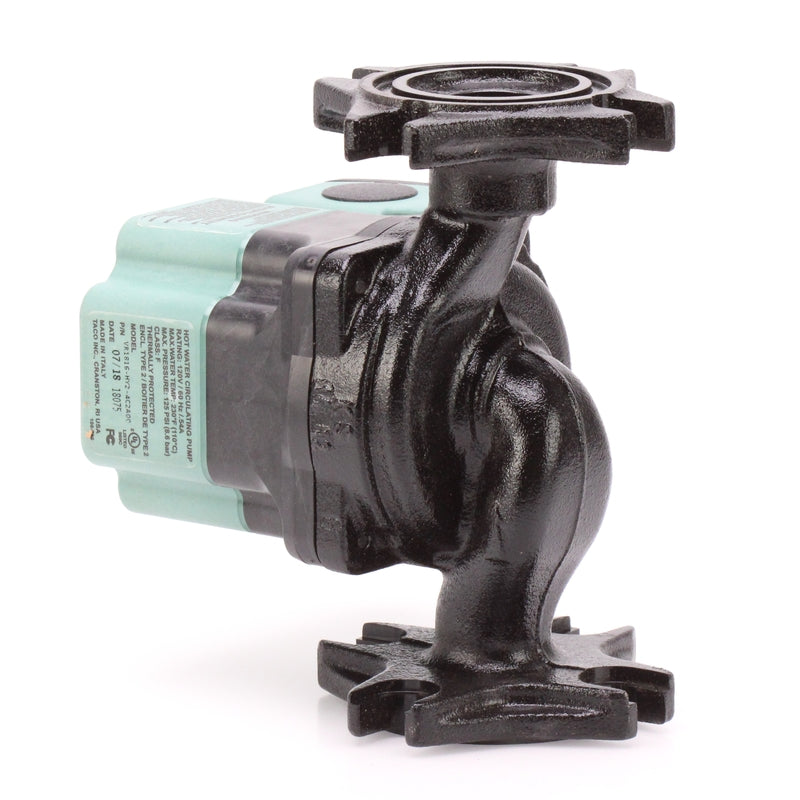

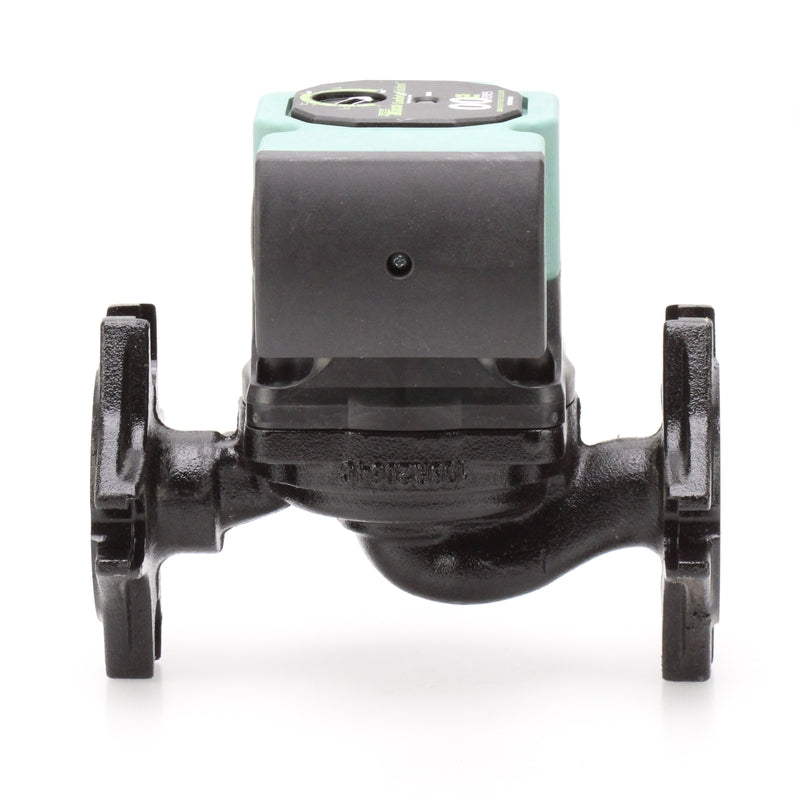

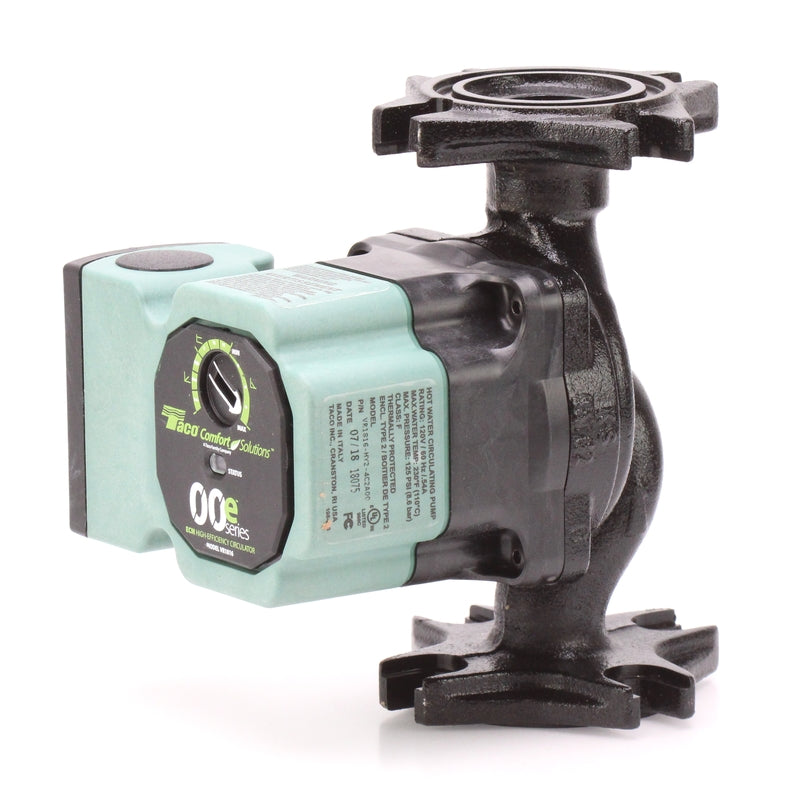

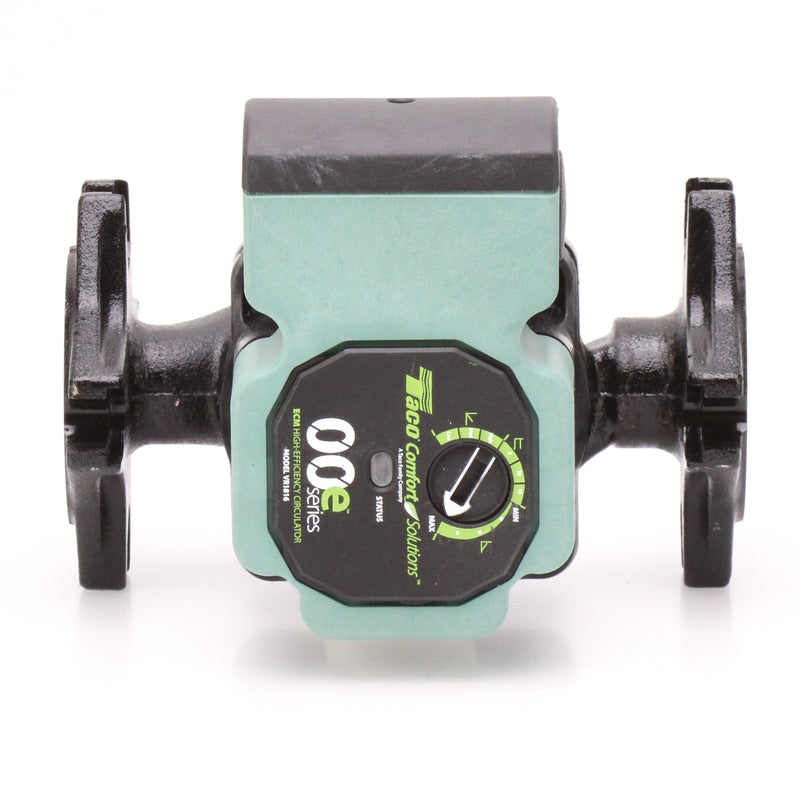

Taco 0018E-2F4 ECM Cast Iron High-Efficiency Circulator Pump

Features:

The 00e® series - 0018e featuring Bluetooth is a versatile, variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. Download the Taco 0018e Mobile App to see and control real-time system performance. Run system operation & validation reports including performance diagnostics & history. Know the most efficient setting based on real-time feedback and alleviate the problems of over-pumping. You design systems with precision. The 0018e offers the performance & control to match.

• Bluetooth^® wireless communication for read & write functionality
• Intuitive 0018e ECM Circulator Mobile App for iOS and Android
• 4 Operating modes to choose from;
  • Min./Max. fixed speed
  • Constant pressure
  • Proportional pressure
• activeADAPT^™ – self-adjusting proportional pressure
• BIO Barrier^® protects the pump from system contaminants
• SureStart^®, a Taco exclusive feature, is your no-callback safety net. It automatically purges air and unblocks the pump to keep it trouble-free.
• High-efficiency ECM technology uses up to 85% less electricity
• Dual electrical knockouts and 6″ stranded wire leads for easy wiring
• Double insulated; no ground wire needed
• Whisper quiet operation

Specifications:

• Maximum Shut-off Head - 18 feet
• Maximum Flow - 16 gpm
• Maximum Operating Pressure - 125 psi (8.6 bar)
• Maximum Water Temp: 230°F (110°C)
• Minimum Water Temp: 36°F (2°C)
• Electrical specifications:
• Voltage: 120V, 60 Hz Single phase
• Operating Power: 4W - 44W
• Max. AMP Rating: 0.54
• Equipped with a cast iron casing and should be used for closed loop systems only
• Not suitable for chilled water or open loop potable water systems
• Taco circulator pumps are for indoor use only
• Acceptable for use with water or maximum of 50% water/glycol solution

Materials of Construction:

• Casing - Cast Iron
• Stator Housing - Composite
• Cartridge - Composite
• Impeller - Composite
• Shaft - Ceramic
• Bearings - Carbon
• Thrust Bearing - Ceramic
• O-Ring & Gaskets - EPDM
• Integral Flow Check (IFC® ):
• Body, Plunger - Acetal
• O-ring Seal - EPDM
• Spring - Stainless Steel
