Phoenix H2231 Commercial Evaporative Cooler, Side Discharge, Aspen Media, Blower Style
Phoenix Manufacturing Inc. H2231 Commercial Evaporative Cooler, Side Discharge, Aspen Media, Blower Style
- Environmentally Friendly:
- The simple concept of mixing air and water produces powerful, energy efficient cooling that is both economical and environmentally friendly. The Frigiking coolers are ideally suited for the rigorous demands of commercial / industrial applications such as those found in warehouses, plants and factories.
Features & Benefits:
- Units are UL Listed to UL Standard 507.
- High quality architectural grade Peblar XT® finish.
- Galvanized sheet steel is zinc coated at weights rated G40 or G90.

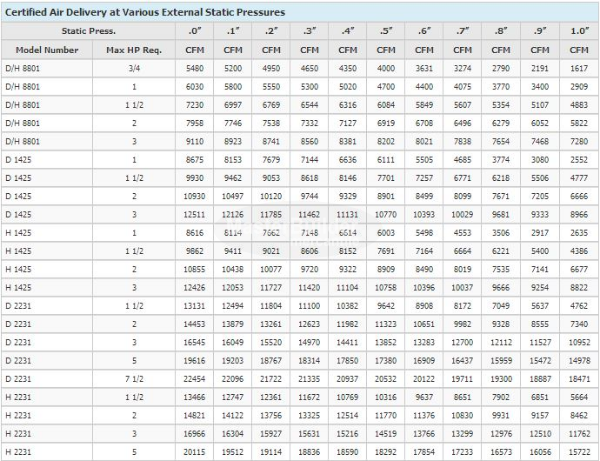

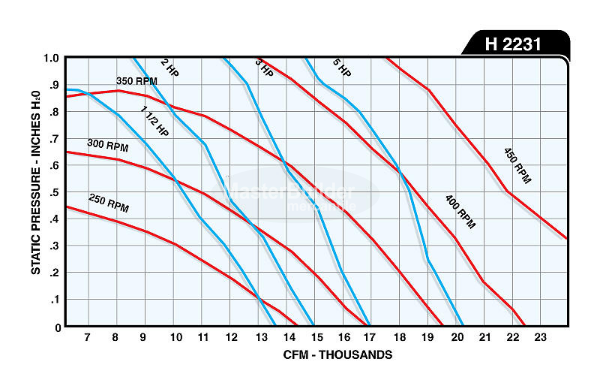

- Up to 22,000 CFM capacity (Industry Standard Rating).
- Evaporative media used in the UL Listed models is rated to UL900.

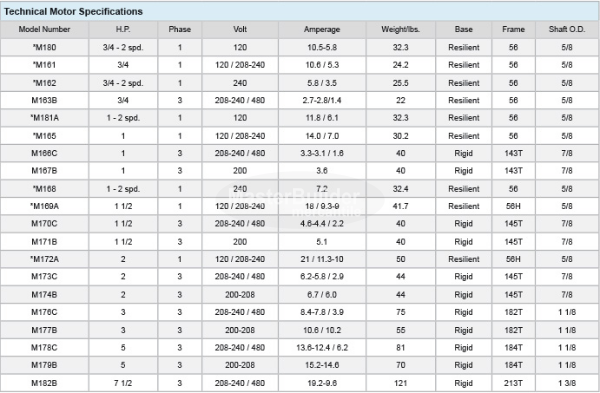

- Three Phase EISA motors are NEMA MG-1 Table 12-12 compliant.

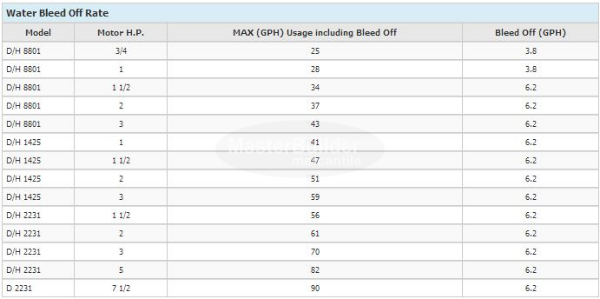

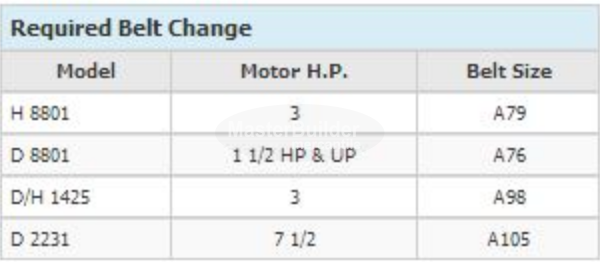

- Belt and bleed off included.
- Bearings have an L10 bearing life of 39,000 hours.
- Solid shaft for strength & durability.

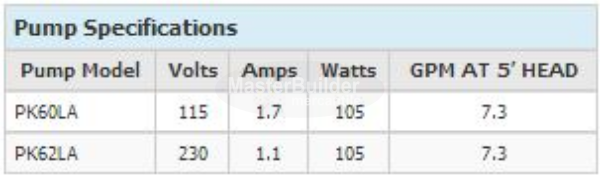

- Heavy duty UL Recognized motor & pump available.
- Multilayer bottom pan finish.
- Dynamically balanced blower wheels.
- City of Los Angeles Approved.
Phoenix H2231: Specification Submittal.
Phoenix H2231: Commercial Aspen Coolers Product Brochure.
Phoenix H2231: Commercial Aspen Coolers Owners Guide (English).
Phoenix H2231: Commercial Aspen Coolers Owners Guide (Spanish).
Phoenix H2231: Replacement Parts List.
Phoenix H2231: Warranty Information.
