NDS 864GMTL 5" Wide Pro Series Channel Trench Drain Kit with Galvanized Metal Grate

NDS 864GMTL 5" Wide Pro Series Channel Trench Drain Kit with Galvanized Metal Grate.

Product Overview:

• NDS 864GMTL Pro Series Deep Profile Channel Drain is the most durable, feature-rich and easy to install modular drainage system in its class.
• Kit comes complete with channel, grates, screws, end caps/outlet and installation instructions.
• Channel is made from injection-molded polypropylene with extended side ribs for increased channel strength and UV inhibitors to prevent fading and cracking.
• Included slotted grates are bright galvanized steel for up to Class B loading and are ADA-compliant.
• Channels snap end-to-end quickly and easily with robust male-to-female locking clips for long channel runs.
• Cut guides allow the channel to be shortened by 4-inch increments for smaller interlocking sections.
• Included end cap and end outlet combined with new integrated second bottom outlet and side-outlet knockouts provide 8 outlet options per channel section for increased design and installation flexibility.
• The new side outlets now allow 90-degree, tee and cross configurations to be made in the field without specialty accessories.
• New strengthened #4 rebar clips along the channel sides allow for quicker and easier installation and increased system strength.

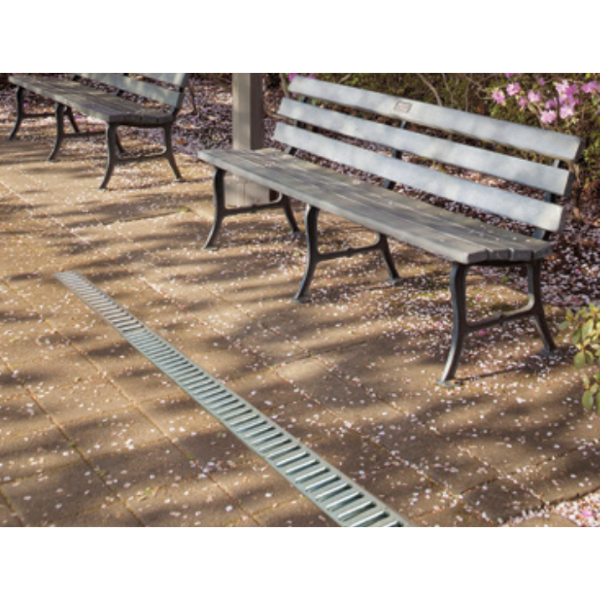

• Popular applications including driveways, courtyards, plazas, pool decks, parking lots, sports facilities and more.
• Compatible with the patented NDS Pro Series Qwik-Turn Radius Coupling to allow for curving layouts with up to 6 degrees of deflection between couplings and channels. NDS is the only drainage manufacturer to offer this incredible ability!

Product Specification:

• Part #: 864GMTL
• Load Rating: Class B
• ADA Compliant
• Loads of 61-175 psi.
• Recommend for medium-duty pneumatic tire traffic, autos and light trucks at speeds less than 20 m.p.h..
• Material:
• Channel: Polyolefin
• Grates: Galvanized Steel
• Colors: Light Gray / Galvanized Steel
• Length: 39-3/8"
• Width: 5-1/2"
• Height: 4-3/4"
• Weight: 6.15 Lbs.
• Fits:
• 3” (Hub) and 4” (Spigot) Sewer/Drain Pipe
• #4 Rebar

Technical Downloads:

• NDS 864GMTL: Specification Sheet
• NDS 864GMTL: Drainage Catalog
• NDS 864GMTL: Brochure

Product Media:

NDS 864GMTL 5" Pro Series Channel Drain: How to Improve your Drainage System

How do I choose the right NDS channel drain for my drainage system?

 How do I install an NDS Pro Series channel drain?
