MIFAB MR-500-NPB Pressure Drop Activated Trap Seal Primer Serving Up To 6 Drains With A Water Output of 1/2oz

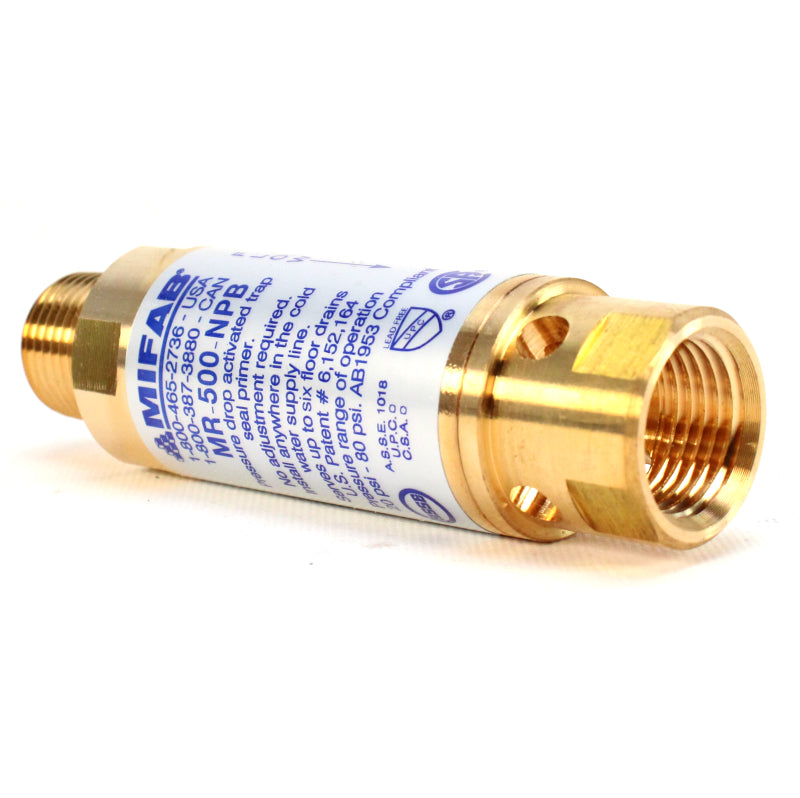

MIFAB® model MR-500-NPB pressure drop activated brass trap seal primer, with inlet opening of ½” (13) male N.P.T. and outlet opening of female ½” (13) N.P.T. Complete with four view holes and removable filter screen. Serves up to 6 floor drain traps and requires no adjustments and no air pre-charge.
MIFAB’s M-500 Series of pressure activated trap seal primers (MR-500-NPB, M1-500-NPB and M2-500-NPB) can be connected to any cold water line, and will be automatically activated when a valve or faucet, that is on the line, is opened. A pressure drop of three p.s.i. will activate all of the trap seal primers. MIFAB’s M-500 Series of trap seal primers can be disassembled in the field. Their unique design permits filter replacement without affecting the performance of the primer. The “O” ring seals are tested for reliability at a temperature range of -40 degrees to 450 degrees F. The M-500 Series of trap seal primers do not require adjustment. The opening range for all of MIFAB’s M-500 Series of trap seal primers is 20 to 80 p.s.i. All three models are listed with I.A.P.M.O. and C.S.A. and are tested and certified to the A.S.S.E. Standard 1018 and are so marked. U.S. Patent # 6,152,164.
- MIFAB MR-500-NPB: Specification Submittal
ALT Product Code:
