Mifab MI-G-2-PL Lil-10 10 GPM 20 Lbs. Capacity HDPE Grease Interceptor

Mifab MI-G-2-PL Lil-10 10 GPM 20 Lbs. Capacity HDPE Grease Interceptor.

Features & Benefits:

• HDPE injection molded for long lasting reliability
• Superior life-cycle performance versus traditional fabricated steel grease interceptors
• External Vented Flow Control Fitting
• Ribbed body design provides extra structural integrity
• Made in the USA
• Lifetime Warranty
• Lightweight
• Individually Boxed Interceptors
• Sealed Lid
• Easy to Remove Lid
• Easy to Clean

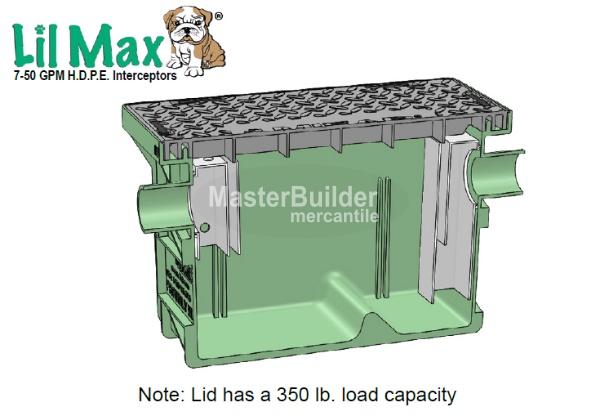

• Strong Lid: 350 Lbs.

Product Specifications:

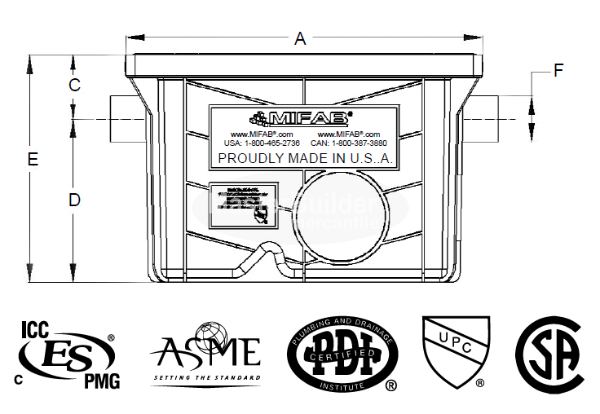

MIFAB® Series Lil-Max MI-G-2-PL HDPE injection molded hydromechanical grease interceptor with flow rating of 10 GPM and grease holding capacity of 20 LBS. Unit shall include: removable baffle assembly, deep seal trap covered by lid, sewer gas stopper, securing latches, external vented flow control fitting, internal air relief by pass, HDPE injection molded, non skid, rectangular gasketed lid(s). Interceptor shall be tested and certified to the P.D.I. Standard PDI-G101, CSA B481, A.S.M.E. A112.14.3 and listed with I.A.P.M.O. and I.C.C..

Function:

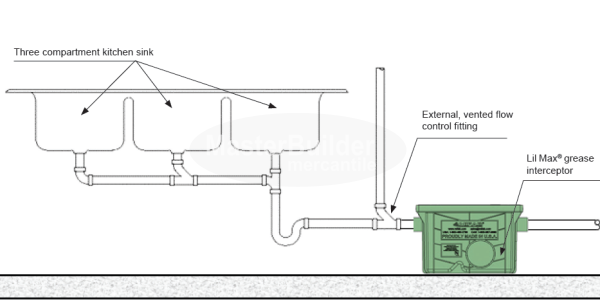

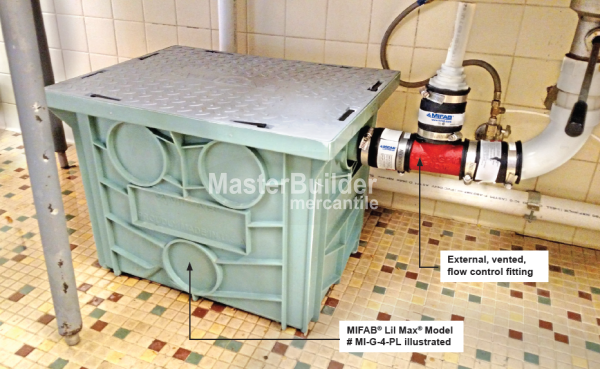

Used in restaurants, kitchens, institutions and other types of food processing areas where fat, oil and grease (FOG) drains with the wastewater. External flow control fitting must be installed according to manufacturer's instructions to control rate of flow into the interceptor and therefore, the operating efficiency. Interceptor may be installed on the ground, semi recessed or flush with the floor. Simple latch lid design permits fast and easy removal of the lid for cleaning and maintenance. HDPE injection molded body and lid is covered by a limited lifetime warranty. Sewer gas stopper prevents foul odors from entering the kitchen area through the interceptor.

Technical Downloads:

• Mifab MI-G-2-PL: Specification Submittal
• Mifab MI-G-2-PL: Installation Instructions
• Mifab MI-G-2-PL: Limited Lifetime Warranty
• Mifab MI-G-2-PL: Features and Benefits
