MIFAB F1324-C-25-1 Floor Area Drain w/ 9" Round Adjustable Heavy-Duty Nickel Bronze Grate, Membrane Clamp, Solid Secured Hinged Nickle Bronze Cover

Save $1,275.00

Price:
Sale price$1,624.99 Regular price$2,899.99

Description

MIFAB F1324-C-25-1 Floor Area Drain w/ 9" Round Adjustable Heavy-Duty Nickel Bronze Grate, Membrane Clamp, Solid Secured Hinged Nickle Bronze Cover

MIFAB F1324-C-25-1 Floor Area Drain w/ 9" Round Adjustable Heavy-Duty Nickel Bronze Grate, Membrane Clamp, Solid Secured Hinged Nickle Bronze Cover.

Product Overview:

Used in warehouses, mechanical rooms, parking garages and other membrane finished areas. 9” Round, adjustable tractor grate is used with all types of poured finished floors. Membrane clamp is provided to secure the waterproofing membrane.

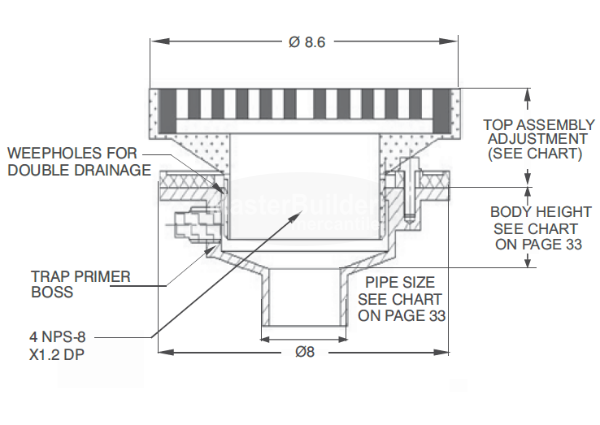

*PRODUCT IMAGE OF STANDARD F1320-C SERIES - IMAGE DOES NOT SHOW HINGED COVER.

Product Specification:

MIFAB® Series F1320-C lacquered cast iron floor drain with anchor flange, cast iron membrane clamp with primary and secondary weepholes for waterproofing membrane, and standard 1” (25) thick, 9” (235) round, (specify material finish) tractor grate. (For nonmembrane floors, use F1320 Series.)

Load Rating:

  • ANSI / ASME Rating: Special-Duty, Over 10,000 Lbs.

Connection Sizes:

  • 2": F1322-C
  • 3": F1323-C
  • 4": F1324-C
  • 6": F1326-C

Technical Downloads:
