MIFAB F1320-C Floor Area Drain w/ 9" Round Adjustable Heavy-Duty Tractor Grate, Membrane Clamp.
Used in warehouses, mechanical rooms, parking garages and other membrane finished areas. 9” Round, adjustable tractor grate is used with all types of poured finished floors. Membrane clamp is provided to secure the waterproofing membrane.

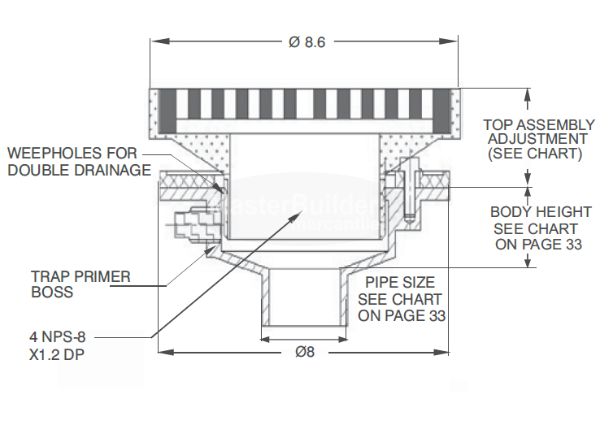

MIFAB® Series F1320-C lacquered cast iron floor drain with anchor flange, cast iron membrane clamp with primary and secondary weepholes for waterproofing membrane, and standard 1” (25) thick, 9” (235) round, (specify material finish) tractor grate. (For nonmembrane floors, use F1320 Series.)
- ANSI / ASME Rating: Special-Duty, Over 10,000 Lbs.
- 2": F1322-C
- 3": F1323-C
- 4": F1324-C
- 6": F1326-C
