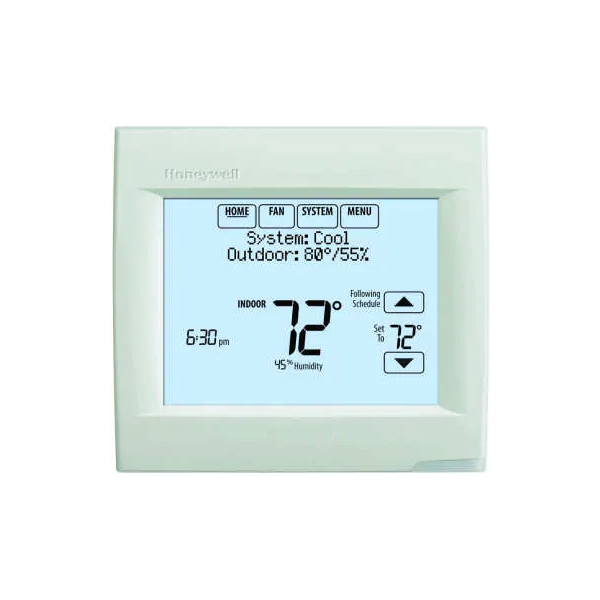

Honeywell TH8321R1001/U - Thermostat Wi-Fi VisionPro 8000

Features:

• Thermostat works standalone or with the THM5421R1021 Equipment Interface Module or with the TrueZONE Wireless Adapter.
• Smart Schedule - programs in seconds for any lifestyle.
• Patented interview based programming and installer setup.
• RedLINK™ wireless communication.
• Increase profit per job by including RedLINK™ accessories that provide comfort and convenience. RedLINK™ accessories include the RedLINK™ Internet Gateway, Portable Comfort Control (PCC), Wireless Outdoor Sensor, Wireless Indoor Sensor, Wireless Entry/Exit Remote, Wireless Vent and Filter Boost Remote, TrueSTEAM™ humidifier with Wireless Adapter and TrueZONE® zoning panel with Wireless Adapter.
• Selectable for residential and light commercial applications. Meets commercial code and is title 24 compliant.
• Light commercial - commercial language (occupied and unoccupied), schedule holidays and custom events, remote setback, economizer and time of day. Remote Setback requires the THM5421R1021 Equipment Interface Module.
• Plain language setup, no manual needed.
• Alerts and User Interactions Log - Keeps a searchable history of alerts and setting changes to the thermostat to determine if there is a system malfunction or if the issue was caused by a user error. Saves time in troubleshooting and points the technician in the right direction. The Alert and User Interaction Logs are viewable on a computer after you download them from the thermostat to a microSD card.
• Customizable Service Reminders allow dealers to remind their customers when its time to call for service, when their warranty is expiring and to provide customized alerts.
• MicroSD port for copying the Installer Setup, Customizable Reminders, Custom Events and Holidays to multiple thermostats.
• MicroSD port for adding the dealer's contact information on the screen.
• 1 assignable output on the TH8321 model to control humidification, dehumidification, ventilation or a stage of heating/cooling.
• 3 assignable outputs on the Equipment Interface Module to control humidification, dehumidification, ventilation or a stage of heating/cooling. The TH8110 and TH8320 models require the use of a Wireless Indoor Sensor to control humidification and dehumidification.
• 1 assignable input can be used with a wired outdoor, indoor or discharge sensor.
• 4 assignable inputs on the Equipment Interface Module can be used with wired outdoor, indoor or discharge sensors, occupancy sensor for remote setback and dry contact devices to trip pre-packaged or custom alerts such as a full drain pan or water leak.
• Extend wireless range of the Equipment Interface Module by connecting a THM4000R1000 Wireless Adapter to the ABCD terminals.
• Dual powered - battery or hardwired (C wire).
• Precise temperature control (+/- 1° F) for reliable and consistent temperature.
• Multiple staging options to provide comfort or energy savings.
• TH8110R1008, TH8320R1003, and TH8321R1001 are ENERGY STAR^® Certified

Product Specifications:

• Application - Up to 2 Heat/2 Cool Conventional Systems; Up to 3 Heat/2 Cool Heat Pumps
• Hazmat Information - UN 3091, LITHIUM METAL BATTERIES CONTAINED IN EQUIPMENT, 9
• Dimensions - 4 5/8 in. High, 4 15/16 in. Wide, 1 1/8 in. Deep
• Includes - VisionPRO® 8000 thermostat
• Used With - Works standalone or with optional THM5421R1021 Equipment Interface Module and RedLINK™ accessories
• Electrical Rating - 20 to 30 Vac or 750 mV
• Frequency - 50 Hz; 60 Hz
• Stages - Up to 3 Heat / 2 Cool Heat Pump or Up to 2 Heat / 2 Cool Conventional when used standalone; Up to 4 Heat / 2 Cool Heat Pump or Up to 3 Heat / 2 Cool Conventional when used with the Equipment Interface Module
• Electrical Connections - Screw terminals
• Switch Positions (System) - HEAT-OFF-COOL-AUTO-EM.HEAT
• Switch Positions (Fan) - AUTO-ON-CIRC-FOLLOW SCHEDULE
• Power Method - Dual Powered: Battery or Hardwire
• Programmability - 7 Day Program or Non-Programmable
• Terminal Designations - R, RC, C, W-O/B, W2-AUX/E, Y, Y2, G, A-L/A, K, S1 S1
• Operating Temperature Range (F) - 32 F to 120 F
• Operating Temperature Range (C) - 0 C to 48.9 C
• Setting Temperature Range (F) - Heat: 40 F to 90 F; Cool 50 F to 99F
• Setting Temperature Range (C) - Heat: 4.5 C to 32.0 C; Cool: 10 C to 37.0 C
• Humidification Setting Range - Cooling: 40 to 80% RH. Heating: 10 to 60% RH
• Dehumidification Setting Range - 40 to 80% RH
