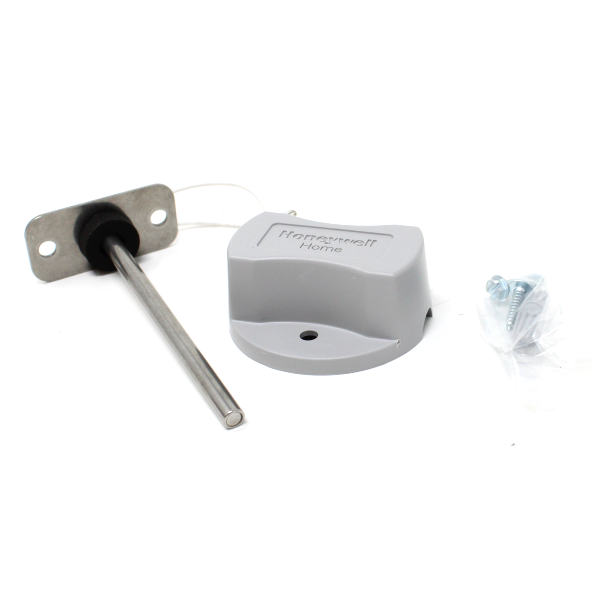

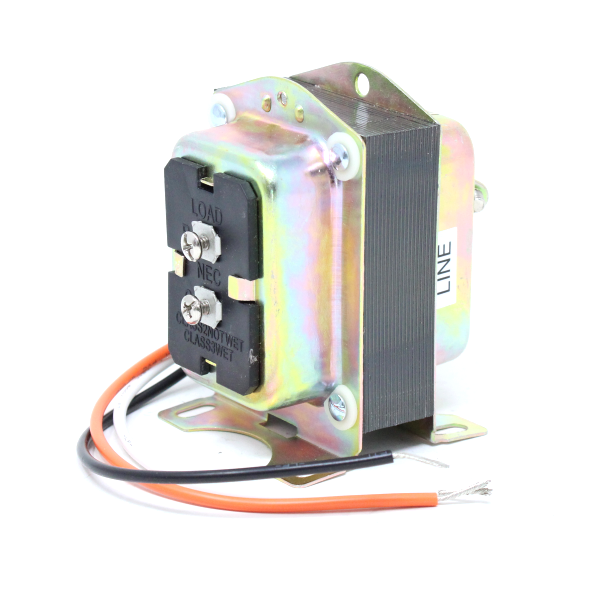

Honeywell Resideo HZ322K/U TRUZONE KIT. Includes HZ322 Zone Wireless Control Panel, C7735A1000 Discharge Air Temperature Sensor, & AT140A1042 Transformer
Features:
The TrueZONE® HZ322 Panel is for conventional and heat pump applications up to 3 zones (2H, 2C) at 24 Volts. It features robust push terminals, common-sense LEDs, variable-speed fan control, and leaves a smaller environmental footprint.
- Intuitive Installer setup. Easy-to-follow, digital display uses real language to guide installer through four easy steps.
- Standard Checkout Procedure
- Robust Push Terminals
- Common-Sense LEDs
- Clean, Professional Installation
- Smaller Footprint
- Variable-Speed Fan Control
- Discharge Air Temperature Staging
- RedLINK™ enabled for wireless operation when used with THM4000R1000 wireless adapter
- Controls up to 2 Heat/2 Cool conventional or 2 Heat/1 Cool heat pump
Product Specifications:
- LED Functions - Stage of heat and damper state
- Compatible Sensor - Discharge Air Temperature Sensor
- Auto Changeover - Yes
- Stages - 2 Heat/2 Cool
- Product Height - 11.5 in
- Product Length - 8in
- Product Width - 1.86in
- Warranty - 5 Years
