Description

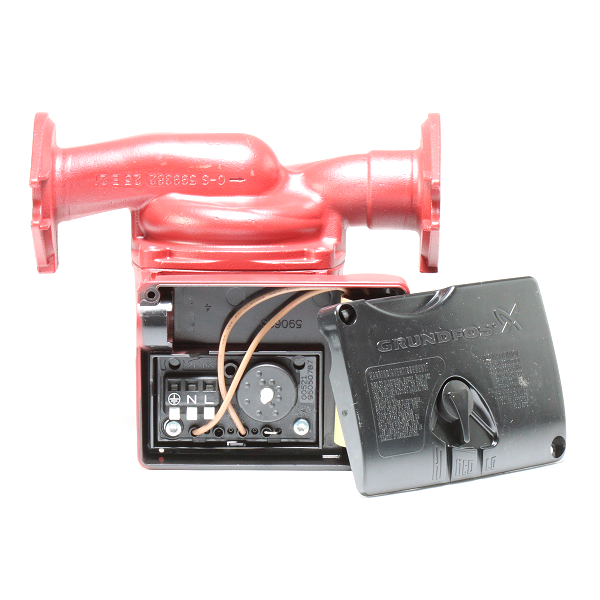

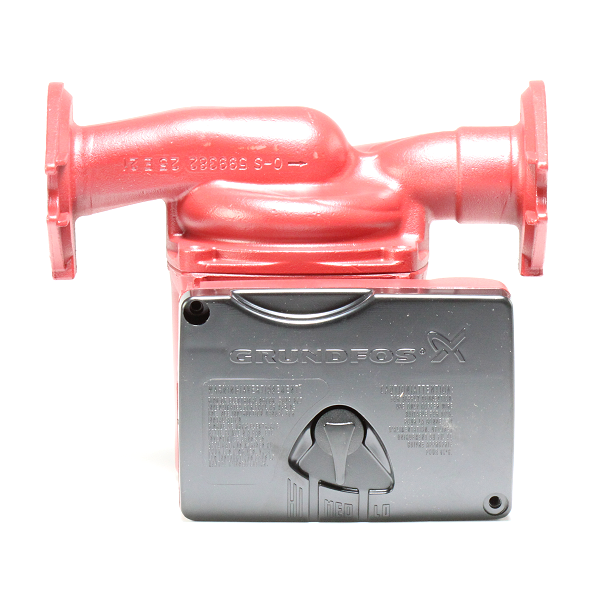

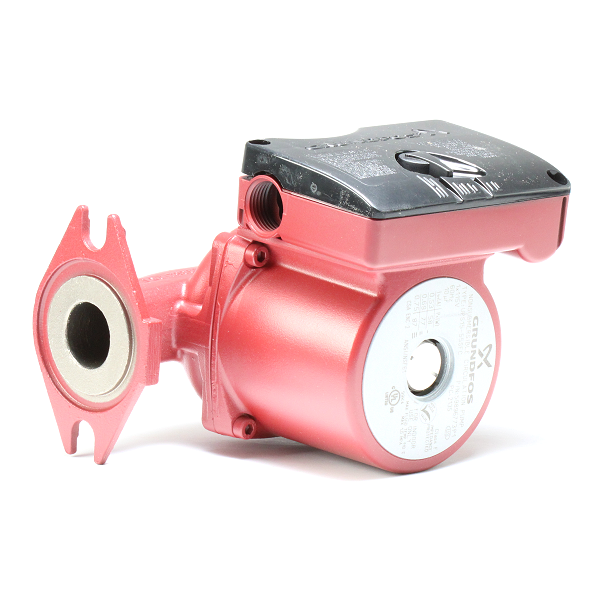

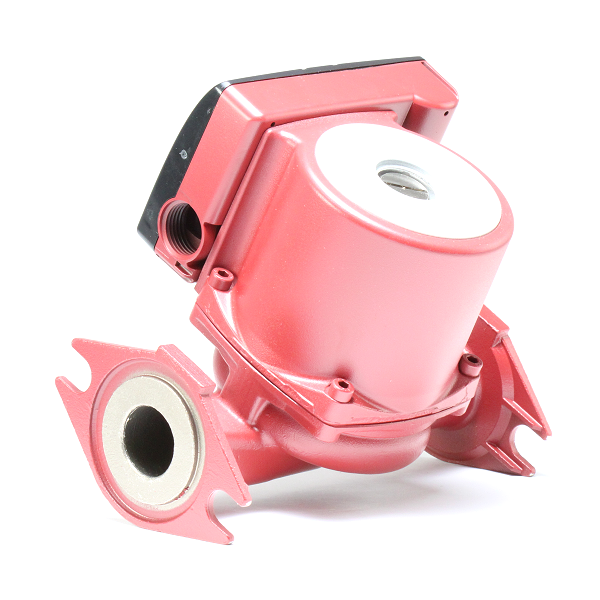

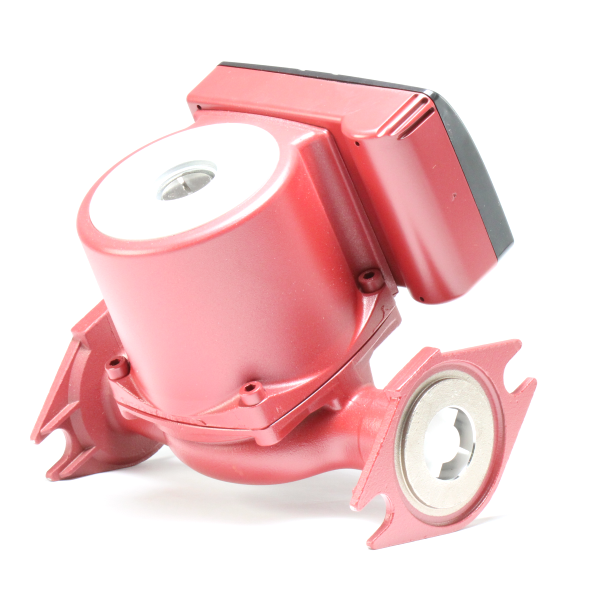

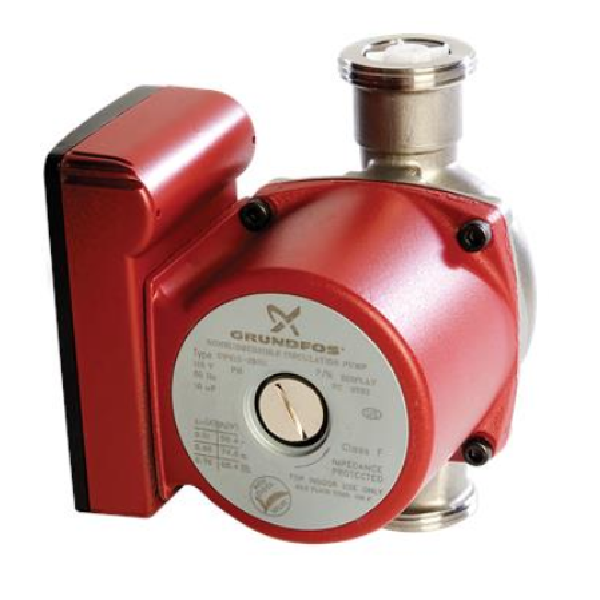

Grundfos 59896773 UPS 15-55 SFC Stainless Steel Circulator Pump For Domestic Hot Water
Features:
- Ceramic shaft and radial bearings.
 - Carbon axial bearing.
 - Stainless steel rotor can and bearing plate.
 - Impeller - Corrosion-resistant impeller, composite, PES
 - Pump Housing - Stainless Steel pump housing
 - Phase - 1-phase motor

Specifications:
Technical
| Speed Number | 3 |
| Maximum flow | 25.1 US gpm |
| Max flow | 25.1 US gpm |
| Maximum head | 18.05 ft |
| Head max | 18.05 ft |
| Approvals on nameplate | UL, CSA |
| Valve | pump with built-in isolating and non-return valves |
Materials
| Pump housing | Stainless steel |
| DIN W.-Nr. 1.4301 | |
| AISI 304 | |
| Impeller | Composite, PES |
Installation
| Maximum ambient temperature | 104 °F |
| Ambient max at 176°F liquid | 176 °F |
| Maximum operating pressure | 145.04 psi |
| Flange standard | USA Oval |
| Type of connection | S.S. Flange |
| Pipe connection | 2 - Bolt Flange |
| Pressure stage | PN 10 |
| Port-to-port length | 6 1/2 in |
Liquid
| Pumped liquid | Water |
| Liquid temperature range | 35.6 .. 230 °F |
| Selected liquid temperature | 140 °F |
| Density | 61.35 lb/ft³ |
Electrical Data
| Power input in speed 1 | 0.0778 HP |
| Power input in speed 2 | 77 W |
| Max. power input | 87 W |
| Main frequency | 60 Hz |
| Rated voltage | 1 x 115 V |
| Current in speed 1 | 0.53 A |
| Current in speed 2 | 0.69 A |
| Current in speed 3 | 0.75 A |
| Capacitor size - run | 10 µF/180 V |
| Number of poles | 2 |
| Insulation class (IEC 85) | F |
| Motor protection | CONTACT |
| Thermal protec | internal |
Controls
| Pos term box |
 9H  |
Others
| Gross weight | 6 lb |
| Country of origin | US |
| Custom tariff no. | 8413.70.00.21 |
