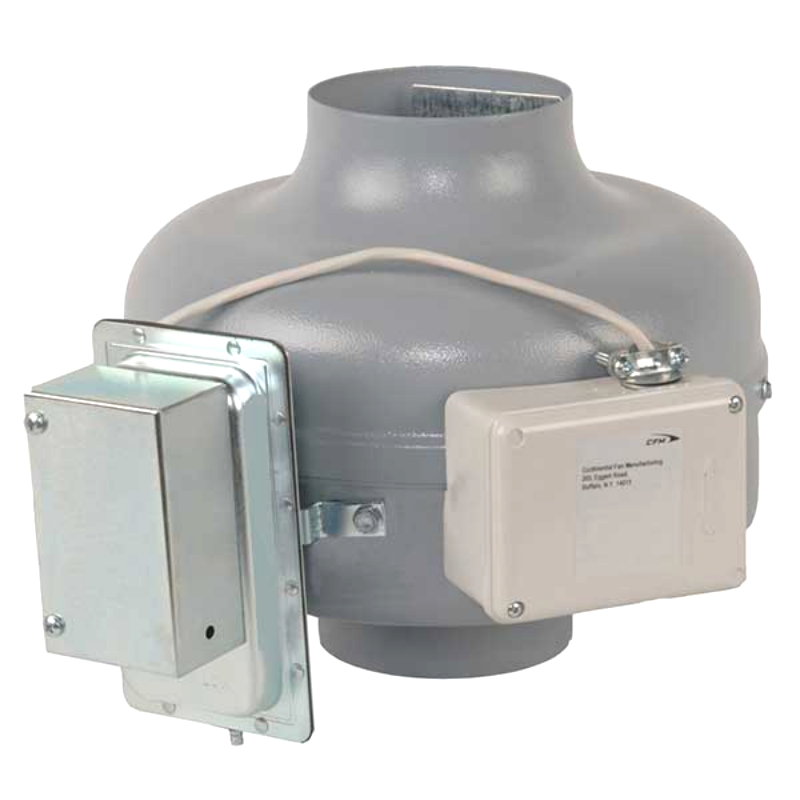

CONTINENTAL FAN CFM DVK100B-PM 4" Dryer Booster Fan Kit w/ Mounted Pressure Switch 150 CFM.
Product Overview:
The DVK100B-PM Dryer Booster Fan w/ Mounted Pressure Switch is designed to enhance the drying efficiency of residential and commercial clothes dryers. The dryer booster fan features a quiet and efficient backward curved impeller that is capable of overcoming long duct runs. The pre-mounted and pre-wired pressure switch simplifies the installation of the DVK booster fan.
The PST120V pressure switch in the DVK100B-PM Dryer Booster Fan Kit is an airflow proving switch. It automatically activates the dryer booster fan when it senses positive air pressure from an operating dryer. The pressure switch features an integral timer with a 10 minute ON and 15 second OFF cycle, enabling the fan to restart as long as the dryer is operating.
DVK fans are designed to enhance the drying efficiency of residential, commercial, and industrial clothes dryers.
Features & Benefits:
- Features & Benefits of a Dryer Booster Fan:
- Boost dryer exhaust efficiency, reduce drying times, and deliver cost savings
- External rotor motor design for quiet and efficient operation
- Backward-curved centrifugal impeller to over come long duct runs
- In-line construction to reduce lint build-up
- Heavy gauge, drawn steel housing with baked epoxy finish
- High temperature construction: 60 C/140 F
- Thermal overload protection
- Automatic reset
- Five year warranty
- Features of CS120AF Current Sensor:
- Integral recycling delay timer; 10 min ON, 15 sec OFF
- Operating temperature -40 to 180 F (-40.0 to 82.2 C)
- 120V input
- Fixed to operate on 0.05″+/-0.02″ w.c. pressure rise
- 1/4″ connector with flexible tubing and sampling probe
- UL, CSA
Helpful Tips for a Dryer Booster Fan:
- Mount the DVK fan at least fifteen linear feet from the clothes dryer.
- Each 90-degree elbow is equivalent to five linear feet of duct.
- DVK fans are designed to vent up to 100 feet of 4-inch rigid duct.
- Rigid duct is recommended to optimize the fans performance. If using flex duct, stretch it as smooth as possible. (Always consult local codes before selecting a duct type.)
- For duct runs in unheated spaces, Continental Fan recommends insulated duct to reduce the effects of condensation.
- An LT100 lint trap may be installed between the dryer and the booster fan to reduce lint build-up and maintenance on the fan.
Activation Modes:
Continental Fan does not recommend wiring a dryer booster fan directly into a clothes dryer. For this reason, booster fan kits are available with our recommended activation methods. If the kit with current sensor doesn’t suit your application, consider one of our other activation methods.
- DVK100B-C with Current Sensor
- DVK100B-P with Pressure Switch
- DVK100B-PM with Pressure Switch Mounted

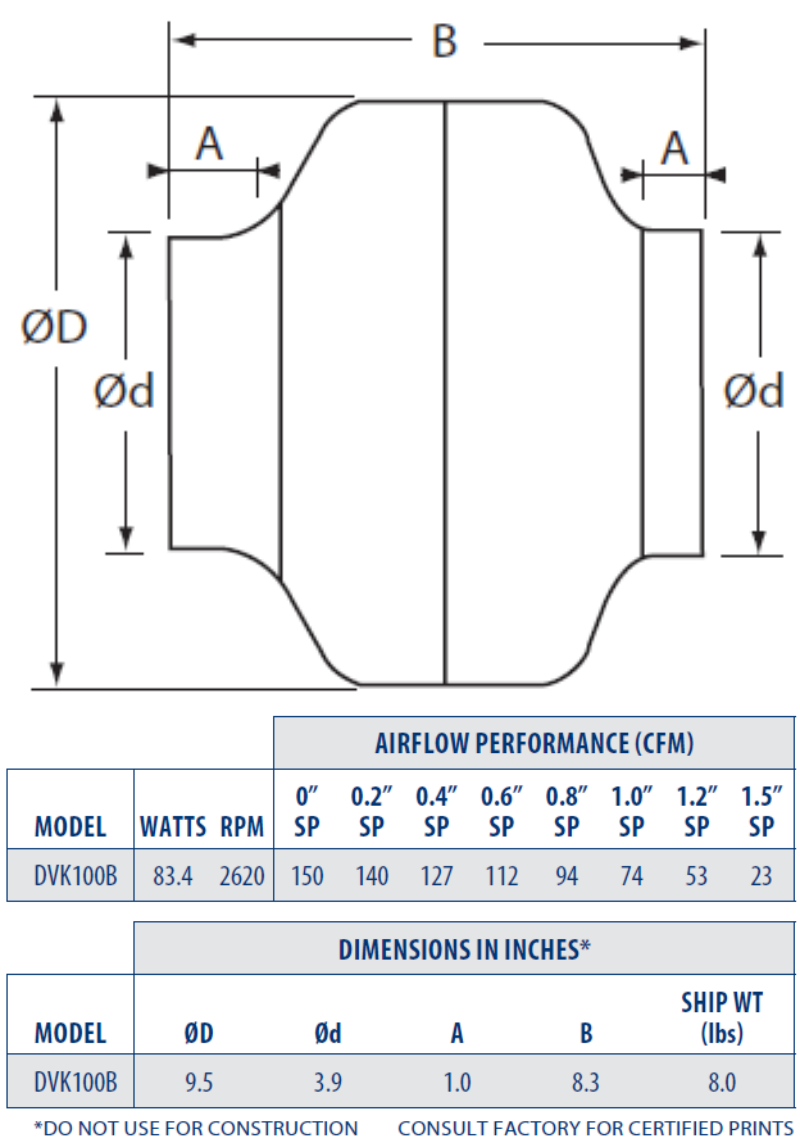

Technical Data:
Technical Downloads:
- CFM DVK100B-PM: Brochure
- CFM DVK100B-PM: Dimensional Drawing
- CFM DVK100B-PM: Installation
