C-PORT C630 6-7/16" x 6" x 28.8" Rubber Roof Support with 1-5/8" Galvanized Steel Channel

C-PortSKU: MIF-CPO-C630

Price:
Sale Price$152.99 CAD
Description

C-PORT C630 6-7/16" x 6" x 28.8" Rubber Roof Support with 1-5/8" Galvanized Steel Channel

C-PORT C630 6-7/16" x 6" x 28.8" Rubber Roof Support with 1-5/8" Galvanized Steel Channel

Product Overview:

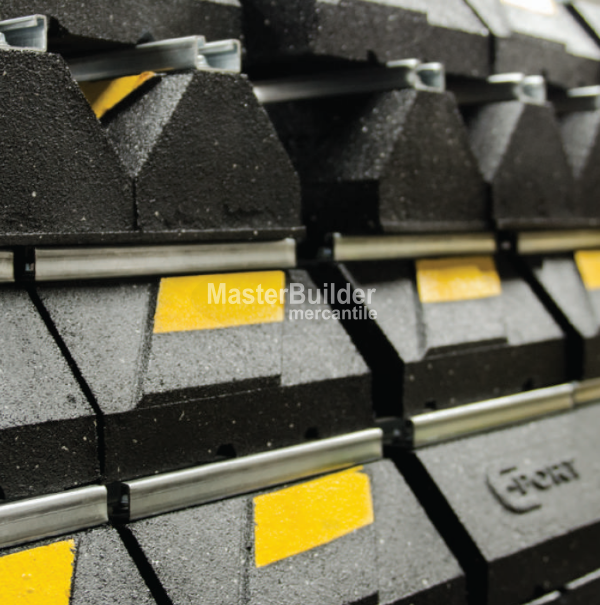

  • The C6 Series is designed for superior support of gas and refrigeration piping systems, cable tray, electrical conduit, multiple lines, HVAC
    equipment and many other applications. Both series provide additional height, beyond the capability of the original C Series. The C6 Series is applicable where building codes require pipes to be at least 6” above the roof surface.
  • It is available in any length as a roof curb (sleeper) replacement.
  • Maximum Load 750 LBS per Foot.
  • Strut Clamps sold separately. Click Here
SKU HEIGHT WIDTH LENGTH WEIGHT MAX LOAD
C510 5-5/8" (143mm) 6" (152mm) 9.6" (244mm) 6.25 lbs. 750 lbs.
C610 6 7/16" (164mm)
6" (152mm) 9.6" (244mm) 6.67 lbs. 1500 lbs.
C620 6 7/16" (164mm) 6" (152mm) 19.2" (488mm) 13.34 lbs. 2250 lbs.
C630 6 7/16" (164mm) 6" (152mm) 28.8" (732mm) 20.01 lbs. 3000 lbs.
C640 6 7/16" (164mm) 6" (152mm) 38.5" (978mm) 26.68 lbs. 3750 lbs.

Features & Benefits:

  • 100% Recycled Rubber
  • No supplemental pad
  • No float
  • No deterioration
  • Dampens vibrations
  • Compatible with most rooftop materials

Product Applications:

  • Gas Pipes
  • Refrigeration Pipes
  • Electrical Conduit
  • HVAC
  • Platform Systems
  • And more...

Technical Specification:

  • Material:
    • Base: 100% recycled rubber, UV resistant
    • Strut: 14-gauge galvanized channel strut (13/16" high)
  • Warranty: 10-Years
  • Recommended Spacing: Refer to Local Code
  • May qualify for L.E.E.D. credits
