Description

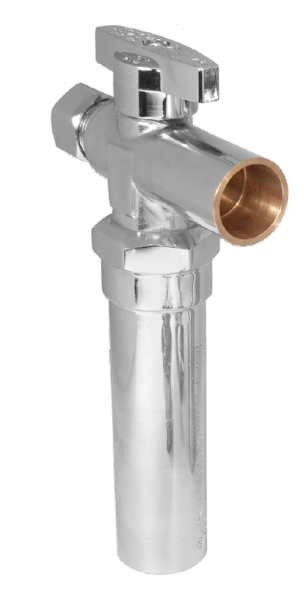

BMI 31384 5/8"C x 3/8"OD Straight Stop - Chrome Plated Valve - Hammer Arrester - 1/4 Turn - Lead Free
Features & Benefits:
- Forged brass & copper with total chrome plated
 - Quarter turn open & shut
 - Self-lubricating P.T.F.E. seats
 - Double O-ring for more safety
 - Piston type (permanently sealed chamber) arrester
 - Copper body chamber with brass cap & brass piston, AA size
 - Maximum temperature: 212 °F (100 °C)
 - Maximum pressure: 250 psi (17.5 kgf/cm 2 )
 - Absorptive capacity: 150 psi (10.5 kgf/cm 2 )

Compliance:
-
Certified By:
 - IAPMO (cUPC)

-
Complies With:
 - ASME A112.18.1
 - CSA B125.1-11
 - F1807
 - F1960
 - ANSI/NSF 61
 - ANSI/NSF 372
 - ANSI/NSF 14 PDI WH201
 - ASSE 1010

Technical Downloads:
- BMI Lead Free Chrome Supply Valves W/ Hammer Arrester: Specification Submital
 - BMI Lead Free Chrome Supply Valves: W/ Hammer Arrester: Promotional Flyer
