Description
.

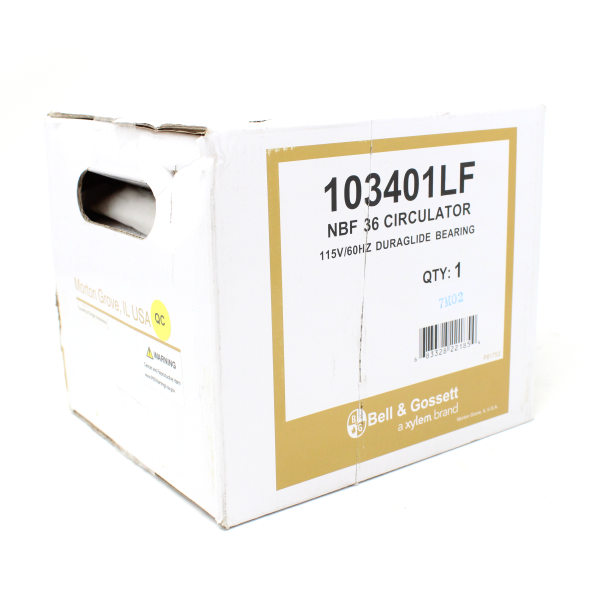

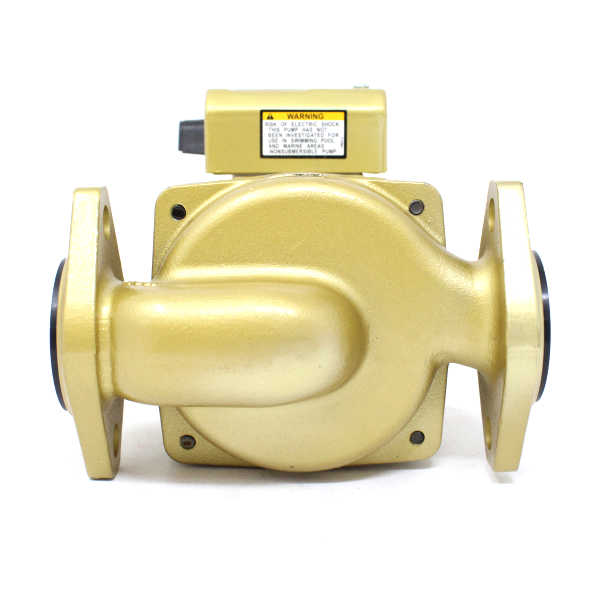

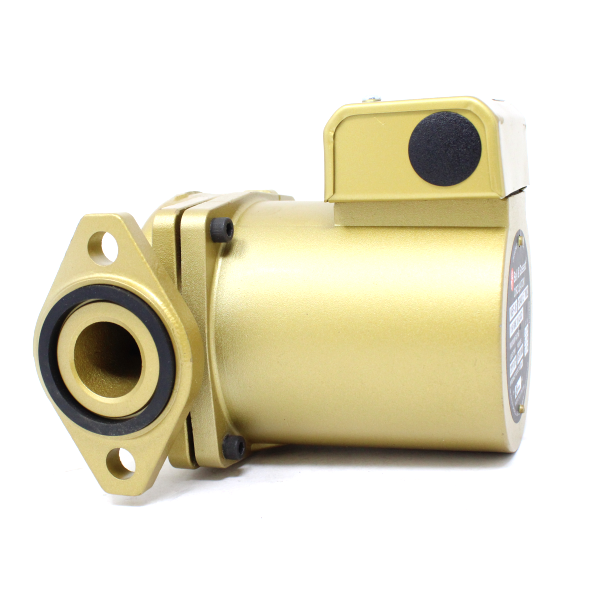

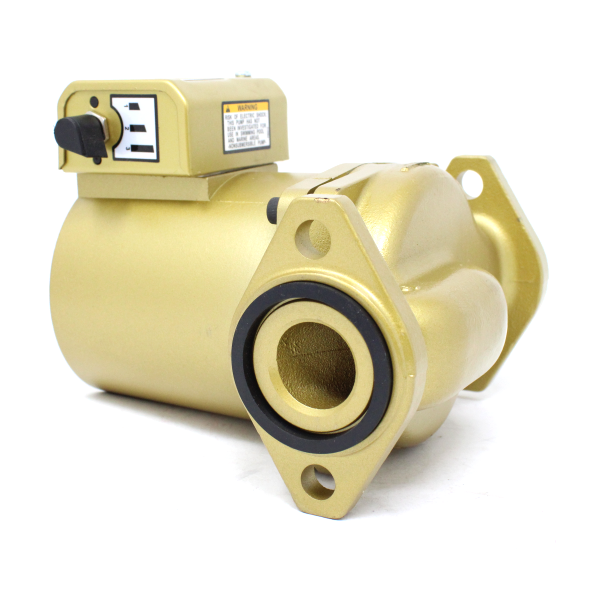

Bell & Gossett 103401LF NBF-36 Bronze Circulator Pump 1/6HP 3 Speed.
Specifications:
| Product Section | Centrifugal Pumps & Accessories |
| Product Subsection | Close Coupled Pumps |
| Product Series | Series NBF |
| Model | NBF-36* |
| Description | 103401LF |
| Submittal ID | A-127L |
| RPM | 3300 |
| A-Dim | 5-3/4 (146) |
| B-Dim | 3-9/16 (91) |
| Connection | Flange 3/4, 1, 1-1/4, 1-1/2 |
| C-Dim | 3-3/16 (81) |
| D-Dim | 6-3/16 (157) |
| E-Dim | 5-3/8 (137) |
| F-Dim | 6-3/8 (162) |
| G-Dim | 3-3/16 (82) |
| CAD model unit system | inch/pound |
| AutoCAD / AutoCAD MEP support | https://dpk3n3gg92jwt.cloudfront.net/domains/bellgossett/ACIS_file_Import_Instruction.pdf |
| Download Revit File | https://dpk3n3gg92jwt.cloudfront.net/domains/bellgossett/revit_families/2021.01 NRF_NBF_SSF_LR Pumps.zip |
| Contact CAD Support | http://www.product-config.net/catalog3/bellgossett-support.jsp?id=103401LF |
| Adobe 3D PDF help | http://www.product-config.net/catalog3/help/3dviewerhelp.html |
| WATTS | 270 |
| F.L.AMPS | 2.30 |
| Approx.Shpg. Weight | 13.1 (6.0) |
