Beacon-Morris HB108 Horizontal Hydronic Unit Heater, 108,000 BTU/Hr.

Beacon MorrisSKU: MES-HBB108

Price:
Sale Price$3,610.99 CAD
Description

Beacon-Morris HB108 Horizontal Hydronic Unit Heater, 108,000 BTU/Hr.

Beacon/Morris® HB108 (HBB108) Horizontal Hydronic Unit Heater, 108,000 BTU/Hr. Output (Steam) | 78,400 BTU/Hr. Output (Water), Steam or Water Applications.

Features & Benefits:

  • Approved for steam or water applications.
  • Wall or ceiling mountable.
  • Coil style header.
  • Residential or commercial applications.
  • 20-gauge die-formed steel casing.
  • Lead-free, chromate free, electrostatically applied paint finish.
  • Heavy drawn seamless copper tubing elements and headers.
  • Cast bronze pipe connection saddles.
  • Aluminum fins.
  • All units are factory tested.
  • Multiple motor types available: open-drip, totally enclosed, explosion proof.
  • Multiple supply voltages available.
  • Fan blades are factory balanced aluminum hub type.
  • Spark-proof blades.
  • Quiet operation.

Technical Details:

PRODUCT SPECIFICATIONS:
BRAND: Beacon/Morris®
MANUFACTURER MODEL NUMBER: HBB108
TYPE: Horizontal Hydronic
OUTPUT (BTU/Hr) 2 LB STEAM 60°F ENTERING AIR: 108,000
OUTPUT (BTU/Hr) HOT WATER 200°F IN 60°F ENTERING AIR: 78,400
LENGTH INCHES: 19-5/8"
WIDTH INCHES: 13-13/16"
HEIGHT INCHES: 24"
WEIGHT (LBS): 49

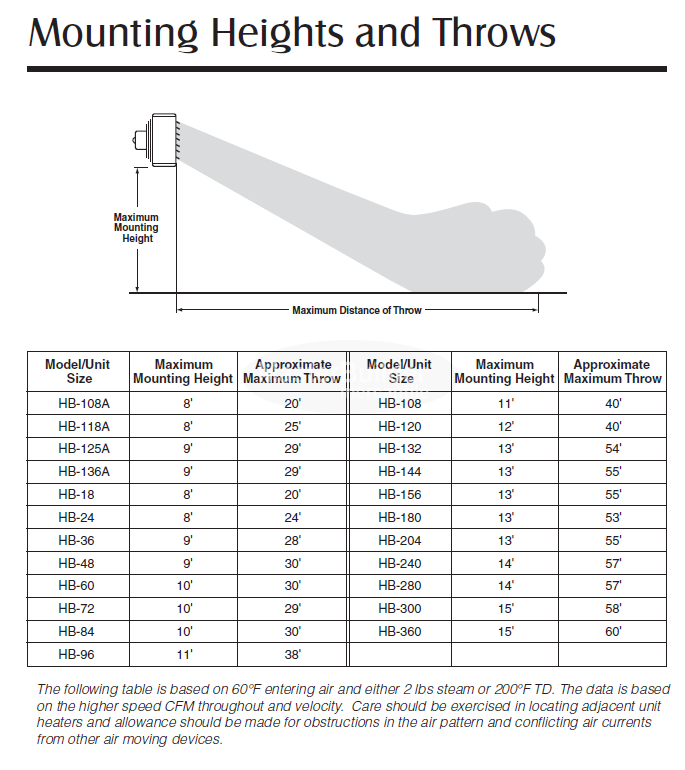

MAXIMUM MOUNTING HEIGHT (FEET): 11'
HEAT THROW (FEET): 40'
CFM (HIGH): 1800
RPM (HIGH): 1000
VOLTAGE: VARIES
PHASE: VARIES
WATER FLOW (GPM): 7.9
AMPS (High Speed): 2.2
PRESSURE DROP FT./H20: 0.36
FAN DIAMETER INCHES: 16"
OUTLET VELOCITY (FPM): 1000
FINAL AIR TEMPERATURE °F (HOT WATER): 100° F - 103° F
FINAL AIR TEMPERATURE °F (STEAM): 115° - 120° F
COLOR: Grey
ASSEMBLY: Assembled
CONSTRUCTION: Steel
APPROVALS: ETL, ETLc
LIMITED WARRANTY (YEARS): 1


Technical Documentation:

Beacon-Morris HB Series: Specification Submittal
Beacon-Morris HB Series: Installation and Maintenance Instructions
Beacon-Morris HB Series: Catalog
