AIC LA14-40 Brazed Plate Heat Exchanger Single Wall (3/4 MIP Connection)

AICSKU: AIC LA14-40

Price:
Sale Price$531.99 CAD
Description
AIC LA14-40 Brazed Plate Heat Exchanger Single Wall (3/4 MIP Connection)

AIC LA14-40 Brazed Plate Heat Exchanger (3/4 MIP Connection).

Product Overview:

Designed for Maximum Performance

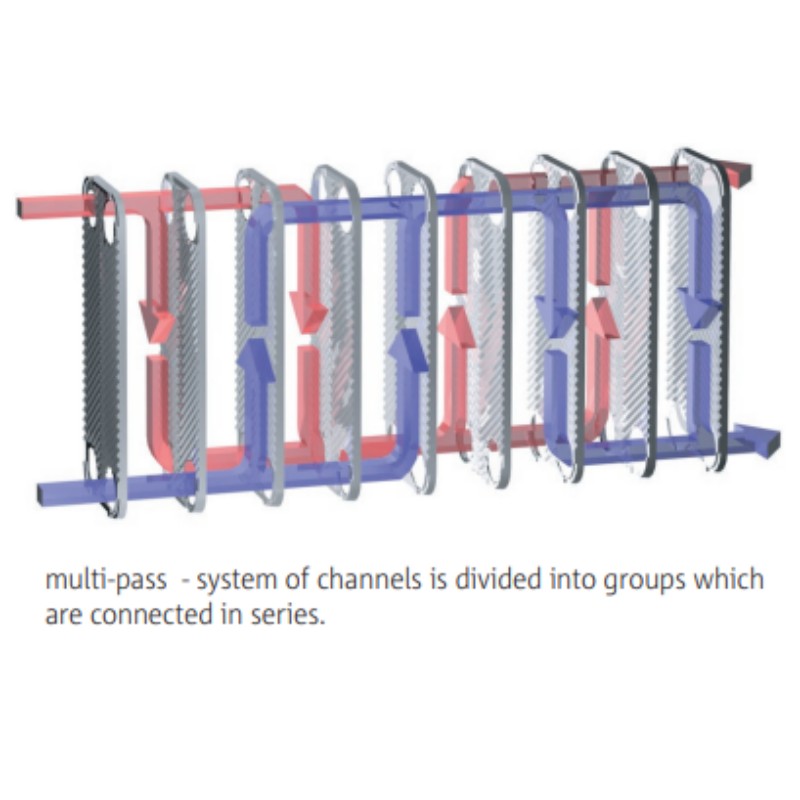

Brazed plate heat exchangers consist of stainless steel plate plates, which have embossed chevron patterns. The plates are turned 180° to each other, causing the plate ridges to intersect, and creating a lattice of intersecting channels. The fluids can flow in counter-current or co-current way.

Special corrugation patterns promote high turbulence flow. Turbulence dramatically improves heat transfer rates and reduces the amount of deposits inside the unit.

Applications:

  • Condensers and evaporators in refrigeration systems
  • Oil coolers
  • Close approach fluid-to-fluid heat transfer
  • Industrial process heat recovery
  • Solar and geothermal heating
  • Hydronic heating and cooling
  • District heating and cooling
  • Gas cooling

Standard Materials:

  • Stainless Steel SS316L Heating Plates

Brazing Materials:

  • Copper, Nickel, and Stainless

Maximum Working Pressure

  • Up to 650 PSI (4.48 MPa)

Maximum Working Temperature

  • Up to 445°F (230°C)

Technical Downloads
