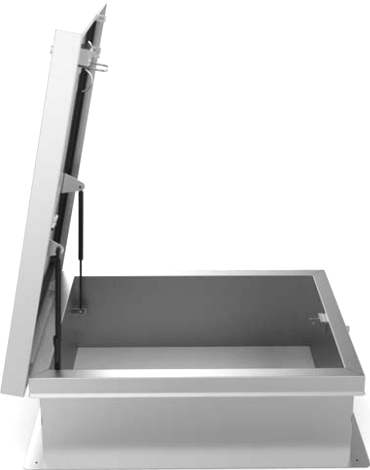

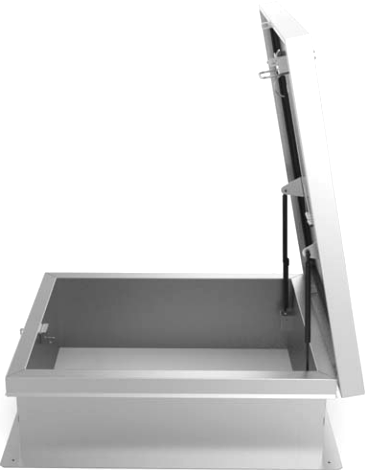

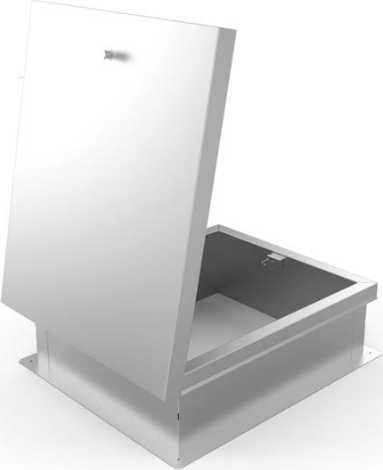

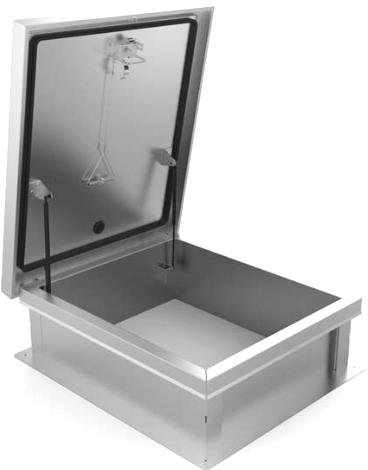

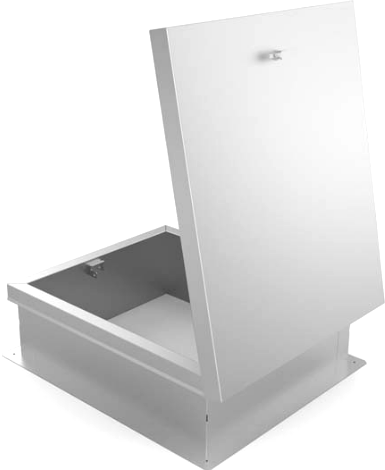

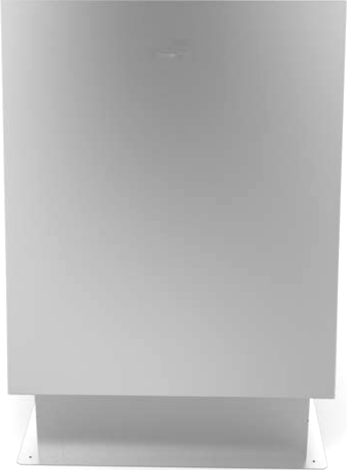

Acudor RHA3232 24" x 24" Aluminum Ladder Access Roof Hatch
Project Pricing, Discounts, & Custom Sizes Available. Please contact us at info@masterbuildermercantile.com
Application:
- Acudor ladder access roof hatches are designed to provide convenient economical access to the roof of the building.
Features & Benefits:
- Weather tight construction.
- 12" high insulated curb.
- Stainless steel hardware.
- Convenient one hand operation.
- Supports 40lbs/sqft live load.
Door Specifications:
- Cover: Double skin construction with 1" polyiso R6 insulation and continuous EPDM foam weather / draft seal gasket that is attached to the inside of the cover to provide a flush, tight fit. Designed to support a live load of 40lbs/sqft, the cover is 11 gauge aluminum with a 20 gauge aluminum inside liner.
- Curb: 11 gauge aluminum with 1" thick polyiso R6 insulation at curb exterior. Curb is 12" high with 3.375" wide bottom flange an pre-drilled mounting holes.
- Hinge: Heavy duty aluminum pintle hinges with 3/8" SS pin.
- Opening: Gas Spring operators allow cover to open and close with ease. Stainless Steel inside pull handle allows for easy control when closing cover.
- Door Latch: Self latching, stainless steel outside T handle with stainless steel inside lock and lever assembly. Unit also has inside and outside padlock provisions.
- Finish: Mill.
Options:


RH-RGS: Safety Rail System with Self Closing Gate Designed to Meet OSHA Standards.
Technical Documentation:
Acudor RHA Aluminum Ladder Access Roof Hatch Product Page: Click Here.
Acudor RHA Aluminum Ladder Access Roof Hatch Specification Submittal: Click Here.
Acudor RH-RGS Safety Rail System Product Page: Click Here.
Acudor RH-RGS Safety Rail System Specification Submittal: Click Here.
