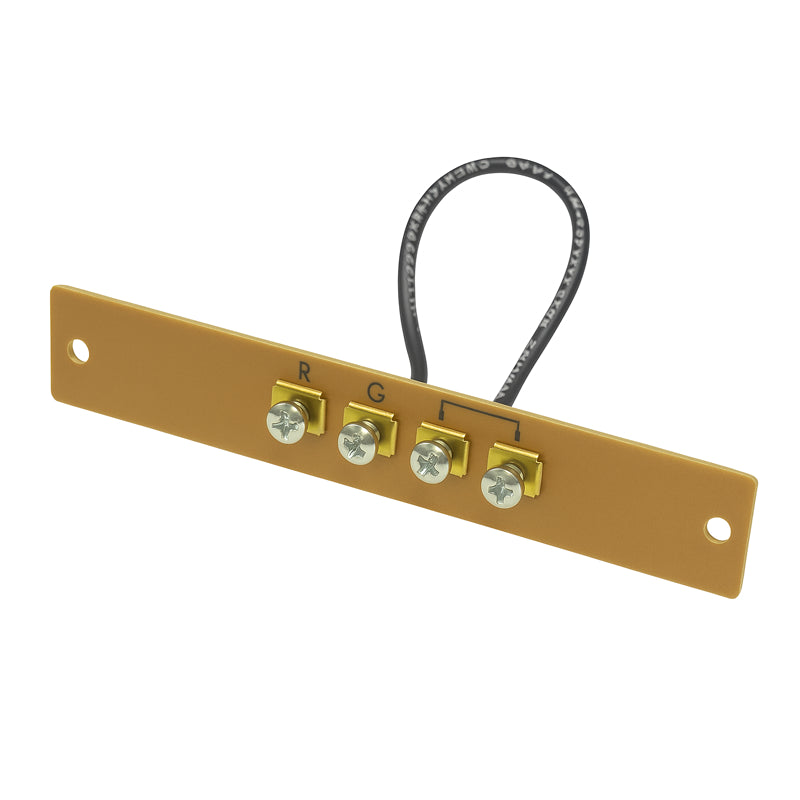

Beacon-Morris 11J11R04609 Unit Heater Terminal Block Plate

Product Overview

The Beacon-Morris 11J11R04609 Unit Heater Terminal Block Plate is a genuine OEM replacement part engineered for a wide range of BRT, BRU, BTU, and BST Series unit heaters. This electrical mounting component serves as the primary connection point for your heater’s internal wiring, ensuring safe, organized, and reliable electrical distribution within the unit.

Crafted from high-quality, heat-resistant materials, the terminal block plate is designed for long-term durability in demanding environments. Whether you’re performing a full rebuild or a maintenance repair, this replacement part restores proper electrical integrity and safety to your unit heater system.

Features & Benefits

• OEM Replacement Part – Designed by Beacon-Morris for guaranteed fit and performance.
• Wide Model Compatibility – Works with multiple BRT, BRU, BTU, and BST Series models.
• Electrical Safety Assurance – Maintains proper wiring alignment and secure terminal connections.
• Durable Construction – Built from heat-resistant materials for longevity.
• Easy Installation – Pre-drilled holes simplify replacement during service or rebuilds.

Specifications

• Part Number: 11J11R04609 (Alternative Codes: 11J11-04609)
• Component Type: Terminal Block Plate
• Function: Electrical connection and distribution for unit heater wiring
• Compatible Models:
• BRT Series: BRT030, BRT045, BRT060, BRT075, BRT090, BRT105, BRT120
• BRU Series: BRU030, BRU045, BRU060, BRU075, BRU090
• BTU Series: BTU030, BTU045, BTU060, BTU075, BTU090, BTU100, BTU125, BTU150, BTU175, BTU200, BTU250, BTU300, BTU350, BTU400
• BST Series: BST030, BST045, BST060, BST075
• Material: Heat-resistant composite or metal
• Application: Electrical terminal mounting plate for unit heaters

Installation Tips

• Disconnect electrical power before installation or service.
• Confirm correct wiring configuration using the unit’s schematic diagram.
• Secure the plate firmly to prevent vibration or wire strain.
• Inspect terminals for corrosion and replace if necessary.
• Professional HVAC installation is recommended for safety compliance.

FAQs

Q: What does the terminal block plate do?
A: It provides a stable, insulated base for electrical terminals, ensuring safe wiring connections within your heater.

Q: Is this part compatible with all Beacon-Morris heaters?
A: No, it’s designed for select BRT, BRU, BTU, and BST Series models.

Q: Can I install this myself?
A: It’s best installed by a licensed HVAC technician for electrical safety.
